Getting Started with the TEA2016DK1008

The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.

This page will guide you through the process of setting up and using the TEA2016DK1008 programming kit.

1.1 Kit Content and Packing List

The kit contents include:

• TEA20xx_SOCKET_DB1586 programming board

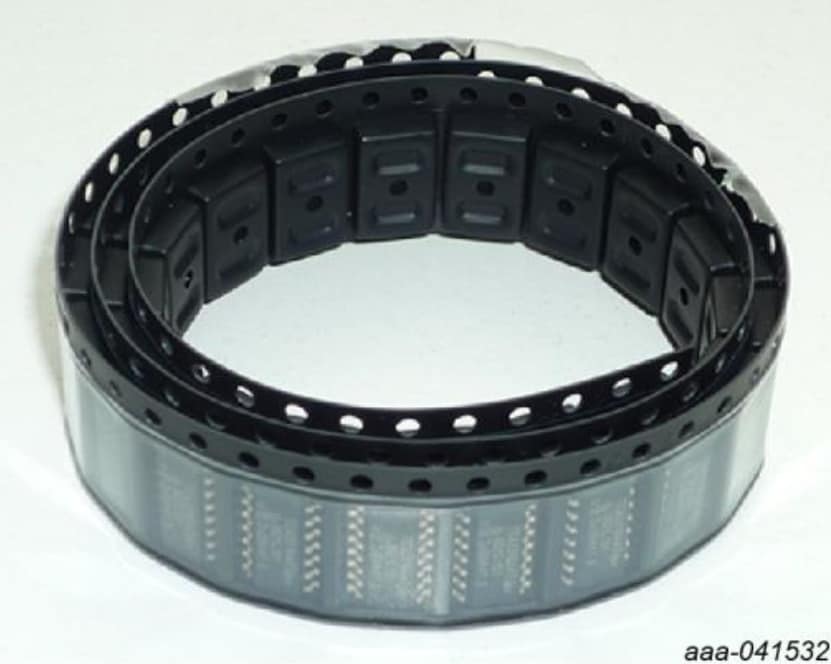

• 20 TEA2016AAT/2 dev samples
• Quick Start Guide

1.2 Additional Hardware

In addition to the kit contents, the following hardware is necessary or beneficial when working with this board.

• RDK01DB1563 USB I²C interface kit

1.3 Minimum System Requirements

This evaluation board requires a Windows PC workstation. Meeting these minimum specifications should produce great results when working with this evaluation board:

• Windows OS
• USB connection

1.4 Software

Installing software is necessary to work with this evaluation board. All listed software is available on the evaluation board's information page at NXP or from the provided link.

• TEA2016 Ringo software with GUI
