The kit contains all necessary components to enable the 15WAUTOS2 board for wireless charging capability.

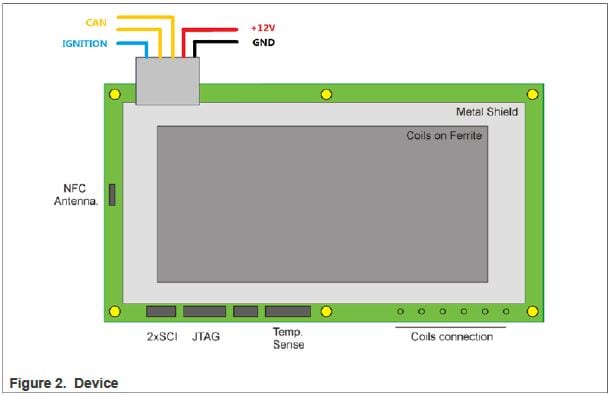

The WCT board is connected to the system by the main power connector. It comprises of the automotive battery
connection
(red wire = +12 V line, black wire = GND line), the CAN connection (yellow wires), and the IGNITION (blue wire). The
connectors at the bottom edge of the board provide JTAG
connection for programming and debugging,
2xSCI
for the
FreeMASTER tool connection for the debug option and console connection and the temperature connector and backup
touch
sense connector are placed at the edge of the board. The thermal resistor circuits can be used to develop the
temperature sensing and protection.
Something went wrong! Please try again.
To set up the hardware for FreeMASTER and Console communication, perform the following steps:
J5
according to the SCH signal
pin position. The two channels of UART are for different purposes: FreeMASTER and
Console.Something went wrong! Please try again.
