LPCXpresso Development Board for LPC5460x MCUs

OM13092 Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

This board is no longer in production. The replacement for this board is the OM13098

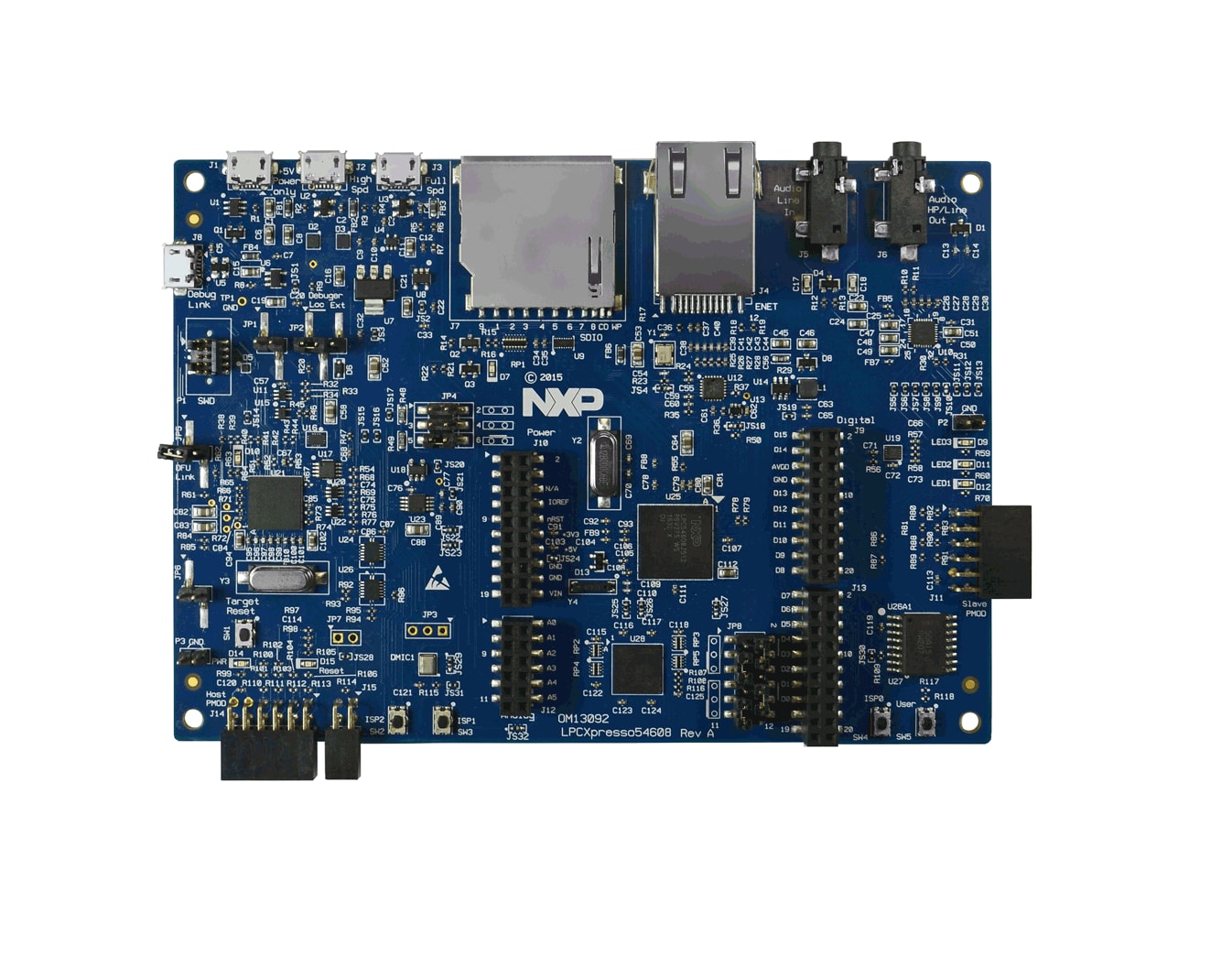

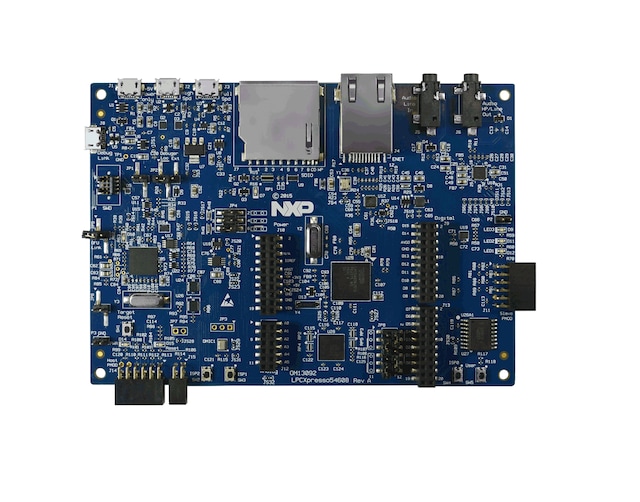

The LPCXpresso54608 board provides a powerful and flexible platform for easy evaluation of the LPC54600 family of microcontrollers. This board is an LPCXpresso V3 style, the latest generation of the original and highly successful LPCXpresso board family. These boards provide Arduino UNO compatible shield connectors with additional expansion ports around the Arduino footprint and also a PMod/host interface port. These boards feature an on-board LPC-Link2 debug probe based on the LPC4322 MCU for a performance debug experience over high speed USB, with easy firmware update options to support CMSIS-DSP or a special version of J-link OBD from SEGGER. The board can also be used with an external debug probe such as those from SEGGER and P&E

The LPC54000 series is fully supported by NXP’s MCUXpresso suite of free software and tools, which include an Eclipse-based IDE, configuration tools and extensive SDK drivers/examples available at https://mcuxpresso.nxp.com. MCUXpresso SDK includes project files for use with IDEs from lead partners Keil and IAR, and these IDEs are also fully supported by the MCUXpresso pin, clock and peripheral configuration tools.

The LPCXpresso54608 board includes an extensive set of connectors and on-board peripherals to enable full evaluation of the target MCU and development of highly functional prototypes. The on-board peripherals are complemented by a set of drivers and examples in the MCUXpresso SDK.

Product Details

Features

Processors

  • LPC54608 Arm® Cortex®-M4 running at up to 220 Mhz
  • 512KB of flash and 200KB SRAM on chip
  • TFBGA180 package

Board Memory

  • 128 MB Micron MT25QL128 Quad-SPI flash
  • 16 MB Micron MT48LC8M16A2B4 SDRAM
  • Full-size SD/MMC card slot

Debug Capabilities

  • LPC-Link2 debug high speed USB probe with VCOM port
  • I2C and SPI USB bridging to the LPC device via LPC-Link2 probe
  • SWO trace support (MCUXpresso IDE)
  • Target microcontroller power measurement
  • Debug connector to allow debug of target microcontroller using an external probe

Expansion Connectors

  • Arduino UNO expansion
  • PMOD expansion

User Interface

  • ISP, Reset and User buttons for easy testing of software functionality
  • Tri-Color and user LEDs
  • 272x480 color LCD with capacitive touchscreen display

Connectivity

  • High and full speed USB ports with micro A/B connector for the host or device functionality
  • 10/100 Mbps Ethernet (RJ45 connector)

Sensors

  • NXP MMA8652FCR1 accelerometer

Audio

  • Knowles SPH0641LM4H digital microphone
  • Stereo audio codec

More

Buy Options

OM13092-Image

Click to expand

  • OM13092
    Active

  • LPCXpresso Development Board for LPC5460x MCUs.
