Design Simulator Environment for MC33816 PSC - Standard

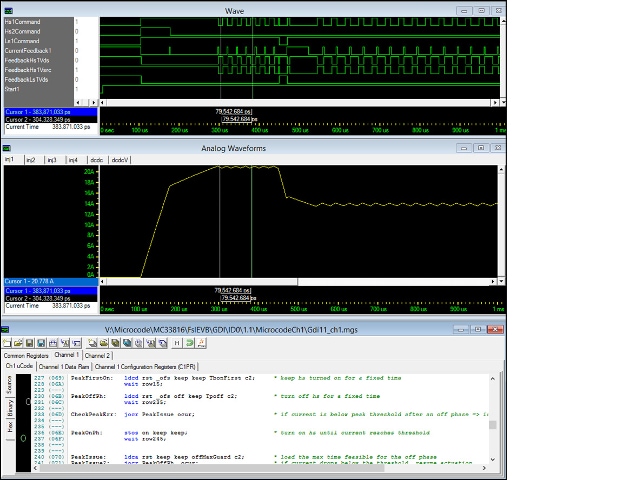

The ASA-33816-STD is an integrated design/simulation environment for the firmware required by the MC33816 family of NXP® programmable solenoid controllers (PSC). Starting with a specification for new/updated software, a software developer can use ASA-33816-STD to create a new project, implement the specification in firmware suited to the smart driver, have the PSC simulator compile the code into machine code, specify simulation commands and feedback, simulate the firmware behavior, correct errors (debug), and release the compiled code for inclusion into system software.
Note: ASA-33816-BEV is a 30-day trial version of the integrated design/simulation tool for developing microcode and register configurations for the MC33816. This trial version contains all the functionality of the standard version (ASA-33816-STD)
Software Details
Features
- Simulates firmware behavior without the need for hardware
- Step by step multi-core debugging
- Built-in assembler (external assembler also supported)
- Built-in micro code editor
- Supports custom definitions for driver loads
- Assembled code can be downloaded directly to hardware for verification
- Online downloadable documentation
- Includes 12 month technical support
- Free 30-day evaluation version available
- A purchased version of the simulator allows one copy to be downloaded and installed on your computer
Supported Devices
- MC33816: SD6 Programmable Driver for Solenoid Control
System Requirements
- 1.8 GHz Pentium® compatible processor or better
- 1 GB RAM
- 20 MB hard disk space
- Window 7, 8, or 8.1
