GUI for MC34931 and MC33931 Brushed DC Motor Drivers

GUI-BRUSHED-DC-MOTOR-CONTROL

Roll over image to zoom in

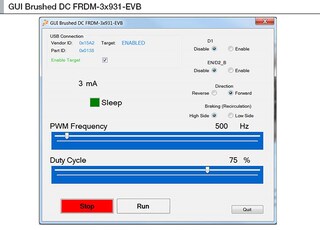

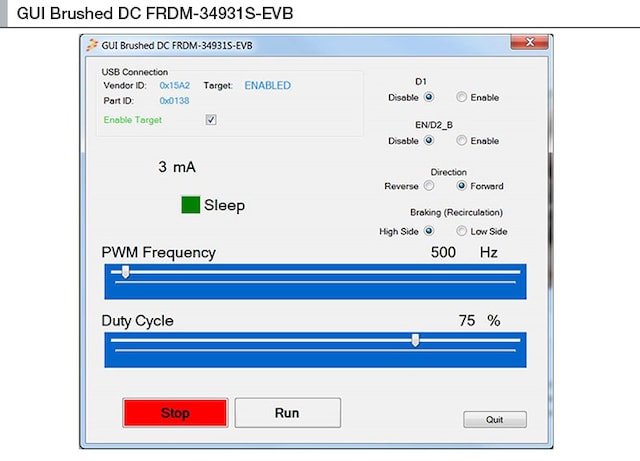

The Graphical User Interface (GUI) comes in 3 versions, one each for FRDM-34931S-EVB, FRDM-34931-EVB and FRDM-33931-EVB. The GUI works with the board in conjunction with FRDM-KL25Z connected to the PC via a USB cable.

The GUI enables easy access to MCU I/Os controlling the PWM frequency, duty cycle, enabling/disabling while monitoring status flag pin for undervoltage, short circuit and over-temperature events as well as real time load current for implementing advanced diagnostics. Please refer to the user’s guide for accessing the procedure to install and use the GUI.

Features

  • Enables single click motor start and stop
  • Provides easy access to PWM frequency control
  • Allows high resolution duty cycle control for controlling the motor speed smoothly
  • Enabling/disabling of outputs
  • Features direction control with options for dynamic braking (recirculation) while switching
  • Monitoring of status flag pin for undervoltge, short circuit and over-temperature events
  • Real time load current monitoring for implementing advanced diagnostics

Supported Devices

  • MC33931: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 11 kHz
  • MC34931: MC34931/S H-Bridge, Brushed DC Motor Driver, 5-36 V, 5 A, 11 kHz/20 kHz
