Developer Studio for PT2000 Programmable Solenoid Controller

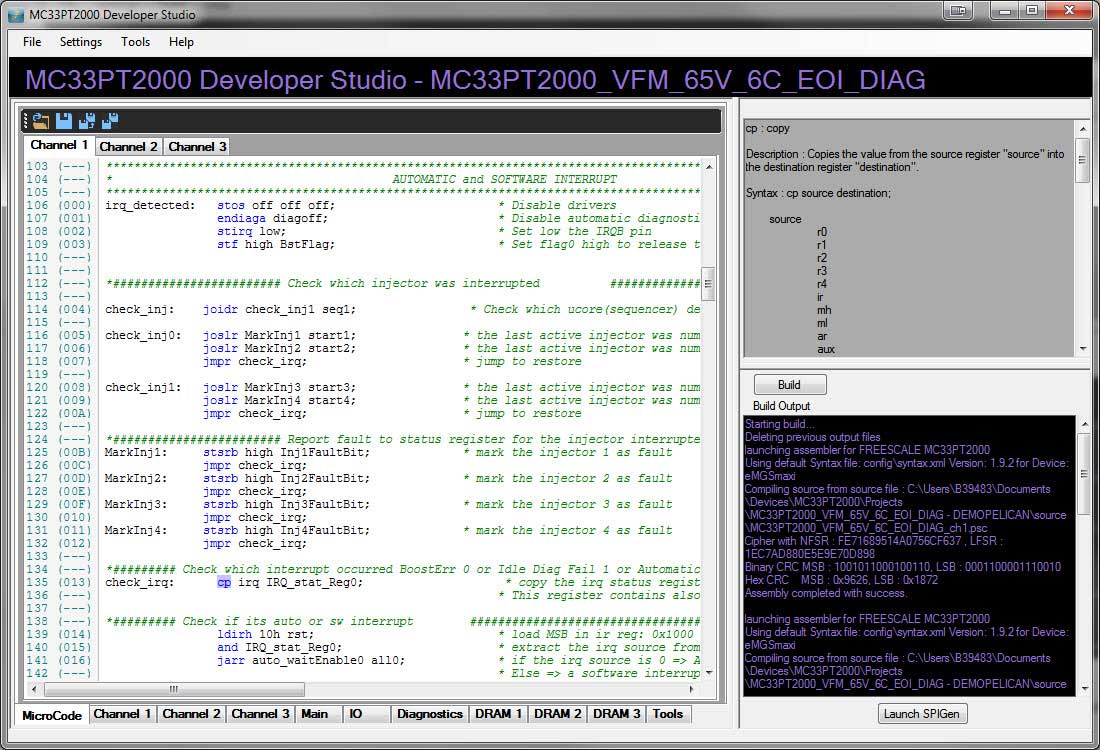

MC33PT2000 Developer Studio is a Windows application created to streamline the development of microcode for the MC33PT2000 Programmable Solenoid Controller. MC33PT2000 Developer Studio allows the user to create, edit and compile source code for the MC33PT2000. The built-in microcode editor has syntax highlighting and context-sensitive help. Register and data RAM configurations can also be created and saved.
MC33PT2000 Developer Studio allows the creation of projects for different MC33PT2000 applications. All register, DRAM, source code and configuration settings can be saved to a project file and retrieved for later use. After a project set is initially created, your settings can be loaded quickly and you can start working right away. Multiple MC33PT2000 projects can be saved, making it easy to switch between different configurations.
Software Details
Features
- Built-in microcode editor with syntax highlighting and context-sensitive help
- Supports multiple projects for different MC33PT2000 applications
- Create register and DRAM configurations which are stored with the project
- Built-in assembler that can be run from the MC33PT2000 Developer Studio user interface
- Integration with SPIGen software which can be used to code RAM, data RAM, and registers on the NXP® MC33PT200 evaluation boards
- 1.8 GHz Pentium® compatible processor or better
- 1 GB RAM
- 20 MB hard disk space
- Window 7, 8, or 8.1
- Online downloadable documentation
Supported Devices
- PT2000: Programmable Solenoid Controller Gate Driver
Downloads
Quick reference to our software types.
1 download
-
Development IDEs and Build Tools
PT2000 Dev Studio IDE Install Program
Note: For better experience, software downloads are recommended on desktop.
Documentation
Quick reference to our documentation types.
2 documents
-
User Guide
PT2000SWUG, MC33PT2000 Programming Guide and Instruction Set - User’s GuideFeatured
