Design Simulator Environment for PT2000 PSC - Standard

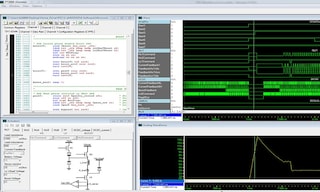

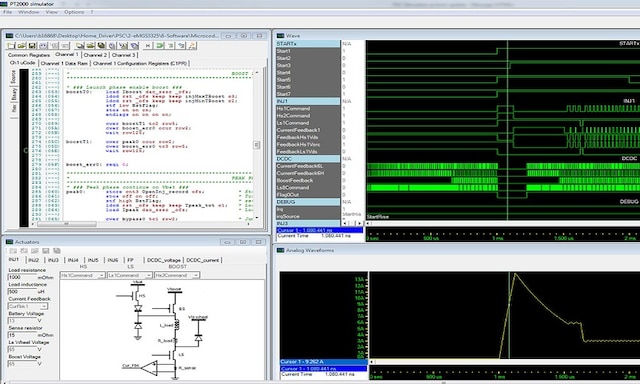

The ASA-PT2000-STD is an integrated design/simulation environment for the firmware required by the PT2000 family of NXP® programmable solenoid controllers (PSC). Starting with a specification for new/updated software, a software developer can use ASA-PT2000-STD to create a new project, implement the specification in firmware suited to the smart driver, have the PSC simulator compile the code into machine code, specify simulation commands and feedback, simulate the firmware behavior, correct errors (debug), and release the compiled code for inclusion into system software.
Software Details
Features
- Simulates firmware behavior without the need for hardware
- Step by step multi-core debugging
- Built-in assembler (external assembler also supported)
- Built-in micro code editor
- Supports custom definitions for driver loads
- Assembled code can be downloaded directly to hardware for verification
- Online downloadable documentation
- Includes 12 month technical support
- Free 30-day evaluation version available
- A purchased version of the simulator allows one copy to be downloaded and installed on your computer
Supported Devices
- PT2000: Programmable Solenoid Controller Gate Driver
System Requirements
- 1.8 GHz Pentium® compatible processor or better
- 1 GB RAM
- 20 MB hard disk space
- Window 7, 8, or 8.1
