Development platform for QN9090/30(T) wireless MCUs

QN9090-DK006 Active

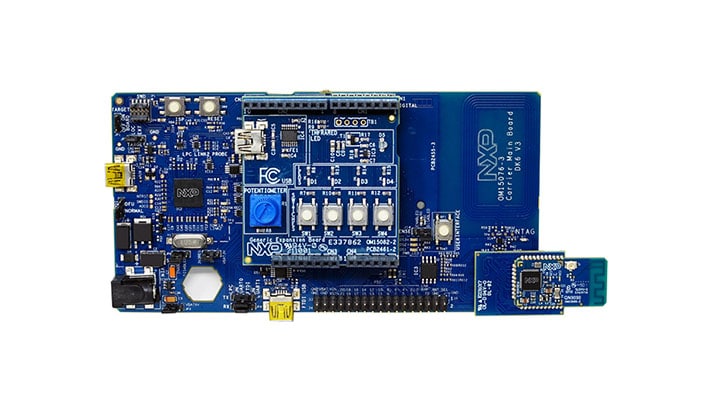

Roll over image to zoom in

The QN9090 development platform, the QN9090DK, comes with an integrated programmer and debugger along with suite of example applications showcasing standard GATT profiles in a complete software development kit (SDK). It is designed to make it as easy as possible to get started with your project based on NXP® QN9090/30 (T) Bluetooth Low Energy SOC with optional NFC technology.

Block Diagram

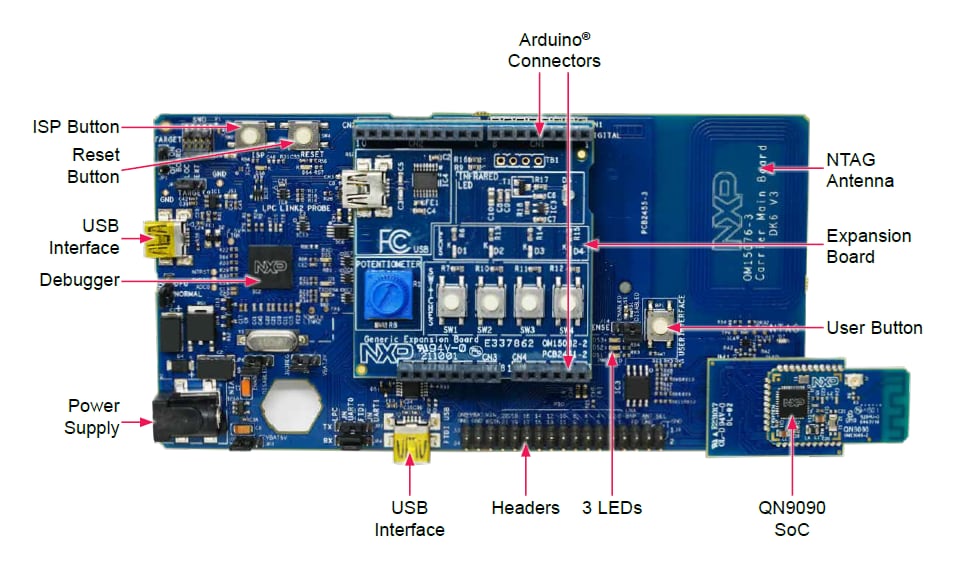

QN9090-DK006 9-board components

QN9090-DK006 9-board components
Get diagram PDF

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Features

Wireless MCU

  • Module site for QN9090 (T) Bluetooth LE 5.0 MCU with NFC NTAG

NFC

  • PCB antenna for NFC Tag

Debug

  • On-board, high-speed USB based, Link2 debug probe with ARM’s CMSIS-DAP and SEGGER J-Link protocol options.

Extensibility

  • Expansion options based on Arduino R3, plus additional expansion port pins

User Interace

  • Power, Reset, ISP and UART Tx/Rx status LEDs.
  • Target Reset, and User buttons.

Power Supply

  • On-board 3.3V from USB port, 4xAAA batteries, 2xAAA batteries (low-power mode) or external power supply options.
  • Built-in power consumption measurement

External Memory

  • 8Mb Macronix MX25R QSPI flash.

Buy Options

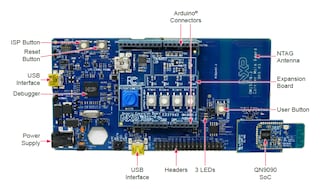

QN9090-DK006-Image

Click to expand

  • QN9090-DK006
    Active

  • Development platform for QN9090/30(T) wireless MCUs.

    • 1 mother board
    • 1 Generic daughter card
    • 1 module with mezzanine
  • $132.25 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
QN9090-001-T10-Image

Click to expand

  • QN9090-001-T10
    Active

  • Development platform for QN9090/30(T) wireless MCUs.

    • 1 module with mezzanine
  • $33.35 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
