Development Board for PN7220 NFC Controller with Two Host Configuration

PNEV7220BP2 new
Active

Roll over image to zoom in

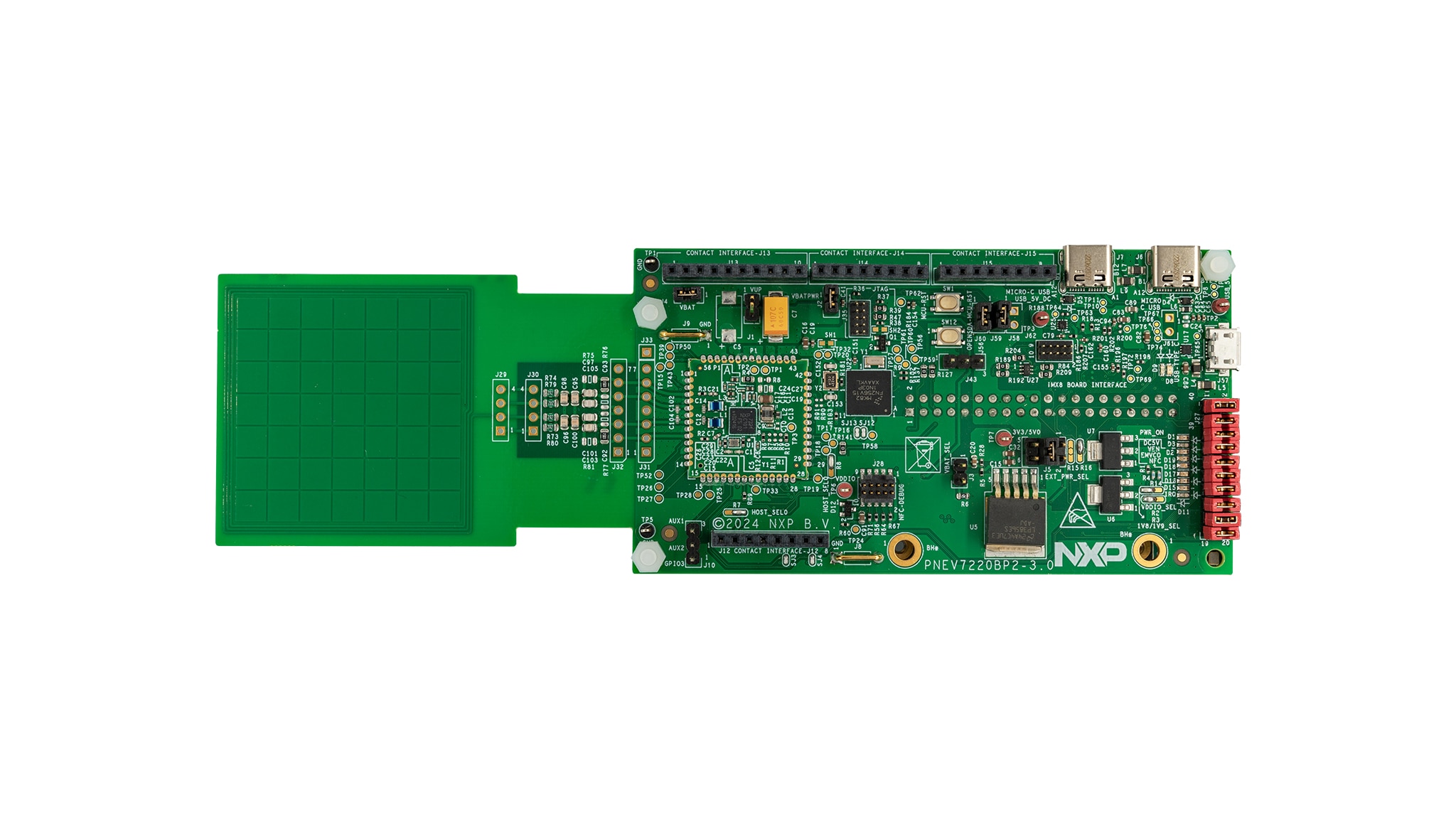

PNEV7220BP2 is a flexible development board which can be connected to an i.MX 8 MCU running Android and a dedicated security MCU. Both CPUs are connected using their own host interface based on I²C (Android host) and SPI (security MCU host). The board is implementing the PN7221 which is backward-compatible with the PN7220. PNEV7220BP2 enables quick evaluation of NFC Forum, EMVCo 3.2 and Apple ECP applications. A TDA8035 evaluation board can be connected for contact card support.

Block Diagram

Development Board for PN7220 Block Diagram

PNEV7220BP2-BD
Get diagram PDF

Supported Devices

RFID

NFC Readers

  • PN7220: PN7220: High-Performance, One-Chip NFC Controller for EMVCo 3.1 and NFC Forum Operation

Processors and Microcontrollers

K8x Secure

  • K82_150: Kinetis® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

Features

Supported NFC Forum Modes

  • Reader/writer mode: ISO/IEC 14443-A&B, FeliCa™, MIFARE 1K/4K, NFC Forum type 2/3/4A/4B/5, MIFARE card family, ISO/IEC 15693
  • Card Emulation mode: NFC Forum T4T (ISO/IEC 14443-A)

Contact Interface

  • Up to 3 contact-interface slots (with TDA8035)

Flexible Host Interface

  • Supply voltage: 1.8 V or 3.3 V
  • Host interface: ONE I²C and one SPI CPU connection for 2 CPUs
  • IRQ signal for improved synchronization
  • NCI 2.2-compliant protocol

Fast Certification

  • Contactless EMVCo 3.x L1 compliant (analog and digital)
  • NFC Forum compliant (analog and digital), device requirement CR13
  • Supported by the NFC Cockpit Configuration Tool

High-Performance NFC Controller

  • RF transmitter supply voltage: 2.4 V to 5.7 V
  • Max RF driver current with DC/DC active: 350 mA (2 W)
  • Low-power card detection

OS Support

  • Android 13
  • Firmware updates for easy maintenance

Temperature

  • Temperature range: -40 °C to +105 °C

Package

  • Standard VFBGA64 package (4.5 x 4.5 mm)

More

Buy Options

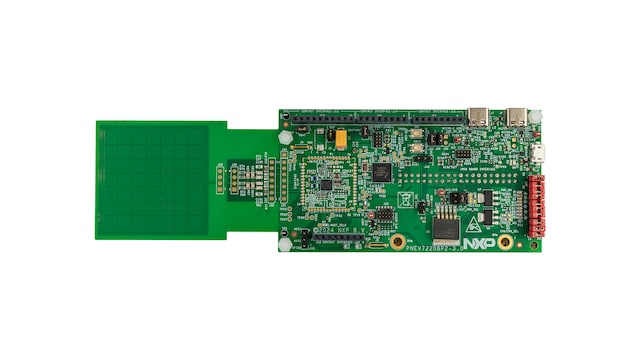

PNEV7220BP2-Image

Click to expand

  • PNEV7220BP2
    Active

  • Development Board for PN7220 NFC Controller with Two Host Configuration .

  • Development Board for PN7220 NFC controller, two host configuration

  • $300.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 18
    • Shipping: Normally ships 1-2 business days
ADD TO CART
