Development Board for PN7220 NFC Controller for EMVCo 3.1 and NFC Forum Operation

PNEV7220BP1
Active

Roll over image to zoom in

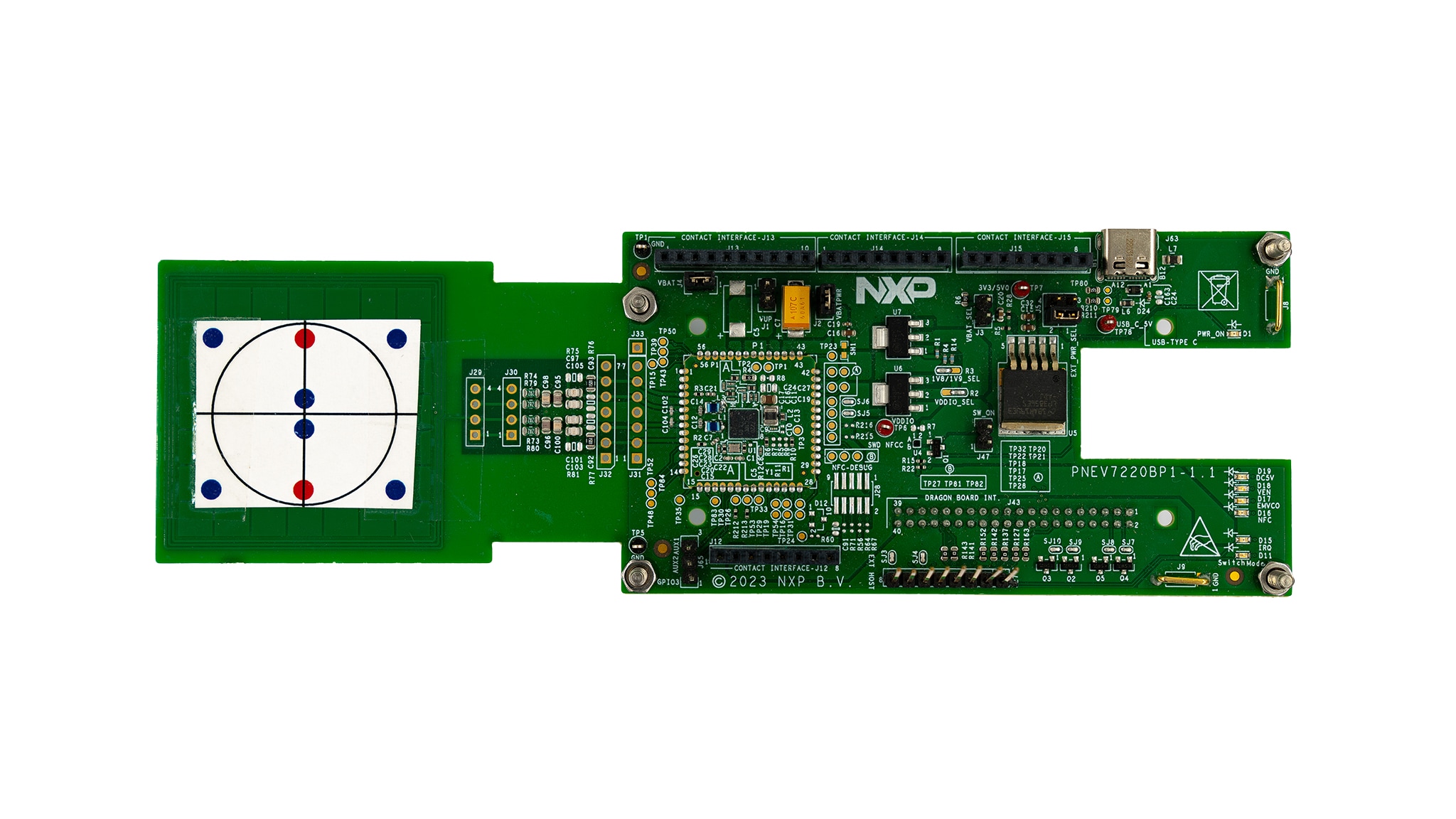

PNEV7220BP1 is a flexible and easy-to-use development board which can be connected to a i.MX 8 microcontroller running Android. The PNEV7220BP1 supports the design cycle of contactless payment terminals based on the NFC controller PN7220. NFC Forum and EMVCo 3.x applications can be quickly evaluated.

With PN7220, POS manufacturers can expand their products to the new SoftPOS payment device category. With an EMV Level 1-compliant performance, PN7220 provides high performance to the user, while the NCI interface offers seamless integration into Android.

Block Diagram

PNEV7220BP1

PNEV7220BP1 Block Diagram
Get diagram PDF

Supported Devices

RFID

NFC Readers

  • PN7220: PN7220: High-Performance, One-Chip NFC Controller for EMVCo 3.1 and NFC Forum Operation

Features

Supported NFC Forum Modes

  • Reader/writer mode: ISO/IEC 14443-A&B, FeliCa™, MIFARE 1K/4K, NFC Forum type 2/3/4A/4B/5, MIFARE card family, ISO/IEC 15693
  • Card Emulation mode: NFC Forum T4T (ISO/IEC 14443-A)

Contact Interface

  • Up to 3 contact-interface slots (with TDA8035)

Flexible Host Interface

  • Supply voltage: 1.8 or 3.3 V
  • Host interface: I2C (up to 3.4 Mb/s) for 1 CPU connection or I2C and SPI (up to 15 Mb/s) for 2 CPUs
  • IRQ signal for improved synchronization
  • NCI 2.2-compliant protocol

Fast Certification

  • Contactless EMVCo 3.1 L1 compliant (analog and digital)
  • NFC Forum compliant (analog and digital), device requirement CR13
  • Supported by the NFC Cockpit Configuration Tool

High-Performance NFC Controller

  • RF transmitter supply voltage: 2.4 to 5.7 V
  • Max RF driver current with DC/DC active: 350 mA (2 W)
  • Low-power card detection

OS Support

  • Android 13
  • Firmware updates for easy maintenance

Temperature

  • Temperature range: -40 to +105 °C

Package

  • Standard VFBGA64 package (4.5 x 4.5 mm)

More

Buy Options

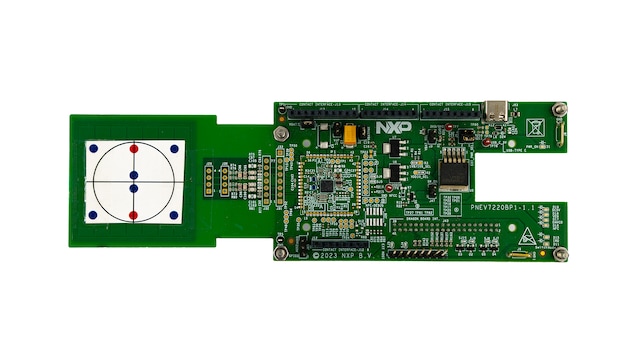

PNEV7220BP1-Image

Click to expand

  • PNEV7220BP1
    Active

  • Development Board for PN7220 NFC Controller for EMVCo 3.1 and NFC Forum Operation.

    • Customer development board with PN7220
    • Antenna
    • Connectivity to Android host system
  • $280.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
