PN5180 NFC Frontend Development Board for POS Terminal Applications

OM25180FDK Active

Roll over image to zoom in

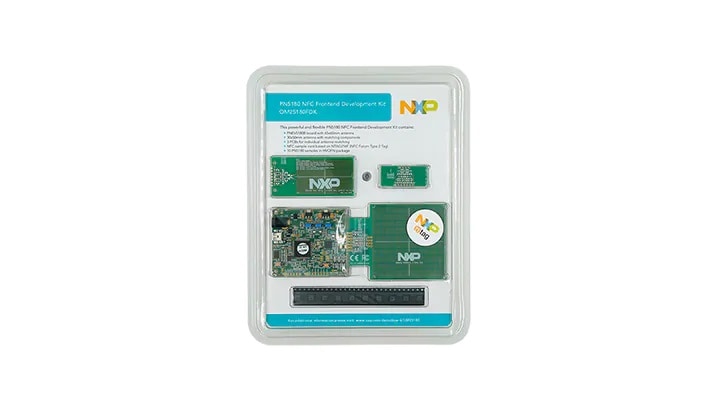

OM25180FDK is a flexible and easy to use frontend development kit for PN5180, which is mainly used for POS terminal applications. It contains a PNEV5180B board with 65 mm x 65 mm antenna optimized for EMVCo applications, a 30 mm x 50 mm antenna with matching components optimized for NFC applications, three small antenna matching PCBs (approx. 30 mm x 50 mm sized) for implementation of a custom antenna matching circuit, an NFC sample card based on NTAG®216F (NFC Forum Type 2 Tag) and PN5180 samples in HVQFN package.

Product Details

Features

Wireless

  • Highest RF performance
  • Full compliance with all standards relevant to NFC, contactless operation, and EMVCo

Power Management

  • Onboard Dynamic Power Control (DPC) for optimized RF performance
  • Low-power card detection
  • Active load modulation, boosting small antenna performance in Card Emulation Mode
  • Artificial damping of the RF field in the middle of the antenna simulating the presence of a PCB or display to demonstrate the expected performance

Buy Options

PNEV5180B-Image

Click to expand

  • PNEV5180B
    Active

  • PN5180 NFC Frontend Development Board for POS Terminal Applications.

  • For a quantity of 1
Order from distributors
OM25180FDK-Image

Click to expand

  • OM25180FDK
    Active

  • OM25180FDK Frontend Development Kit (FDK).

  • $190.44 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
