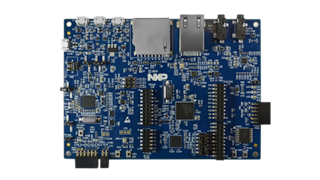

LPCXpresso54S018 Development Board

LPC54S018-EVK Active

Roll over image to zoom in

The LPC54S018-EVK development board has been designed to enable evaluation of and prototyping with the LPC54S0xx MCU devices leveraging the high-performance Arm® Cortex®-M4 core and the advanced security capabilities featured in the LPC54S0xx MCU family. The board is comprised of target LPC54S018 device with an onboard, CMSIS-DAP / SEGGER® J-Link compatible debug probe. The onboard probe is compatible with MCUXpresso IDE and other leading toolchains such as those from Keil™ and IAR®. The board is also equipped with a standard 10-pin header enabling the use of 3rd party to debug probes. In addition to standard LPCXpresso V3 features, this board includes a complete set of peripheral interfaces to enable developers to fully explore the capabilities of LPC54S0xx devices.

MCUXpresso configuration tools and extensive SDK drivers/examples, including the examples for the security features supported in the LPC54S0xx MCU devices, are available for the board at mcuxpresso.nxp.com.

Product Details

Supported Devices

Processors and Microcontrollers

LPC54000 Arm Cortex-M4

  • LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • LPC54S018

Memory

  • Winbond 128 Mb W9812G6JB-6I SDRAM
  • Full-size SD/MMC card slot

Connectivity

  • High and full speed USB ports with micro A/B connector for host or device functionality
  • 10/100Mbps Ethernet (RJ45 connector)

Power Management

  • Built-in power consumption measurement for target LPC54018 MCU

Debug

  • Onboard, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • UART and SPI port bridging from LPC54S018 target to USB via the onboard debug probe
  • Support for external debug probe

Sensors

  • NXP MMA8652FCR1 accelerometer

Display

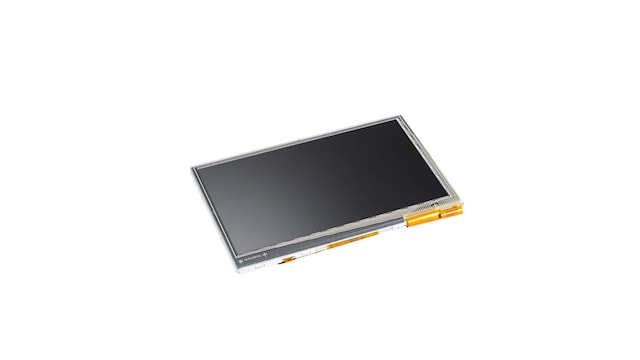

  • Optional 480x272 capacitive touch TFT LCD screen (available separately)

Audio

  • Knowles SPH0641LM4H digital microphone Stereo audio codec with line in/out

Expansion Port

  • Multiple Expansion options, including Arduino® UNO and PMod

User Components

  • 3 x user LEDs, plus Reset, ISP (3), and user buttons

Buy Options

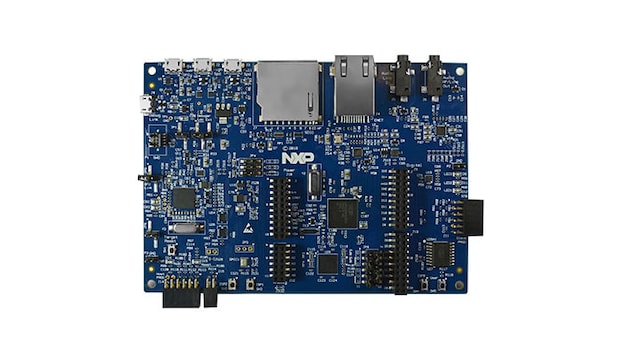

LPC54S018-EVK-Image

Click to expand

  • LPC54S018-EVK

  • LPCXpresso54S018 Development Board.

    • 1x LPCXpresso54S018 Development Board, pre-loaded with demonstration program showing emWIN example.
