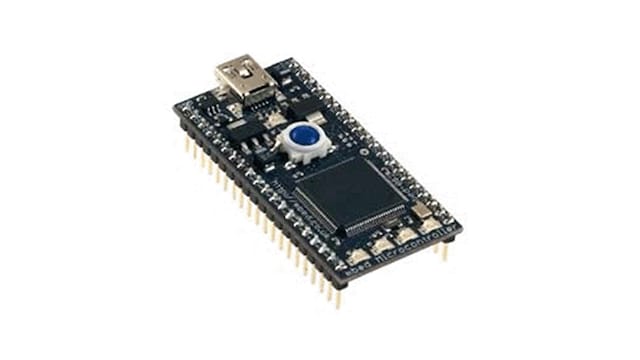

Arm Mbed LPC1768 Board

OM11043 Active

Roll over image to zoom in

The Arm LPC1768 Board allows you to quickly and easily evaluate the LPC176x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M3 project.

Populated with the LPC1768 to demonstrate LPC176x features, the LPC1768 board allows the evaluation of the high-level integration and low power consumption of the LPC1768.

Order Number: OM11043

Product Details

Supported Devices

Processors and Microcontrollers

LPC1700 Arm Cortex-M3

  • LPC1763FBD100: 256 KB Flash, 64 KB SRAM, No CAN LQFP100 Package
  • LPC1764FBD100: 128 KB Flash, 32 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1765FBD100: 256 KB Flash, 64 KB SRAM, USB, LQFP100 Package
  • LPC1765FET100: 256 KB Flash, 64 KB SRAM, USB, TFBGA100 Package
  • LPC1766FBD100: 256 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1767FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, No CAN LQFP100 Package
  • LPC1768FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1768FET100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, TFBGA100 Package
  • LPC1769FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package

Features

Tools and OS Support

  • Easy-to-use online tools
  • Drag-and-drop programming, with the board represented as a USB drive
  • Convenient form-factor: 40-pin DIP, 0.1-inch pitch

Buy Options

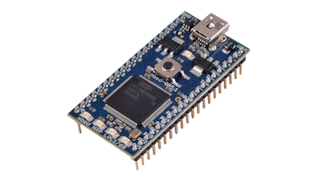

OM11043-Image

Click to expand

  • OM11043

  • mbed LPC1768 Board.

  • Kit Contains

    • Arm Mbed LPC1768 Board
    • USB connector cable
    • Setup Guide
  • $56.35USD
  • For a quantity of 1
    • Availability: Pending stock
ADD TO CART
