24-bit Symphony® DSP

DSP56371
NRND
  • This page contains information on a product that is not recommended for new designs.

Targeted at audio/video (AV) receivers, home theaters, surround sound decoders, mini stereo systems, digital TV audio systems and automotive audio systems, the DSP56371 is designed to meet the demands of audio electronics system designers by supporting the latest generation decoders, such as Dolby®, THX® and DTS®, among others.

The DSP56371 is capable of running delay management, bass management and DTS96/24 while using less than half of the DSP's computing capability. This enables designers to add system enhancements that the discerning audio consumer expects. The performance increase is made possible through the use of a higher core frequency, fewer memory wait states, a larger amount of on-chip static random access memory (SRAM) and the addition of an enhanced filter coprocessor (EFCOP). By removing the need for external high-speed SRAM and making smaller, less complex boards, the DSP56371 is performance-rich and cost-effective.

Product Details

Block Diagram

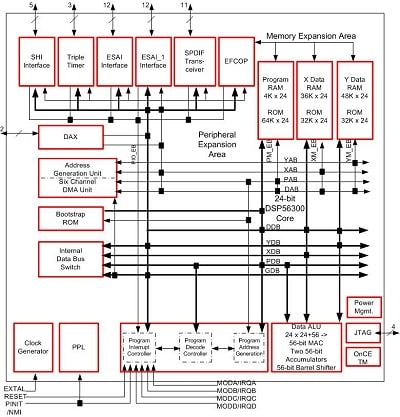

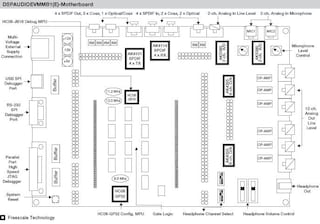

DSP56371 Block Diagram

DSP56371 Block Diagram
Get diagram PDF

Features

  • Multimode, multichannel decoder software functionality
  • Dolby and/or DTS license required
    • Prologic II
    • DTS Neo6
    • DTS 2.3
    • WMA
    • AAC
    • Dolby headphone
    • Dolby virtual speaker
  • Digital audio post-processing capabilities
    • Parametric EQ
    • Tone control or graphic EQ
    • Dynamic range compression
    • Loudness
    • Bass boost
    • Speaker comp
    • Fade/balance
    • Music search
    • Compression
  • DSP core
    • 1.25-volt core with a 3.3-volt peripheral I/O
    • Object code compatible with the DSP56000 core with highly parallel instruction set
    • Data ALU with a 24 x 24-bit multiplier-accumulator and a 56-bit barrel shifter; 16-bit arithmetic support
    • Program control with position-independent code support and instruction cache support
    • Six-channel DMA controller
    • PLL based clocking with a wide range of frequency multiplications (1 to 255), predivider factors (1 to 3) and power saving clock divider (2I: i=0 to 7); reduces clock noise
    • Internal address tracing support and OnCE for hardware/software debugging
    • JTAG port
    • Very low-power CMOS design, fully static design with operating frequencies down to DC
    • Stop and wait low-power standby modes
    • EFCOP running concurrently with core
  • On-chip memory configuration
    • 16K–48K x 24-bit Y-data RAM and 32K x 24-bit Y-data ROM
    • 36K x 24-bit X-data RAM and 32K x 24-bit X-data ROM
    • 28K–64K x 24-bit program and bootstrap ROM
    • 4K x 24-bit program RAM
    • Various memory switches available
  • Peripheral modules
    • Enhanced serial audio interface (ESAI_0): up to four receivers and six transmitters, leader or follower. I²S, Sony, AC97, network and other programmable protocols
    • Serial host interface (SHI): SPI and I²C protocols, 10-word receive FIFO, support for eigth, 16 and 24-bit words.
    • Triple timer module
    • Digital audio transmitter (DAX): one serial transmitter capable of supporting the SPDIF, IEC958, CP-340 and AES/EBU digital audio formats
    • Pins of unused peripherals (except SHI) may be programmed as GPIO lines

More

Buy/Parametrics

4 results

Exclude 4 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Package Type

Package Termination Count

DSPA56371AF150
Data Sheet

Not Recommended for New Designs

—

LQFP80

80

DSPB56371AF150
Data Sheet

Not Recommended for New Designs

1K @ US$17.75

LQFP80

80

DSPB56371AF180
Data Sheet

Not Recommended for New Designs

1K @ US$18.32

LQFP80

80

DSPC56371AF150
Data Sheet

Not Recommended for New Designs

—

LQFP80

80

N true 0 PSPDSP56371en 35 Application Note Application Note t789 14 Application Note Software Application Note Software t783 1 Brochure Brochure t518 2 Data Sheet Data Sheet t520 1 Errata Errata t522 1 Fact Sheet Fact Sheet t523 5 Product Numbering Scheme Product Numbering Scheme t524 1 Reference Manual Reference Manual t877 4 Selector Guide Selector Guide t528 2 User Guide User Guide t792 4 en_US en_US en Data Sheet Data Sheet 1 1 4.1 English DSP56371 24-bit digital signal processor (DSP) 1063989138200733448045 PSP 1.2 MB None None documents None 1063989138200733448045 /docs/en/data-sheet/DSP56371.pdf 1219995 /docs/en/data-sheet/DSP56371.pdf DSP56371 documents N N 2016-10-31 DSP56371 Data Sheet /docs/en/data-sheet/DSP56371.pdf /docs/en/data-sheet/DSP56371.pdf Data Sheet N 980000996212993340 2023-07-12 pdf N en Jan 17, 2007 980000996212993340 Data Sheet Y N DSP56371 Data Sheet Reference Manual Reference Manual 4 2 6 English Updates to the DSP56300 Family Manual, Rev. 5 1156269245741719769816 PSP 52.4 KB None None documents None 1156269245741719769816 /docs/en/reference-manual/DSP56300FMAD.pdf 52410 /docs/en/reference-manual/DSP56300FMAD.pdf DSP56300FMAD documents N 2006-08-22 DSP56300 Family Manual Addendum /docs/en/reference-manual/DSP56300FMAD.pdf /docs/en/reference-manual/DSP56300FMAD.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Sep 19, 2008 500633505221135046 Reference Manual Y N DSP56300 Family Manual Addendum 3 1 English The NXP DSP Linker is a program that processes relocatable object files produced by the NXP DSP assembler, generating an absolute executable file which can be loaded directly into one of the NXP DSP simulators, downloaded to an application development system, or converted to NXP S-record format for PROM burning. 1201644826178712390484 PSP 556.6 KB None None documents None 1201644826178712390484 /docs/en/reference-manual/DSPLNKRRM.pdf 556598 /docs/en/reference-manual/DSPLNKRRM.pdf DSPLNKRRM documents N 2008-01-29 NXP<sup>&#174;</sup> DSP Linker/Librarian Reference Manual /docs/en/reference-manual/DSPLNKRRM.pdf /docs/en/reference-manual/DSPLNKRRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jan 18, 2008 500633505221135046 Reference Manual N N NXP<sup>&#174;</sup> DSP Linker/Librarian Reference Manual 4 7 English This document provides detailed programming information for programming applications in Assembly for the DSP56xxx family of DSPs. J979269298835 PSP 955.7 KB None None documents None J979269298835 /docs/en/reference-manual/DSPASMRM.pdf 955745 /docs/en/reference-manual/DSPASMRM.pdf DSPASMRM documents N 2001-01-11 DSP Assembler Reference Manual /docs/en/reference-manual/DSPASMRM.pdf /docs/en/reference-manual/DSPASMRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf en Jan 18, 2008 500633505221135046 Reference Manual N N DSP Assembler Reference Manual 5 5 English This is the reference manual for the DSP56300 core. 1134573127960702150638 PSP 12.3 MB None None documents None 1134573127960702150638 /docs/en/reference-manual/DSP56300FM.pdf 12313935 /docs/en/reference-manual/DSP56300FM.pdf DSP56300FM documents N 2005-12-14 DSP56300 Family Manual /docs/en/reference-manual/DSP56300FM.pdf /docs/en/reference-manual/DSP56300FM.pdf Reference Manual N 500633505221135046 2025-03-08 pdf en Apr 15, 2005 500633505221135046 Reference Manual Y N DSP56300 Family Manual Application Note Application Note 14 6 0 English This document describes considerations for migrating an existing DSP563xx-based design to a Symphony<sup>&#174;</sup> DSP. 1228769677008695271063 PSP 506.4 KB None None documents None 1228769677008695271063 /docs/en/application-note/AN3653.pdf 506396 /docs/en/application-note/AN3653.pdf AN3653 documents N 2008-12-09 Considerations for Migrating Existing DSP563xx Designs to Symphony<sup>&#174;</sup>&#8482; DSPs /docs/en/application-note/AN3653.pdf /docs/en/application-note/AN3653.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 8, 2008 645036621402383989 Application Note Y N Considerations for Migrating Existing DSP563xx Designs to Symphony<sup>&#174;</sup>&#8482; DSPs 7 2 English AN1772SW.zip /secured/assets/documents/en/application-note-software/AN1772SW.zip /webapp/Download?colCode=AN1772SW&appType=license&docLang=en Efficient Compilation of Bit-Exact Applications for DSP563xx R966575622393 PSP 136.7 KB None None documents None R966575622393 /docs/en/application-note/AN1772.pdf 136664 /docs/en/application-note/AN1772.pdf AN1772 documents N 2000-08-17 Efficient Compilation of Bit-Exact Applications for DSP563xx /docs/en/application-note/AN1772.pdf /docs/en/application-note/AN1772.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 1, 2008 645036621402383989 Application Note Y N Efficient Compilation of Bit-Exact Applications for DSP563xx 8 0 English Using Symphony<sup>&#174;</sup> Studo and the DSP563xxEVM to program the DSP563xx general purpose DSPs 1216823437853734750007 PSP 111.0 KB None None documents None 1216823437853734750007 /docs/en/application-note/AN3754.pdf 110985 /docs/en/application-note/AN3754.pdf AN3754 documents N 2008-07-23 Using Symphony<sup>&#174;</sup> Studio with the DSP563xxEVM /docs/en/application-note/AN3754.pdf /docs/en/application-note/AN3754.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 23, 2007 645036621402383989 Application Note Y N Using Symphony<sup>&#174;</sup> Studio with the DSP563xxEVM 9 1 English This application note discusses a simple, low-cost method of characterizing CMOS DSP current consumption on an application board while running actual application code. U972522072230 PSP 313.7 KB None None documents None U972522072230 /docs/en/application-note/AN2013.pdf 313687 /docs/en/application-note/AN2013.pdf AN2013 documents N 2000-10-25 DSP56300 Family: Characterizing CMOS DSP Core Current for Low-Power Applications /docs/en/application-note/AN2013.pdf /docs/en/application-note/AN2013.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2005 645036621402383989 Application Note Y N DSP56300 Family: Characterizing CMOS DSP Core Current for Low-Power Applications 10 1 English This application note gives an overview of the boundary scan architecture and discusses the specific implementation of the Test Access Port (TAP) in the NXP DSP56300 family of DSPs. L972936059015 PSP 686.3 KB None None documents None L972936059015 /docs/en/application-note/AN2074.pdf 686274 /docs/en/application-note/AN2074.pdf AN2074 documents N 2000-10-30 DSP56300 JTAG Examples /docs/en/application-note/AN2074.pdf /docs/en/application-note/AN2074.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 2, 2005 645036621402383989 Application Note Y N DSP56300 JTAG Examples 11 0 English DSP56300/DSP56600: VSL Instruction Use A967832263788 PSP 1.1 MB None None documents None A967832263788 /docs/en/application-note/APR40.pdf 1106337 /docs/en/application-note/APR40.pdf APR40 documents N 2000-09-01 DSP56300 Implementing Viterbi Decoders Using the VSL Instruction on DSP Families DSP56300 and DSP56600 /docs/en/application-note/APR40.pdf /docs/en/application-note/APR40.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2001 645036621402383989 Application Note Y N DSP56300 Implementing Viterbi Decoders Using the VSL Instruction on DSP Families DSP56300 and DSP56600 12 0 English Using the DSP56300 Direct Memory Access Controller I967832217152 PSP 2.0 MB None None documents None I967832217152 /docs/en/application-note/APR23.pdf 1982059 /docs/en/application-note/APR23.pdf APR23 documents N 2000-09-01 Using the DSP56300 Direct Memory Access Controller /docs/en/application-note/APR23.pdf /docs/en/application-note/APR23.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2001 645036621402383989 Application Note Y N Using the DSP56300 Direct Memory Access Controller 13 0 English Application Optimization for the DSP56300/DSP56600 Digital Signal Processors N967832208239 PSP 1.8 MB None None documents None N967832208239 /docs/en/application-note/APR20.pdf 1842141 /docs/en/application-note/APR20.pdf APR20 documents N 2000-09-01 Application Optimization for the DSP56300/DSP56600 Digital Signal Processors /docs/en/application-note/APR20.pdf /docs/en/application-note/APR20.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2001 645036621402383989 Application Note Y N Application Optimization for the DSP56300/DSP56600 Digital Signal Processors 14 0 English Implementing AC-link with ESAI M967832249526 PSP 1.3 MB None None documents None M967832249526 /docs/en/application-note/APR37.pdf 1310491 /docs/en/application-note/APR37.pdf APR37 documents N 2000-09-01 DSP56300 Implementing AC-link With ESAI /docs/en/application-note/APR37.pdf /docs/en/application-note/APR37.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2001 645036621402383989 Application Note Y N DSP56300 Implementing AC-link With ESAI 15 0 English Interfacing the DSP560xx/DSP563xx Families to the Crystal CS4226 Multichannel Codec J967832244245 PSP 1.6 MB None None documents None J967832244245 /docs/en/application-note/APR36.pdf 1565556 /docs/en/application-note/APR36.pdf APR36 documents N 2000-09-01 DSP56300 Interfacing the DSP560xx/DSP563xx Families to the Crystal CS4226 Multichannel Codec /docs/en/application-note/APR36.pdf /docs/en/application-note/APR36.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2001 645036621402383989 Application Note Y N DSP56300 Interfacing the DSP560xx/DSP563xx Families to the Crystal CS4226 Multichannel Codec 16 0 English DSP56300 Assembly Code Development Using the Motorola Toolsets S966575646574 PSP 450.7 KB None None documents None S966575646574 /docs/en/application-note/APR30.pdf 450672 /docs/en/application-note/APR30.pdf APR30 documents N 2000-08-17 DSP56300 Assembly Code Development Using the NXP<sup>&#174;</sup> Toolsets /docs/en/application-note/APR30.pdf /docs/en/application-note/APR30.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 5, 2001 645036621402383989 Application Note Y N DSP56300 Assembly Code Development Using the NXP<sup>&#174;</sup> Toolsets 17 1 English DSP56xxx: Designing Nonrealtime Test Software L967832238917 PSP 1.6 MB None None documents None L967832238917 /docs/en/application-note/APR35.pdf 1624149 /docs/en/application-note/APR35.pdf APR35 documents N 2000-09-01 DSP56300 Designing the DSP56xxx Software for Nonrealtime Tests File I/O Uisng SIM56xxx and ADS56xxx /docs/en/application-note/APR35.pdf /docs/en/application-note/APR35.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 28, 2001 645036621402383989 Application Note Y N DSP56300 Designing the DSP56xxx Software for Nonrealtime Tests File I/O Uisng SIM56xxx and ADS56xxx 18 0 English This application note is designed to help customers use the DSP5636x Family of digital signal processors in their digital audio applications. In particular, customers who use them to decode home theatre digital surround signals, such as Dolby Digital (AC3) and Digital theatre sound (DTS). U966575644548 PSP 555.8 KB None None documents None U966575644548 /docs/en/application-note/AN1855.pdf 555792 /docs/en/application-note/AN1855.pdf AN1855 documents N 2000-08-17 AN1855 Download and Checksum Programs for Use with the DSP5636x Family /docs/en/application-note/AN1855.pdf /docs/en/application-note/AN1855.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 17, 2000 645036621402383989 Application Note Y N AN1855 Download and Checksum Programs for Use with the DSP5636x Family 19 1.0 English 1064850948143701770948 PSP 822.3 KB None None documents None 1064850948143701770948 /docs/en/application-note/AN1848.pdf 822325 /docs/en/application-note/AN1848.pdf AN1848 documents N 2003-09-29 ENHANCED SERIAL AUDIO INTERFACE (ESAI) /docs/en/application-note/AN1848.pdf /docs/en/application-note/AN1848.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 1, 2000 645036621402383989 Application Note N N ENHANCED SERIAL AUDIO INTERFACE (ESAI) User Guide User Guide 4 20 2 English The Symphony<sup>&#174;</sup> SoundBite is an inexpensive but feature-packed solution for audio digital signal&#13;&#10;processing based on the DSPB56371 digital signal processor. The Symphony SoundBite supports the&#13;&#10;simultaneous input and output of eight channels of analog audio or six channels of analog with digital&#13;&#10;stereo optical SP/DIF through the eight 3.5 mm stereo jacks on the board. 1202331403692717728882 PSP 69.3 KB None None documents None 1202331403692717728882 /docs/en/user-guide/DSPB56371UGQS.pdf 69328 /docs/en/user-guide/DSPB56371UGQS.pdf DSPB56371UGQS documents N 2008-02-06 Symphony<sup>&#174;</sup> SoundBite: Quick Start with Symphony Studio /docs/en/user-guide/DSPB56371UGQS.pdf /docs/en/user-guide/DSPB56371UGQS.pdf User Guide N 132339537837198660 2022-12-07 pdf en Sep 18, 2008 132339537837198660 User Guide N N Symphony<sup>&#174;</sup> SoundBite: Quick Start with Symphony Studio 21 1.1 English Use this guide to get started with cross development for the Symphony<sup>&#174;</sup> DSP Platform. 1201623626388697440691 PSP 5.2 MB None None documents None 1201623626388697440691 /docs/en/user-guide/DSPSTUDIOUG.pdf 5153469 /docs/en/user-guide/DSPSTUDIOUG.pdf DSPSTUDIOUG documents N 2008-01-29 Symphony<sup>&#174;</sup> Studio: Eclipse for Symphony DSPs User Guide /docs/en/user-guide/DSPSTUDIOUG.pdf /docs/en/user-guide/DSPSTUDIOUG.pdf User Guide N 132339537837198660 2023-06-19 pdf en Jul 29, 2008 132339537837198660 User Guide Y N Symphony<sup>&#174;</sup> Studio: Eclipse for Symphony DSPs User Guide 22 2.1 English This manual describes the DSP56371 24-bit digital signal processor (DSP), its memory, operating modes and peripheral modules. 1064419765945714868760 PSP 4.3 MB None None documents None 1064419765945714868760 /docs/en/user-guide/DSP56371UM.pdf 4291374 /docs/en/user-guide/DSP56371UM.pdf DSP56371UM documents N 2003-09-24 DSP56371 Users Guide /docs/en/user-guide/DSP56371UM.pdf /docs/en/user-guide/DSP56371UM.pdf User Guide N 132339537837198660 2022-12-07 pdf en Aug 21, 2006 132339537837198660 User Guide Y N DSP56371 Users Guide 23 1.3 English DSPAUDIOEVM Evaluation Board User's Manual I989437766286 PSP 5.1 MB None None documents None I989437766286 /docs/en/user-guide/DSP5636XEVMUM.pdf 5126045 /docs/en/user-guide/DSP5636XEVMUM.pdf DSP5636XEVMUM documents N 2001-05-09 DSP5636XEVMUM User Manual /docs/en/user-guide/DSP5636XEVMUM.pdf /docs/en/user-guide/DSP5636XEVMUM.pdf User Guide N 132339537837198660 2022-12-07 pdf en Oct 1, 2001 132339537837198660 User Guide N N DSP5636XEVMUM User Manual Application Note Software Application Note Software 1 24 2 English Software to accompany AN1772. 1212084334722720855215 PSP 111.7 KB Registration With Click-Thru Software Licensing Agreement 0yqyZ3Yw documents Extended 1212084334722720855215 /secured/assets/documents/en/application-note-software/AN1772SW.zip 111677 /secured/assets/documents/en/application-note-software/AN1772SW.zip AN1772SW documents Y N 2008-05-29 Software to accompany AN1772 /webapp/Download?colCode=AN1772SW&appType=license /secured/assets/documents/en/application-note-software/AN1772SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en May 29, 2008 789425793691620447 Application Note Software D N Software to accompany AN1772 Brochure Brochure 2 25 1 English The MSC815x and MSC825x families of DSPs are based on the industry&#8217;s highest performance DSP core, built on StarCore technology, and designed for the advanced processing requirements and capabilities of today&#8217;s high-performance, high-end industrial applications. These DSPs are based on SC3850 StarCore technology. The SC3850 DSP core has earned leading benchmark results from independent signal-processing technology analysis firm Berkeley Design Technology, Inc. (BDTI). 1292003292326731167237 PSP 4.2 MB None None documents None 1292003292326731167237 /docs/en/brochure/BYNDDSPBRO.pdf 4199464 /docs/en/brochure/BYNDDSPBRO.pdf BYNDDSPBRO documents N N 2016-10-31 Beyond DSPs StarCore MSC8xxx and DSP56K Families - Brochures /docs/en/brochure/BYNDDSPBRO.pdf /docs/en/brochure/BYNDDSPBRO.pdf Brochure N 712453003803778552 2022-12-07 pdf N en Dec 10, 2010 712453003803778552 Brochure Y N Beyond DSPs StarCore MSC8xxx and DSP56K Families - Brochures 26 0 English In the world of audio, NXP processors are behind it all&#8212;playing the music, producing the music, mastering CDs and DVDs, and then playing back that content at movie theaters, in home theaters and in the car. NXP&#8217;s software and hardware set the benchmark for audio systems, and our long-standing and continuing partnerships with leading tool companies are an essential part of that leadership. 1179326632391703982261 PSP 2.9 MB None None documents None 1179326632391703982261 /docs/en/brochure/BRDIGIAUDIOCO.pdf 2900414 /docs/en/brochure/BRDIGIAUDIOCO.pdf BRDIGIAUDIOCO documents N N 2016-10-31 Digital Audio—Freescale Partners /docs/en/brochure/BRDIGIAUDIOCO.pdf /docs/en/brochure/BRDIGIAUDIOCO.pdf Brochure N 712453003803778552 2022-12-07 pdf N en May 15, 2007 712453003803778552 Brochure Y N Digital Audio—Freescale Partners Errata Errata 1 27 1 English DSP56371E Digital Signal Processor Silicon Errata applies to Mask 1L41N. 1066849025167732002553 PSP 93.8 KB None None documents None 1066849025167732002553 /docs/en/errata/DSP56371E.pdf 93795 /docs/en/errata/DSP56371E.pdf DSP56371E documents N 2003-10-22 DSP56371E Digital Signal Processor /docs/en/errata/DSP56371E.pdf /docs/en/errata/DSP56371E.pdf Errata N 155452329886410597 2022-12-07 pdf en Jan 25, 2004 155452329886410597 Errata N N DSP56371E Digital Signal Processor Fact Sheet Fact Sheet 5 28 2 English The new Symphony<sup>&#174;</sup> Studio software tools support the entire Symphony audio DSP family, along with all NXP DSP56300-based DSPs. By using the extensible development platform Eclipse, which is an open source industry standard, Symphony Studio provides DSP users a fresh way to develop, debug and simulate through an Integrated Development Environment (IDE). 1175522375060710730771 PSP 445.5 KB None None documents None 1175522375060710730771 /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf 445456 /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf SYMSTDIODEVTLFS documents N 2007-04-02 Symphony<sup>&#174;</sup> Studio Development Tools /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Sep 30, 2008 736675474163315314 Fact Sheet Y N Symphony<sup>&#174;</sup> Studio Development Tools 29 2 English Symphony<sup>&#174;</sup> DSPs are used throughout&#13;&#10;the entire audio chain, from the creation&#13;&#10;of the musical content to the playback of&#13;&#10;this content. 1182287263557722842738 PSP 217.8 KB None None documents None 1182287263557722842738 /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf 217830 /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf SYMFMCMPRTBLFS documents N 2007-06-19 Symphon8482; Family Comparison Table /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en May 19, 2008 736675474163315314 Fact Sheet Y N Symphon8482; Family Comparison Table 30 1 English NXP introduces the Symphony<sup>&#174;</sup> SoundBite Development Kit, designed for cost-sensitive applications and college laboratories, providing a very low-cost entry point into high-end DSP solutions. 1196907043178725477371 PSP 334.3 KB None None documents None 1196907043178725477371 /docs/en/fact-sheet/SYMSBDEVKITFS.pdf 334274 /docs/en/fact-sheet/SYMSBDEVKITFS.pdf SYMSBDEVKITFS documents N 2007-12-05 Symphony<sup>&#174;</sup>&#8482; SoundBite Development Kit /docs/en/fact-sheet/SYMSBDEVKITFS.pdf /docs/en/fact-sheet/SYMSBDEVKITFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Jan 16, 2008 736675474163315314 Fact Sheet Y N Symphony<sup>&#174;</sup>&#8482; SoundBite Development Kit 31 0 English 1153735673106693035400 PSP 99.3 KB None None documents None 1153735673106693035400 /docs/en/fact-sheet/DSP56371FS.pdf 99291 /docs/en/fact-sheet/DSP56371FS.pdf DSP56371FS documents N 2006-07-24 Symphony<sup>&#174;</sup> DSP56371 Fact Sheet /docs/en/fact-sheet/DSP56371FS.pdf /docs/en/fact-sheet/DSP56371FS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Jul 24, 2006 736675474163315314 Fact Sheet N N Symphony<sup>&#174;</sup> DSP56371 Fact Sheet 32 0 English The Suite56 DSP software development tools support the DSP56300 family of DSP products. 0zxFMzNl PSP 631.0 KB None None documents None 0zxFMzNl /docs/en/fact-sheet/SUITE56FACT.pdf 630991 /docs/en/fact-sheet/SUITE56FACT.pdf SUITE56FACT documents N 2002-07-18 Suite56 DSP Software Development Tools /docs/en/fact-sheet/SUITE56FACT.pdf /docs/en/fact-sheet/SUITE56FACT.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Mar 6, 2006 736675474163315314 Fact Sheet Y N Suite56 DSP Software Development Tools Product Numbering Scheme Product Numbering Scheme 1 33 5 English B976221675261 PSP 26.9 KB None None documents None B976221675261 /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf 26926 /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf DSPDECODERMSC documents N 2000-12-07 Audio DSP Part Decoder /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf Product Numbering Scheme N 554336734861737620 2022-12-07 pdf en Oct 14, 2005 554336734861737620 Product Numbering Scheme N N Audio DSP Part Decoder Selector Guide Selector Guide 2 34 0 English Digital Signal Processors and Controller, Quarter 2, 2009, SG1004Q22009 L1010004267257 PSP 1.1 MB None None documents None L1010004267257 /docs/en/product-selector-guide/SG1004.pdf 1146625 /docs/en/product-selector-guide/SG1004.pdf SG1004Q22009 documents N N 2016-10-31 Digital Signal Processors and Controllers, SG1004 /docs/en/product-selector-guide/SG1004.pdf /docs/en/product-selector-guide/SG1004.pdf Selector Guide N 553557935274807777 2022-12-07 pdf N en Apr 17, 2009 553557935274807777 Selector Guide Y N Digital Signal Processors and Controllers, SG1004 35 2 English Entertainment Digital Audio S1024935089586 PSP 194.3 KB None None documents None S1024935089586 /docs/en/product-selector-guide/SG2047.pdf 194252 /docs/en/product-selector-guide/SG2047.pdf SG2047 documents N 2003-07-28 ARCHIVED - SG2047 Digital Audio /docs/en/product-selector-guide/SG2047.pdf /docs/en/product-selector-guide/SG2047.pdf Selector Guide N 553557935274807777 2022-12-07 pdf en Dec 27, 2004 553557935274807777 Selector Guide N N ARCHIVED - SG2047 Digital Audio false 0 DSP56371 downloads en true 1 Y PSP Application Note 14 /docs/en/application-note/AN3653.pdf 2008-12-09 1228769677008695271063 PSP 6 Dec 8, 2008 Application Note This document describes considerations for migrating an existing DSP563xx-based design to a Symphony<sup>&#174;</sup> DSP. None /docs/en/application-note/AN3653.pdf English documents 506396 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3653.pdf Considerations for Migrating Existing DSP563xx Designs to Symphony<sup>&#174;</sup>&#8482; DSPs /docs/en/application-note/AN3653.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Considerations for Migrating Existing DSP563xx Designs to Symphony<sup>&#174;</sup>&#8482; DSPs 506.4 KB AN3653 N 1228769677008695271063 /docs/en/application-note/AN1772.pdf 2000-08-17 R966575622393 PSP 7 May 1, 2008 Application Note Efficient Compilation of Bit-Exact Applications for DSP563xx None /docs/en/application-note/AN1772.pdf English documents 136664 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1772.pdf Efficient Compilation of Bit-Exact Applications for DSP563xx /docs/en/application-note/AN1772.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N Efficient Compilation of Bit-Exact Applications for DSP563xx 136.7 KB AN1772 N R966575622393 /docs/en/application-note/AN3754.pdf 2008-07-23 1216823437853734750007 PSP 8 Jul 23, 2007 Application Note Using Symphony<sup>&#174;</sup> Studo and the DSP563xxEVM to program the DSP563xx general purpose DSPs None /docs/en/application-note/AN3754.pdf English documents 110985 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3754.pdf Using Symphony<sup>&#174;</sup> Studio with the DSP563xxEVM /docs/en/application-note/AN3754.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using Symphony<sup>&#174;</sup> Studio with the DSP563xxEVM 111.0 KB AN3754 N 1216823437853734750007 /docs/en/application-note/AN2013.pdf 2000-10-25 U972522072230 PSP 9 Oct 5, 2005 Application Note This application note discusses a simple, low-cost method of characterizing CMOS DSP current consumption on an application board while running actual application code. None /docs/en/application-note/AN2013.pdf English documents 313687 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2013.pdf DSP56300 Family: Characterizing CMOS DSP Core Current for Low-Power Applications /docs/en/application-note/AN2013.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N DSP56300 Family: Characterizing CMOS DSP Core Current for Low-Power Applications 313.7 KB AN2013 N U972522072230 /docs/en/application-note/AN2074.pdf 2000-10-30 L972936059015 PSP 10 Aug 2, 2005 Application Note This application note gives an overview of the boundary scan architecture and discusses the specific implementation of the Test Access Port (TAP) in the NXP DSP56300 family of DSPs. None /docs/en/application-note/AN2074.pdf English documents 686274 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2074.pdf DSP56300 JTAG Examples /docs/en/application-note/AN2074.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N DSP56300 JTAG Examples 686.3 KB AN2074 N L972936059015 /docs/en/application-note/APR40.pdf 2000-09-01 A967832263788 PSP 11 Oct 5, 2001 Application Note DSP56300/DSP56600: VSL Instruction Use None /docs/en/application-note/APR40.pdf English documents 1106337 None 645036621402383989 2022-12-07 /docs/en/application-note/APR40.pdf DSP56300 Implementing Viterbi Decoders Using the VSL Instruction on DSP Families DSP56300 and DSP56600 /docs/en/application-note/APR40.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DSP56300 Implementing Viterbi Decoders Using the VSL Instruction on DSP Families DSP56300 and DSP56600 1.1 MB APR40 N A967832263788 /docs/en/application-note/APR23.pdf 2000-09-01 I967832217152 PSP 12 Oct 5, 2001 Application Note Using the DSP56300 Direct Memory Access Controller None /docs/en/application-note/APR23.pdf English documents 1982059 None 645036621402383989 2022-12-07 /docs/en/application-note/APR23.pdf Using the DSP56300 Direct Memory Access Controller /docs/en/application-note/APR23.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the DSP56300 Direct Memory Access Controller 2.0 MB APR23 N I967832217152 /docs/en/application-note/APR20.pdf 2000-09-01 N967832208239 PSP 13 Oct 5, 2001 Application Note Application Optimization for the DSP56300/DSP56600 Digital Signal Processors None /docs/en/application-note/APR20.pdf English documents 1842141 None 645036621402383989 2022-12-07 /docs/en/application-note/APR20.pdf Application Optimization for the DSP56300/DSP56600 Digital Signal Processors /docs/en/application-note/APR20.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Application Optimization for the DSP56300/DSP56600 Digital Signal Processors 1.8 MB APR20 N N967832208239 /docs/en/application-note/APR37.pdf 2000-09-01 M967832249526 PSP 14 Oct 5, 2001 Application Note Implementing AC-link with ESAI None /docs/en/application-note/APR37.pdf English documents 1310491 None 645036621402383989 2022-12-07 /docs/en/application-note/APR37.pdf DSP56300 Implementing AC-link With ESAI /docs/en/application-note/APR37.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DSP56300 Implementing AC-link With ESAI 1.3 MB APR37 N M967832249526 /docs/en/application-note/APR36.pdf 2000-09-01 J967832244245 PSP 15 Oct 5, 2001 Application Note Interfacing the DSP560xx/DSP563xx Families to the Crystal CS4226 Multichannel Codec None /docs/en/application-note/APR36.pdf English documents 1565556 None 645036621402383989 2022-12-07 /docs/en/application-note/APR36.pdf DSP56300 Interfacing the DSP560xx/DSP563xx Families to the Crystal CS4226 Multichannel Codec /docs/en/application-note/APR36.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DSP56300 Interfacing the DSP560xx/DSP563xx Families to the Crystal CS4226 Multichannel Codec 1.6 MB APR36 N J967832244245 /docs/en/application-note/APR30.pdf 2000-08-17 S966575646574 PSP 16 Oct 5, 2001 Application Note DSP56300 Assembly Code Development Using the Motorola Toolsets None /docs/en/application-note/APR30.pdf English documents 450672 None 645036621402383989 2022-12-07 /docs/en/application-note/APR30.pdf DSP56300 Assembly Code Development Using the NXP<sup>&#174;</sup> Toolsets /docs/en/application-note/APR30.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DSP56300 Assembly Code Development Using the NXP<sup>&#174;</sup> Toolsets 450.7 KB APR30 N S966575646574 /docs/en/application-note/APR35.pdf 2000-09-01 L967832238917 PSP 17 Sep 28, 2001 Application Note DSP56xxx: Designing Nonrealtime Test Software None /docs/en/application-note/APR35.pdf English documents 1624149 None 645036621402383989 2022-12-07 /docs/en/application-note/APR35.pdf DSP56300 Designing the DSP56xxx Software for Nonrealtime Tests File I/O Uisng SIM56xxx and ADS56xxx /docs/en/application-note/APR35.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N DSP56300 Designing the DSP56xxx Software for Nonrealtime Tests File I/O Uisng SIM56xxx and ADS56xxx 1.6 MB APR35 N L967832238917 /docs/en/application-note/AN1855.pdf 2000-08-17 U966575644548 PSP 18 May 17, 2000 Application Note This application note is designed to help customers use the DSP5636x Family of digital signal processors in their digital audio applications. In particular, customers who use them to decode home theatre digital surround signals, such as Dolby Digital (AC3) and Digital theatre sound (DTS). None /docs/en/application-note/AN1855.pdf English documents 555792 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1855.pdf AN1855 Download and Checksum Programs for Use with the DSP5636x Family /docs/en/application-note/AN1855.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN1855 Download and Checksum Programs for Use with the DSP5636x Family 555.8 KB AN1855 N U966575644548 /docs/en/application-note/AN1848.pdf 2003-09-29 1064850948143701770948 PSP 19 May 1, 2000 Application Note None /docs/en/application-note/AN1848.pdf English documents 822325 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1848.pdf ENHANCED SERIAL AUDIO INTERFACE (ESAI) /docs/en/application-note/AN1848.pdf documents 645036621402383989 Application Note N en None N pdf 1.0 N ENHANCED SERIAL AUDIO INTERFACE (ESAI) 822.3 KB AN1848 N 1064850948143701770948 Application Note Software 1 /secured/assets/documents/en/application-note-software/AN1772SW.zip 2008-05-29 1212084334722720855215 PSP 24 May 29, 2008 Application Note Software Software to accompany AN1772. Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN1772SW.zip English documents 111677 0yqyZ3Yw 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN1772SW&appType=license Software to accompany AN1772 /secured/assets/documents/en/application-note-software/AN1772SW.zip documents 789425793691620447 Application Note Software N en Extended D zip 2 Y N Software to accompany AN1772 111.7 KB AN1772SW N 1212084334722720855215 Brochure 2 /docs/en/brochure/BYNDDSPBRO.pdf 2016-10-31 1292003292326731167237 PSP 25 Dec 10, 2010 Brochure The MSC815x and MSC825x families of DSPs are based on the industry&#8217;s highest performance DSP core, built on StarCore technology, and designed for the advanced processing requirements and capabilities of today&#8217;s high-performance, high-end industrial applications. These DSPs are based on SC3850 StarCore technology. The SC3850 DSP core has earned leading benchmark results from independent signal-processing technology analysis firm Berkeley Design Technology, Inc. (BDTI). None /docs/en/brochure/BYNDDSPBRO.pdf English documents 4199464 None 712453003803778552 2022-12-07 N /docs/en/brochure/BYNDDSPBRO.pdf Beyond DSPs StarCore MSC8xxx and DSP56K Families - Brochures /docs/en/brochure/BYNDDSPBRO.pdf documents 712453003803778552 Brochure N en None Y pdf 1 N N Beyond DSPs StarCore MSC8xxx and DSP56K Families - Brochures 4.2 MB BYNDDSPBRO N 1292003292326731167237 /docs/en/brochure/BRDIGIAUDIOCO.pdf 2016-10-31 1179326632391703982261 PSP 26 May 15, 2007 Brochure In the world of audio, NXP processors are behind it all&#8212;playing the music, producing the music, mastering CDs and DVDs, and then playing back that content at movie theaters, in home theaters and in the car. NXP&#8217;s software and hardware set the benchmark for audio systems, and our long-standing and continuing partnerships with leading tool companies are an essential part of that leadership. None /docs/en/brochure/BRDIGIAUDIOCO.pdf English documents 2900414 None 712453003803778552 2022-12-07 N /docs/en/brochure/BRDIGIAUDIOCO.pdf Digital Audio—Freescale Partners /docs/en/brochure/BRDIGIAUDIOCO.pdf documents 712453003803778552 Brochure N en None Y pdf 0 N N Digital Audio—Freescale Partners 2.9 MB BRDIGIAUDIOCO N 1179326632391703982261 Data Sheet 1 /docs/en/data-sheet/DSP56371.pdf 2016-10-31 1063989138200733448045 PSP 1 Jan 17, 2007 Data Sheet DSP56371 24-bit digital signal processor (DSP) None /docs/en/data-sheet/DSP56371.pdf English documents 1219995 None 980000996212993340 2023-07-12 N /docs/en/data-sheet/DSP56371.pdf DSP56371 Data Sheet /docs/en/data-sheet/DSP56371.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4.1 N N DSP56371 Data Sheet 1.2 MB DSP56371 N 1063989138200733448045 Errata 1 /docs/en/errata/DSP56371E.pdf 2003-10-22 1066849025167732002553 PSP 27 Jan 25, 2004 Errata DSP56371E Digital Signal Processor Silicon Errata applies to Mask 1L41N. None /docs/en/errata/DSP56371E.pdf English documents 93795 None 155452329886410597 2022-12-07 /docs/en/errata/DSP56371E.pdf DSP56371E Digital Signal Processor /docs/en/errata/DSP56371E.pdf documents 155452329886410597 Errata N en None N pdf 1 N DSP56371E Digital Signal Processor 93.8 KB DSP56371E N 1066849025167732002553 Fact Sheet 5 /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf 2007-04-02 1175522375060710730771 PSP 28 Sep 30, 2008 Fact Sheet The new Symphony<sup>&#174;</sup> Studio software tools support the entire Symphony audio DSP family, along with all NXP DSP56300-based DSPs. By using the extensible development platform Eclipse, which is an open source industry standard, Symphony Studio provides DSP users a fresh way to develop, debug and simulate through an Integrated Development Environment (IDE). None /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf English documents 445456 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf Symphony<sup>&#174;</sup> Studio Development Tools /docs/en/fact-sheet/SYMSTDIODEVTLFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 2 N Symphony<sup>&#174;</sup> Studio Development Tools 445.5 KB SYMSTDIODEVTLFS N 1175522375060710730771 /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf 2007-06-19 1182287263557722842738 PSP 29 May 19, 2008 Fact Sheet Symphony<sup>&#174;</sup> DSPs are used throughout&#13;&#10;the entire audio chain, from the creation&#13;&#10;of the musical content to the playback of&#13;&#10;this content. None /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf English documents 217830 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf Symphon8482; Family Comparison Table /docs/en/fact-sheet/SYMFMCMPRTBLFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 2 N Symphon8482; Family Comparison Table 217.8 KB SYMFMCMPRTBLFS N 1182287263557722842738 /docs/en/fact-sheet/SYMSBDEVKITFS.pdf 2007-12-05 1196907043178725477371 PSP 30 Jan 16, 2008 Fact Sheet NXP introduces the Symphony<sup>&#174;</sup> SoundBite Development Kit, designed for cost-sensitive applications and college laboratories, providing a very low-cost entry point into high-end DSP solutions. None /docs/en/fact-sheet/SYMSBDEVKITFS.pdf English documents 334274 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/SYMSBDEVKITFS.pdf Symphony<sup>&#174;</sup>&#8482; SoundBite Development Kit /docs/en/fact-sheet/SYMSBDEVKITFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N Symphony<sup>&#174;</sup>&#8482; SoundBite Development Kit 334.3 KB SYMSBDEVKITFS N 1196907043178725477371 /docs/en/fact-sheet/DSP56371FS.pdf 2006-07-24 1153735673106693035400 PSP 31 Jul 24, 2006 Fact Sheet None /docs/en/fact-sheet/DSP56371FS.pdf English documents 99291 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/DSP56371FS.pdf Symphony<sup>&#174;</sup> DSP56371 Fact Sheet /docs/en/fact-sheet/DSP56371FS.pdf documents 736675474163315314 Fact Sheet N en None N pdf 0 N Symphony<sup>&#174;</sup> DSP56371 Fact Sheet 99.3 KB DSP56371FS N 1153735673106693035400 /docs/en/fact-sheet/SUITE56FACT.pdf 2002-07-18 0zxFMzNl PSP 32 Mar 6, 2006 Fact Sheet The Suite56 DSP software development tools support the DSP56300 family of DSP products. None /docs/en/fact-sheet/SUITE56FACT.pdf English documents 630991 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/SUITE56FACT.pdf Suite56 DSP Software Development Tools /docs/en/fact-sheet/SUITE56FACT.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 0 N Suite56 DSP Software Development Tools 631.0 KB SUITE56FACT N 0zxFMzNl Product Numbering Scheme 1 /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf 2000-12-07 B976221675261 PSP 33 Oct 14, 2005 Product Numbering Scheme None /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf English documents 26926 None 554336734861737620 2022-12-07 /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf Audio DSP Part Decoder /docs/en/product-numbering-scheme/DSPDECODERMSC.pdf documents 554336734861737620 Product Numbering Scheme N en None N pdf 5 N Audio DSP Part Decoder 26.9 KB DSPDECODERMSC N B976221675261 Reference Manual 4 /docs/en/reference-manual/DSP56300FMAD.pdf 2006-08-22 1156269245741719769816 PSP 2 Sep 19, 2008 Reference Manual Updates to the DSP56300 Family Manual, Rev. 5 None /docs/en/reference-manual/DSP56300FMAD.pdf English documents 52410 None 500633505221135046 2022-12-07 /docs/en/reference-manual/DSP56300FMAD.pdf DSP56300 Family Manual Addendum /docs/en/reference-manual/DSP56300FMAD.pdf documents 500633505221135046 Reference Manual N en None Y pdf 6 N DSP56300 Family Manual Addendum 52.4 KB DSP56300FMAD N 1156269245741719769816 /docs/en/reference-manual/DSPLNKRRM.pdf 2008-01-29 1201644826178712390484 PSP 3 Jan 18, 2008 Reference Manual The NXP DSP Linker is a program that processes relocatable object files produced by the NXP DSP assembler, generating an absolute executable file which can be loaded directly into one of the NXP DSP simulators, downloaded to an application development system, or converted to NXP S-record format for PROM burning. None /docs/en/reference-manual/DSPLNKRRM.pdf English documents 556598 None 500633505221135046 2022-12-07 /docs/en/reference-manual/DSPLNKRRM.pdf NXP<sup>&#174;</sup> DSP Linker/Librarian Reference Manual /docs/en/reference-manual/DSPLNKRRM.pdf documents 500633505221135046 Reference Manual N en None N pdf 1 N NXP<sup>&#174;</sup> DSP Linker/Librarian Reference Manual 556.6 KB DSPLNKRRM N 1201644826178712390484 /docs/en/reference-manual/DSPASMRM.pdf 2001-01-11 J979269298835 PSP 4 Jan 18, 2008 Reference Manual This document provides detailed programming information for programming applications in Assembly for the DSP56xxx family of DSPs. None /docs/en/reference-manual/DSPASMRM.pdf English documents 955745 None 500633505221135046 2022-12-07 /docs/en/reference-manual/DSPASMRM.pdf DSP Assembler Reference Manual /docs/en/reference-manual/DSPASMRM.pdf documents 500633505221135046 Reference Manual N en None N pdf 7 N DSP Assembler Reference Manual 955.7 KB DSPASMRM N J979269298835 /docs/en/reference-manual/DSP56300FM.pdf 2005-12-14 1134573127960702150638 PSP 5 Apr 15, 2005 Reference Manual This is the reference manual for the DSP56300 core. None /docs/en/reference-manual/DSP56300FM.pdf English documents 12313935 None 500633505221135046 2025-03-08 /docs/en/reference-manual/DSP56300FM.pdf DSP56300 Family Manual /docs/en/reference-manual/DSP56300FM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 5 N DSP56300 Family Manual 12.3 MB DSP56300FM N 1134573127960702150638 Selector Guide 2 /docs/en/product-selector-guide/SG1004.pdf 2016-10-31 L1010004267257 PSP 34 Apr 17, 2009 Selector Guide Digital Signal Processors and Controller, Quarter 2, 2009, SG1004Q22009 None /docs/en/product-selector-guide/SG1004.pdf English documents 1146625 None 553557935274807777 2022-12-07 N /docs/en/product-selector-guide/SG1004.pdf Digital Signal Processors and Controllers, SG1004 /docs/en/product-selector-guide/SG1004.pdf documents 553557935274807777 Selector Guide N en None Y pdf 0 N N Digital Signal Processors and Controllers, SG1004 1.1 MB SG1004Q22009 N L1010004267257 /docs/en/product-selector-guide/SG2047.pdf 2003-07-28 S1024935089586 PSP 35 Dec 27, 2004 Selector Guide Entertainment Digital Audio None /docs/en/product-selector-guide/SG2047.pdf English documents 194252 None 553557935274807777 2022-12-07 /docs/en/product-selector-guide/SG2047.pdf ARCHIVED - SG2047 Digital Audio /docs/en/product-selector-guide/SG2047.pdf documents 553557935274807777 Selector Guide N en None N pdf 2 N ARCHIVED - SG2047 Digital Audio 194.3 KB SG2047 N S1024935089586 User Guide 4 /docs/en/user-guide/DSPB56371UGQS.pdf 2008-02-06 1202331403692717728882 PSP 20 Sep 18, 2008 User Guide The Symphony<sup>&#174;</sup> SoundBite is an inexpensive but feature-packed solution for audio digital signal&#13;&#10;processing based on the DSPB56371 digital signal processor. The Symphony SoundBite supports the&#13;&#10;simultaneous input and output of eight channels of analog audio or six channels of analog with digital&#13;&#10;stereo optical SP/DIF through the eight 3.5 mm stereo jacks on the board. None /docs/en/user-guide/DSPB56371UGQS.pdf English documents 69328 None 132339537837198660 2022-12-07 /docs/en/user-guide/DSPB56371UGQS.pdf Symphony<sup>&#174;</sup> SoundBite: Quick Start with Symphony Studio /docs/en/user-guide/DSPB56371UGQS.pdf documents 132339537837198660 User Guide N en None N pdf 2 N Symphony<sup>&#174;</sup> SoundBite: Quick Start with Symphony Studio 69.3 KB DSPB56371UGQS N 1202331403692717728882 /docs/en/user-guide/DSPSTUDIOUG.pdf 2008-01-29 1201623626388697440691 PSP 21 Jul 29, 2008 User Guide Use this guide to get started with cross development for the Symphony<sup>&#174;</sup> DSP Platform. None /docs/en/user-guide/DSPSTUDIOUG.pdf English documents 5153469 None 132339537837198660 2023-06-19 /docs/en/user-guide/DSPSTUDIOUG.pdf Symphony<sup>&#174;</sup> Studio: Eclipse for Symphony DSPs User Guide /docs/en/user-guide/DSPSTUDIOUG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.1 N Symphony<sup>&#174;</sup> Studio: Eclipse for Symphony DSPs User Guide 5.2 MB DSPSTUDIOUG N 1201623626388697440691 /docs/en/user-guide/DSP56371UM.pdf 2003-09-24 1064419765945714868760 PSP 22 Aug 21, 2006 User Guide This manual describes the DSP56371 24-bit digital signal processor (DSP), its memory, operating modes and peripheral modules. None /docs/en/user-guide/DSP56371UM.pdf English documents 4291374 None 132339537837198660 2022-12-07 /docs/en/user-guide/DSP56371UM.pdf DSP56371 Users Guide /docs/en/user-guide/DSP56371UM.pdf documents 132339537837198660 User Guide N en None Y pdf 2.1 N DSP56371 Users Guide 4.3 MB DSP56371UM N 1064419765945714868760 /docs/en/user-guide/DSP5636XEVMUM.pdf 2001-05-09 I989437766286 PSP 23 Oct 1, 2001 User Guide DSPAUDIOEVM Evaluation Board User's Manual None /docs/en/user-guide/DSP5636XEVMUM.pdf English documents 5126045 None 132339537837198660 2022-12-07 /docs/en/user-guide/DSP5636XEVMUM.pdf DSP5636XEVMUM User Manual /docs/en/user-guide/DSP5636XEVMUM.pdf documents 132339537837198660 User Guide N en None N pdf 1.3 N DSP5636XEVMUM User Manual 5.1 MB DSP5636XEVMUM N I989437766286 true Y Products
