Dual DSI3 Leader Transceiver for Automotive Applications
The SA0528 dual DSI leader transceiver enables reliable, high-speed leader to follower communication for safety critical applications. Several topologies are addressed, supporting point-to-point, both daisy-chained and parallel buses, only requiring a two wire implementation per channel, meaning a much more cost-efficient alternative as compared to other three or four wires protocols. The SA0528 has been designed with safety compliancy from the grounds up, making it an ideal solution for automotive and industrial mission critical applications.
DSI3 implemented features include Command and Response Mode for leader to single follower bidirectional communication, Periodic Data Collection Mode for high-speed multiple follower data collection, and Discovery Mode for followers auto-addressing and self-programming.
Product Details
Features
- Two independent DSI3 leader channels
- Supports Command and Response mode for follower configuration
- Supports PDCM for periodic follower data transfers
- Supports Discovery mode for follower physical address self-programming
- 10 MHz 32-bit dual SPI
- Main SPI for device configuration and DSI3 operation
- Redundant SPI for safety purposes
- Point-to-point, parallel, daisy chain bus topologies
Target Applications

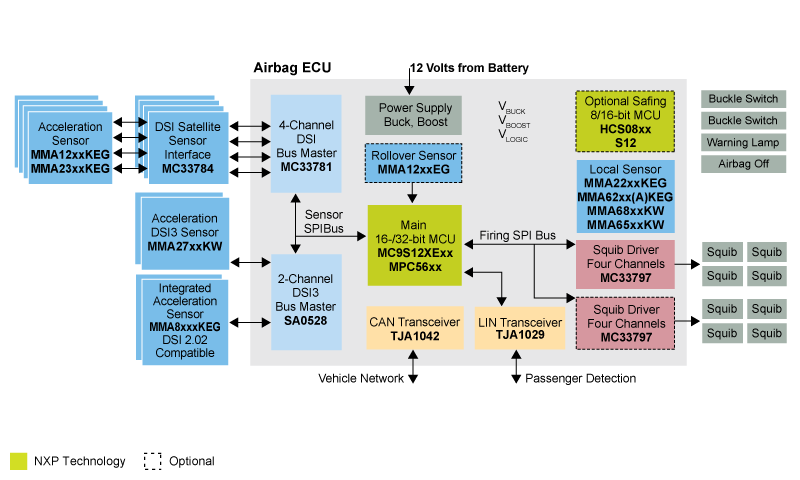

- Automotive airbag and safety
- Industrial Systems
- Sense and trigger applications
Related products
Buy/Parametrics
1 result
Include 0 NRND
Part | Order | CAD Model | Status | Device Function | Load Supply Voltage (Min) (V) | Load Supply Voltage (Max) (V) | Supply Voltage [min] (V) | Supply Voltage [max] (V) |
|---|---|---|---|---|---|---|---|---|
Active | comm transceivers | 9 | 9.6 | 4.8 | 5.25 |
