DSI 2.02 Sensor Interface

MC33784
Active

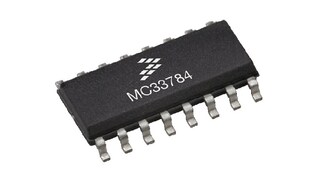

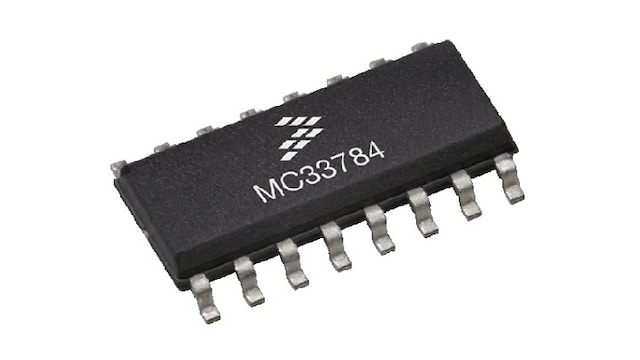

Roll over image to zoom in

The NXP® MC33784 is a follower distributed system interface bus (DBUS), version 2.02 compatible device optimized as a sensor interface.

  • Contains circuits to power sensors such as accelerometers and to digitize the analog level from the sensor
  • The device is controlled by commands over the bus, and returns measured data and other information over the bus
  • Tools: Limited Evaluation boards available; contact sales

Block Diagram

Freescale MC33784 Network Transceivers

NXP<sup>&#174;</sup> MC33784 Network Transceivers Block DiagramV
Get diagram PDF

Features

Key Features

  • DSI version 2.02 compatible
  • 2-channel, 10-bit analog-to-digital converter (ADC)
  • 3 pins configurable as logic inputs or outputs
  • Provides regulated +5.0v output for sensor power from bus
  • On-board clock (no external elements required)
  • Includes bus switches on bus and bus return

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Device Function

Data Rate (Max) (Kbps)

Load Supply Voltage (Min) (V)

Load Supply Voltage (Max) (V)

Supply Voltage [min] (V)

Supply Voltage [max] (V)

Ambient Operating Temperature (Min to Max) (℃)

MCZ33784EF
Data Sheet

Active

comm transceivers

200.0

4.9

5.1

6

30

-40 to 125
