Home Automation Modem

TDA5051AT
Active

The TDA5051A is a modem IC, specifically dedicated to ASK transmission by means of the home power supply network, at 600 baud or 1200 baud data rate. It operates from a single 5 V supply.

See product image

Product Details

Block Diagram

Choose a diagram:

UCODE 8/8m Block Diagram

UCODE 8/8m Block Diagram

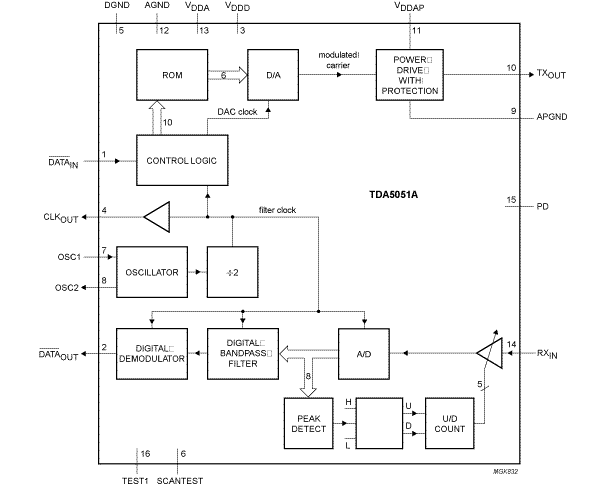

TDA5051A Block Diagram

TDA5051A Block Diagram

TDA5051A Block Diagram

Get diagram PDF

Features

System Features

  • Full digital carrier generation and shaping
  • Modulation/demodulation frequency set by clock adjustment, from microcontroller or on-chip oscillator
  • High clock rate of 6-bit D/A (Digital to Analog) converter for rejection of aliasing components
  • Fully integrated output power stage with overload protection
  • Automatic Gain Control (AGC) at receiver input
  • 8-bit A/D (Analog to Digital) converter and narrow digital filtering
  • Digital demodulation delivering baseband data
  • Easy compliance with EN50065-1 with simple coupling network
  • Few external components for low cost applications
  • SO16 plastic package
  • Home appliance control (air conditioning, shutters, lighting, alarms and so on)
  • Energy/heating control
  • Amplitude Shift Keying (ASK) data transmission using the home power network
  • Data rate 0.0012 kbps (Max)
  • Supply voltage 82 V (Min), 122 V (Max)

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Package Type

Status

Data rate [max] (kb/s)

Supply Voltage [Min to Max] (V)

Supply Current (MAX) (mA)

TDA5051AT
Data Sheet

SO16

Active

1.2

82 to 122

38000
