PCA9616PW Demo Board

OM13523UL Active

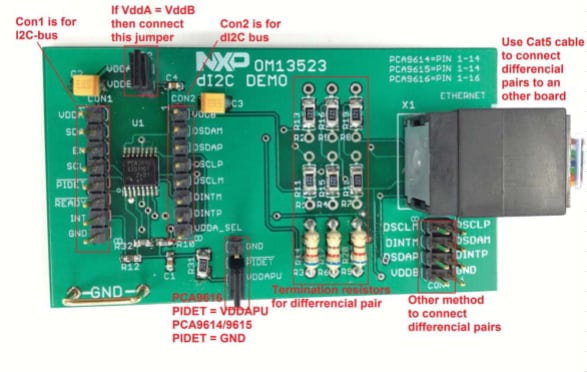

Roll over image to zoom in

The dI²C demo board OM13523 is for a demonstration of the differential I²C-bus working better in noise and ground offset environment than standard I²C-bus. The two dI²C demo boards can be used to see the improvement of signal integrity in a noisy environment or a system that has many different power sources creating different ground offset.

Product Details

Supported Devices

Interfaces

I²C-Bus Repeaters/Hubs/Extenders

  • PCA9614DP: Two-Channel Multipoint Fast-Mode Plus Differential I²C-Bus Buffer with Hot-Swap Logic
  • PCA9615DP: Two-Channel Multipoint Fast-Mode Plus Differential I²C-Bus Buffer with Hot-Swap Logic
  • PCA9616PW: Three-Channel Multipoint Fast-Mode Plus Differential I²C-Bus Buffer with Hot-Swap Logic

Features

Key Features

  • A complete evaluation platform for PCA9616 (or PCA9614 and PCA9615)
  • Easy to connect to an existing system
  • Convenient test point for easy scope measurement and signal access

Buy Options

OM13523-Image

Click to expand

  • OM13523
    Active

  • PCA9616PW Demo Board.

  • $30.86 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
