SPI to I²C-Bus Bridge

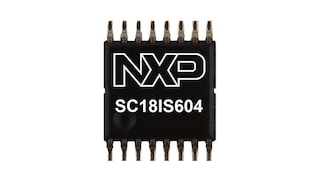

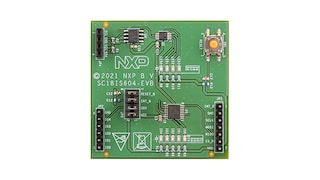

SC18IS604 Active

Roll over image to zoom in

SC18IS604 is designed to serve as an interface between the standard SPI of a host (microcontroller, microprocessor, chip set, etc.) and the serial I²C-bus. This allows the host to communicate directly with other I²C-bus devices. SC18IS604 can operate as an I²C-bus controller-transmitter or controller-receiver. SC18IS604 controls all the I²C-bus specific sequences, protocol, arbitration and timing.

SC18IS604 is a functional replacement for SC18IS600 with exception of: new pinout, transmit and receive buffer of 255 bytes vs 96 bytes, three instead of four GPIOs but no longer with quasi bidirectional mode, operating supply voltage lower level lowered to 1.71 V vs 2.4 V and temperature range of -40 to 105 °C vs -40 to 85 °C.

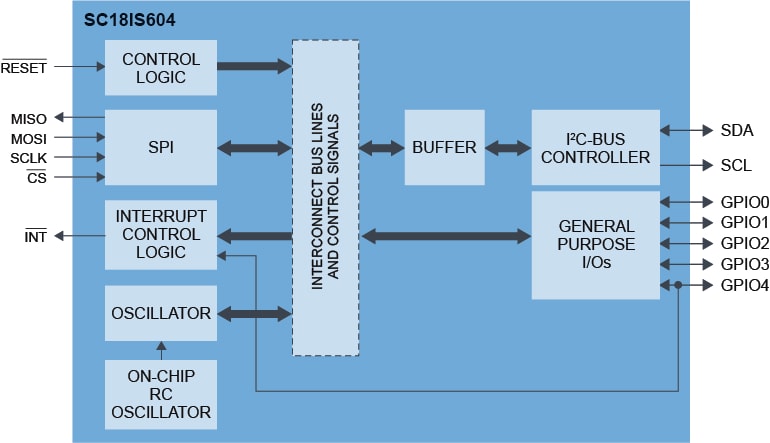

Block Diagram

SC18IS604

SC18IS604 Block Diagram
Get diagram PDF

Features

Key Features

  • SPI peripheral interface to I2C-bus controller
  • High-speed SPI: Up to 1.2 Mbit/s
  • Fast-mode I2C-bus: 375 kHz
  • 255-byte TX and RX FIFO
  • Five general purpose input/output (GPIO) pins
  • 1.71 V to 3.6 V operation with 5 V tolerant I/O pins

Temperature Range

  • -40 to 105 °C

ESD Protection

  • Exceeds 2000 V HBM per JESD22-A114

Comparison Table

SPI/UART to I²C

Part Number UART SPI I²C GPIO Function
SC18IS604 NA 1.2 MHz 375 kHz 5 SPI to I²C

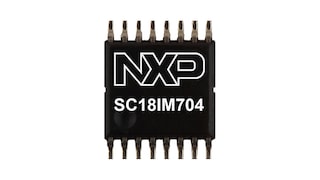

SC18IM704 460.8 Kbit/s NA 375 kHz 8 UART to I²C

I²C to SPI

Part Number UART SPI I²C GPIO Function

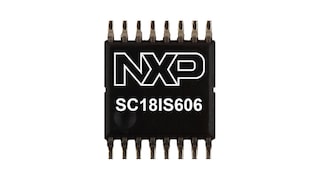

SC18IS606 NA 1.8 MHz 400 kHz 3 I²C to SPI

I²C/SPI to UART

Part Number UART SPI I²C GPIO Function
SC16IS740/750/752 5 Mbit/s 15 Mbit/s 400 kHz 8 I²C/SPI to UART

Buy/Parametrics

1 result

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Budgetary Price excluding tax

Package Type

Package Termination Count

Buffer size

Input

Output

SC18IS604PW
Data Sheet

Active

1K @ US$1.54

TSSOP16

16

255

SPI

I2C bus
