NFC Forum-Compliant Frontend IC with Superior RF Performance for Automotive

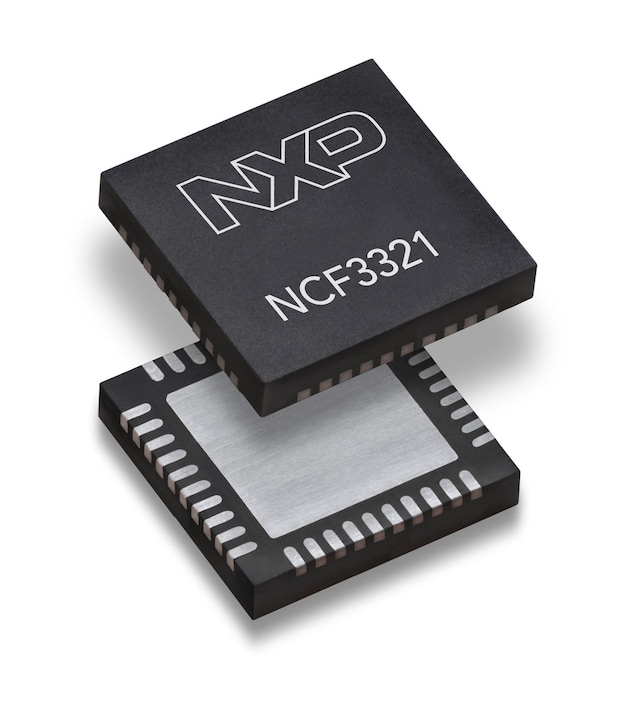

The NCx3321 is an automotive-grade and NFC Forum-compliant frontend IC optimized for smart car access applications. The NCx3321 offers outstanding RF performance in terms of the maximum RF power combined with dynamic power control (DPC) and excellent receiver sensitivity.
The NCx3321 also sets new benchmarks for ultra-low power card detection and self-diagnostics, making it an ideal solution for door handle/bi-pillar and center console applications. The NCx3321 is accompanied by an automotive NFC (aNFC) reader library, which is easily portable across different MCUs.
Please send us an email to request product support package for this product.
Once you have your activation code, please see how to register and activate software.
For additional information and sample availability, contact your local Sales Office.
Product Details
Features
Key Features
- NFC frontend IC supporting all relevant 13.56 MHz RF protocols, reader/writer, P2P and card emulation modes
- High power (up to 1.75 W) transmitter with dynamic power control operating autonomously from the host MCU
- Receiver with enhanced sensitivity, noise immunity and integrated EMD handling
- Active load modulation in card emulation mode for large operating distance
- Support of NXP proprietary high data rates up to 212 Kbit for communication with NCx3310 (tag type 5)
- Ultra-low power and low power card detection modes
- Overcurrent and overtemperature protection mechanisms
- RF Debugging either AUX0, AUX1, AUX2 outputs or without external probing of test signals
- Compliant to NFC Forum CR13 as CCC device class
- SPI host interface with speeds up to 15 MHz
- Wide temperature range: -40 °C to +105 °C
Related products
5 Watt Wireless Charging Transmitter ICs
KW39/38/37: 32-Bit Bluetooth 5.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M0+ Core
65W+ Wireless Power Transmitter Controller
15 Watt Wireless Charging Transmitter ICs
Buy/Parametrics
2 results
Include 0 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Package Type | Description | Modes of Operation | Contactless Identification Standard | Host Interface | Host interface protocol | Pad supply (V) | RF driver supply voltage [min-max] (V) | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1K @ US$3.30 | HVQFN40 | NFC Forum-Compliant Front-End IC with Superior RF Performance for Automotive | Card Emulation, NFC reader/writer, Peer to Peer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092, JIS X 6319-4 | SPI | TLV based register level command- response | 1.8 to 3.3 | 2.4 - 5.5 | -40 to 85 | |||
Active | 1K @ US$3.42 | HVQFN40 | NFC Forum-Compliant Front-End IC with Superior RF Performance for Automotive | Card Emulation, NFC reader/writer, Peer to Peer | ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092, JIS X 6319-4 | SPI | TLV based register level command- response | 1.8 to 3.3 | 2.4 - 5.5 | -40 to 105 |
