Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm Cortex-M0 Cores

Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm Cortex-M0 Cores | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

The LPC11xx MCU Family is an Arm Cortex-M0 based low-cost 32-bit MCU family operating at CPU frequencies of up to 50 MHz. The LPC11xx MCU family is designed for 8/16-bit micro-controller operations, offering performance, low power, simple instruction set with reduced code size.

The peripheral complement of the LPC11xx family includes up to 64 KB of flash memory, up to 8 KB of SRAM, fast-mode plus I2C-bus interface, RS-485/EIA-485 UART, SPI with SSP features, general purpose counters/timers, an Analog to Digital Converter, and up to 42 general purpose I/O pins.

Data Sheet

Application Notes

Product Details

Features

System

Arm Cortex-M0 processor, running at frequencies of up to 50 MHz
Arm Cortex-M0 built-in nested vectored interrupt controller (NVIC)
Non-maskable interrupt (NMI) input selectable from several input sources
Serial wire debug
System tick timer

Memory

Up to 64 KB on-chip flash programming memory
Up to 8 KB SRAM
In-system programming (ISP) and In-application programming (IAP) via on-chip bootloader software

Digital peripherals

Up to 42 General purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors. In addition, a configurable open-drain mode is supported on the LPC1100L and LPC1100XL series
GPIO pins can be used as edge and level sensitive interrupt sources
High-current output driver (20 mA) on one pin
High-current sink drivers (20 mA) on two I2C-bus pins in fast-mode plus (not on LPC1112FDH20/102)
Four general purpose counter/timers with up to eight capture inputs and up to 13 match outputs
Programmable windowed WDT

Analog peripherals

10/12-bit ADC with up to 2 Msamples/s and up to eight channels

Serial interfaces

Up to 3 UARTs with fractional baud rate generation, internal FIFO, and RS-485 support
Up to 2 SPI controllers with SSP features and with FIFO and multi-protocol capabilities
I²C-bus interface supporting full I²C-bus specification and fast-mode Plus with a data rate of 1 Mbit/s with multiple address recognition and monitor mode (not on LPC1112FDH20/102)

Clock generation

12 MHz internal RC oscillator trimmed to 1 % accuracy that can optionally be used as a system clock
Crystal oscillator with an operating range of 1 MHz to 25 MHz
Programmable watchdog oscillator with a frequency range of 9.4 kHz to 2.3 MHz
PLL allows CPU operation up to the maximum CPU rate without the need for a high-frequency crystal. May be run from the system oscillator or the internal RC oscillator
Clock output function with divider that can reflect the system oscillator clock, IRC clock, CPU clock, and the Watchdog clock

Power control

Integrated PMU (Power Management Unit) to minimize power consumption during Sleep, Deep-sleep, and Deep power-down modes
Power profiles residing in boot ROM allowing to optimize performance and minimize power consumption for any given application through one simple function call
Three reduced power modes: Sleep, Deep-sleep, and Deep power-down
Processor wake-up from Deep-sleep mode via a dedicated start logic using up to 13 of the functional pins
Power-On Reset (POR)
Brownout detect with up to four separate thresholds for interrupt and forced reset

Additional features

Unique device serial number for identification
Single power supply (1.8 V to 3.6 V)
Available in WLCSP16, SO20, TSSOP20, TSSOP28, HVQFN24, HVQFN33, TFBGA48 and LQFP48 packages

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

5 design files

Models
IBIS models for LPC11xx pkg HVQFN-33

ZIPRev 1Jun 13, 201784.2 KBIBIS_LPC11xx_HVQFN-33

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IBIS models for LPC11xx pkg LQFP-48

ZIPRev 1Jun 13, 201784.2 KBIBIS_LPC11xx_LQFP-48

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
LPC43xx/LPC18xx Orcad symbols

RARRev 0Jun 3, 2016297.8 KBLPC43XX-LPC18XX-ORCAD-SYM

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
LPC11xx ORCAD symbols

ZIPRev 0Jun 3, 20162.9 KBLPC11XX-ORCAD-SYM

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
LPC11xx Eagle symbols

ZIPRev 0Jun 3, 20168.1 KBLPC11XX-EAGLE-SYM

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 10 hardware offerings

Emulators, Probes, and Programmers
Universal Multilink Development Interface
Active

UMultilink
Emulators, Probes, and Programmers
MCU-Link Debug Probe
Active

MCU-LINK
Emulators, Probes, and Programmers
PEmicro Cyclone programmer
Active

CYCLONE
Additional hardware available. View our featured partner solutions.
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
LPC-Link2
Active

OM13054
Emulators, Probes, and Programmers
MCU-Link Pro Debug Probe
Active

MCU-LINK-PRO
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface
Active

U-MULTILINK-FX
Evaluation and Development Boards

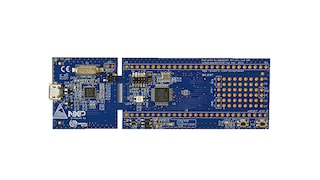

LPCXpresso board for LPC1115 with CMSIS DAP probe
Active

OM13087
Evaluation and Development Boards

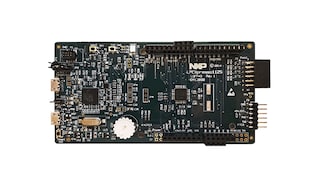

LPCXpresso1125 Board
Active

OM13080
Evaluation and Development Boards
MCU-LINK-MR Debug Probe with USB-C, Serial and Mobile Robotics Interfaces
Active

MCU-LINK-MR

Show All

1-5 of 12 hardware offerings

Test Accessories and Debugger
Flasher Secure

Flasher Secure is a mass production programming system, capable of protecting the vendor’s IP regardless of the production site. It provides full control over the program...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher Compact

Flasher Compact is the compact twin to the Flasher PRO, primarily designed for installation into production rigs or automated test equipment (ATE) where production space ...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher Portable PLUS

Flasher Portable PLUS is an extremely portable flash programmer, specifically designed to meet the needs of production-grade flash programming in the field.

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link PRO PoE

J-Link PRO PoE is a specialized programming / debug probe for creating test farms. It can draw power via Ethernet and supplies power to the target either via debug interf...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link PRO

J-Link PRO is an enhanced version of the SEGGER J-Link. This emulator supports ARM/Cortex devices. This has an Ethernet interface in addition to the USB interface. This ...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher Hub-12

The Flasher Hub-12 controls up to 12 Flasher Compacts so that they program simultaneously, creating a powerful gang programmer for efficient high-speed parallel programmi...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
J-Link EDU Mini

The J-Link EDU Mini is a stripped-down, budget-friendly model of the J-Link debug probe created for educational use. Even with its reduced size, it maintains most J-Link ...

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher PRO

Flasher PRO is SEGGER’s “almost-anything” flash programmer for microcontrollers, SoCs, and (Q)SPI flashes.

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
Flasher ATE

Flasher ATE is perfectly suited for high volume mass production environments.

By SEGGER Microcontroller GmbH Gold Partner
Test Accessories and Debugger
I-jet

I-jet is a high-performing in-circuit debugging probe for ARM. It is capable of delivering power to the target board and measuring target power consumption. I-jet is full...

By IAR Platinum Partner
Test Accessories and Debugger
J-Link ULTRA+

The J-Link ULTRA+ is three times faster than the industry standard J-Link, at a 3 MBytes/s download speed to RAM. It comes complete with J-Flash, and Unlimited Flash Brea...

By SEGGER Microcontroller GmbH Gold Partner
Module

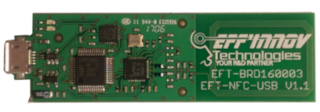

EFT-NFC-RS232-01

EFT-NFC-USB is NFC Dongle designed to facilitate the integration of 13.56 MHz contactless connectivity. It is built-in with a full features NFC protocol stack controlled...

By EFF'INNOV Technologies Gold Partner

Show All

To find additional partner offerings that support this product, visit our Partner Marketplace.

Engineering Services

To get further assistance directly from NXP, please see our Engineering Services.

4 engineering services

Independent Design House (IDH)
Design Services

By Embedded Artists AB GoldHQ: Malmö, SwedenSupporting Regions: EMEA, APAC, Americas
Independent Design House (IDH)
Embedded software development

By MobileKnowledge GoldHQ: Barcelona, SpainSupporting Regions: EMEA, APAC, Americas
Independent Design House (IDH)
Wireless and Antenna Design

By Bluewind GoldHQ: Castelfranco Veneto, ItalySupporting Regions: EMEA
Independent Design House (IDH)
e2e System security design

By MobileKnowledge GoldHQ: Barcelona, SpainSupporting Regions: EMEA, APAC, Americas

To find additional partner offerings that support this product, visit our Partner Marketplace.

Training

1-5 of 8 trainings

On-Demand
Embedded System Security for C/C++ Developers ONLINE

24 hrBy Doulos Ltd Gold Partner

On-Demand
Advanced wolfSSL for Embedded Security

12 hrBy AC6-Training Gold Partner

On-Demand
Developing with Arm Cortex-M

35 hrBy Doulos Ltd Gold Partner

On-Demand
wolfSSL for Embedded Security

18 hrBy AC6-Training Gold Partner

On-Demand
C++ Programming for Embedded Systems ONLINE

30 hrBy Doulos Ltd Gold Partner

On-Demand
Advanced Embedded Systems Security

12 hrBy AC6-Training Gold Partner

On-Demand
C Programming for Embedded Systems ONLINE

30 hrBy Doulos Ltd Gold Partner

On-Demand
Writing Secure C/C++ code

18 hrBy AC6-Training Gold Partner

Show All

To find additional partner offerings that support this product, visit our Partner Marketplace.

Shopping cart

Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm Cortex-M0 Cores

Product Details

Features

System

Memory

Digital peripherals

Analog peripherals

Serial interfaces

Clock generation

Power control

Additional features

Applications

Automotive

Consumer

Industrial

Buy/Parametrics

Documentation

Filter by

Application Note (23)

Quick Start Up Guide PNEV512B Board[AN11308]

USBD Library for LPC1100 Series MCUs[TN00036]

AES encryption and decryption software on LPC microcontrollers[AN11241]

NXP LPC Cortex-M0 IEC60335 Class B library[AN11208]

DMX512/RDM leader using LPC11U1x[AN11154]

DALI leader using LPC134x[AN11174]

DMX512/RDM follower using LPC111x[AN11153]

Sensored BLDC motor control with LPC111x/LPC11Cxx[AN11094]

DALI leader using LPC134x[AN11175]

Off-line Li-Ion battery charger solution with the LPC111x family[AN11139]

Reducing code size for LPC11XX with LPCXpresso[AN10963]

I2C secondary boot loader[AN11258]

How to implement the PMBus software stack[AN11318]

SPI secondary boot loader[AN11257]

UUencoding for UART ISP[AN11229]

AN11027 - Using the LPC1100 low power modes and wake-up times on the LPCXpresso (with software)[AN11027]

AN11031 - PCB layout and ADC circuit recommendations for LPC1100 and LPC1300 (with software)[AN11031V1]

AN11023 - Capacitive touch sensing using the LPC11xx (with software)[AN11023V1]

Adding ISP to LPC1102 systems[AN11015]

AN10955 - Full-duplex software UART for LPC111x and LPC13xx[AN10955_-_FULL-DUPLEX_SOFTWARE]

AN10995 - LPC1100 secondary bootloader (with software)[AN10995]

Using Code Read Protection in LPC1100 and LPC1300[AN10968]

Full-duplex software UART for LPC111x and LPC13xx[AN10955]

Data Sheet (4)

32 位 Arm Cortex-M0 微控制器，高达 32KB Flash 和 8 KB SRAM[LPC11XX_CN_1]

32-bit ARM Cortex-M0 microcontroller; 64 kB flash and 8 kB SRAM; 12-bit ADC[LPC112X]

32-bit Arm Cortex-M0 microcontroller; up to 64 kB flash and 8 kB SRAM[LPC111X]

32-bit Arm Cortex-M0 microcontroller; 32 kB flash and 8 kB SRAM[LPC1102_1104]

Errata (4)

Errata sheet LPC1111/12/13/14/15[ES_LPC111X]

Errata sheet LPC112x[ES_LPC1125]

Errata sheet LPC1110/11/12/14[ES_LPC1110_11_12_14]

Errata sheet LPC1102[ES_LPC1102]

Package Information (10)

plastic thermal enhanced very thin quad flat package; no leads; 32 terminals; body 5 x 5 x 0.85 mm[SOT617-3]

plastic thermal enhanced very thin quad flat package; no leads; 24 terminals; body 4 x 4 x 0.85 mm[SOT616-3]

plastic thin fine-pitch ball grid array package; 48 balls[SOT1155-2]

plastic thin shrink small outline package; 20 leads; body width 4.4 mm[SOT360-1]

plastic dual in-line package; 28 leads (600 mil)[SOT117-1]

plastic thin shrink small outline package; 28 leads; body width 4.4 mm[SOT361-1]

Wafer level chip-size package; 16 bumps; 2.17 x 2.32 x 0.6 mm[OL-LPC1102UK]

plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm[SOT313-2]

plastic thermal enhanced very thin quad flat package; no leads; 32 terminals; body 7 x 7 x 0.85 mm[SOT865-3]

plastic small outline package; 20 leads; body width 7.5 mm[SOT163-1]

Packing Information (2)

HVQFN24; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118[SOT616-3_118]

LQFP48; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118[SOT313-2_118]

Supporting Information (5)

ADC design guidelines[TN00009]

Reflow Soldering Profile[REFLOW_SOLDERING_PROFILE]

Footprint for wave soldering[HTQFP-HLQFP-LQFP-MSQFP-WAVE]

Footprint for wave soldering[SSOP-TSSOP-VSO-WAVE]

Migration from LPC1100L to LPC1100XL[TN00005]

Training Presentation (1)

Driving the LPC111x with Murata resonators[R_10004]

User Guide (6)

LPC112x User manual[UM10839]

LPC111x/LPC11Cxx User manual[UM10398]

TDA5051A lighting leader-follower demo board OM13314[UM10495]

DMX512/RDM getting started guide[UM10536]
