PF5023 Multi-Channel (3) PMIC Evaluation Board

KITPF5023FRDMEVM Active

Roll over image to zoom in

The KITPF5023FRDMEVM is a customer evaluation board/kit featuring the PF5023 power management IC.

The kit integrates all hardware needed to fully evaluate the featured power management integrated circuit. It integrates a communication interface based on the FRDM-KL25Z freedom board to interface with the NXP GUI software to fully configure and control the PF5023 PMIC.

Supported Devices

Power Management

PMICs

  • PF5023: Multi-Channel (3) PMIC for Automotive Applications – 3 High Power, Fit for ASIL B Safety Level

Features

PMIC

  • Multi-Output
  • OTP Programmable
  • Fit to ASIL B Safety Level

Software Interface

  • FRDM-KL25Z Board

Connectivity

  • High-Speed I²C through KL25Z

Jumpers and Switches

  • PMIC Enable and IO Control

LEDs

  • PGOOD Indication

Buy Options

KITPF5023FRDMEVM-Image

Click to expand

  • KITPF5023FRDMEVM
    Active

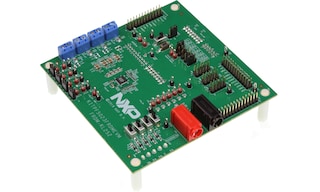

  • PF5023 Multi-Channel (3) PMIC Evaluation Board .

    • Assembled and tested KITPF5023FRDMEVM
    • Preprogrammed FRDM-KL25Z
    • 3.0 ft. USB-STD A to USB-B-mini cable
  • $147.77 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
