MC9S12G64 Ultra Reliable 16-bit Tower System Module Demonstration Board

TWR-S12G64 Active

Roll over image to zoom in

The TWR-S12G64 is a demonstration board for the NXP® MC9S12G64 automotive 16-bit MCUs. An integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy. All MCU signals are available on one or both edge connectors.

The TWR-S12G64 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Microcontroller

  • MC9S12G64, 64 LQFP
  • 25 MHz Bus Frequency
  • Internal oscillator

Memory

  • 64 kB flash, 2048B EEPROM, 4096B RAM

Connectivity

  • SCI, SPI, MSCAN
  • 4 2x8, 0.1" CTR, to access to all MCU pin signal

Power Management

  • Power input from OSBDM, Tower® System, or External 12 V Barrel Connector

Debug

  • Integrated open source BDM (OSBDM)

Components

  • 1 ea. high-speed CAN Physical Layer Transceiver
  • 1 ea, Enhanced LIN Physical Layer Transceiver
  • RS-232 Serial Data Physical Layer Transceiver
  • 4 user Push-Button Switches and 4 user LED Indicators

Buy Options

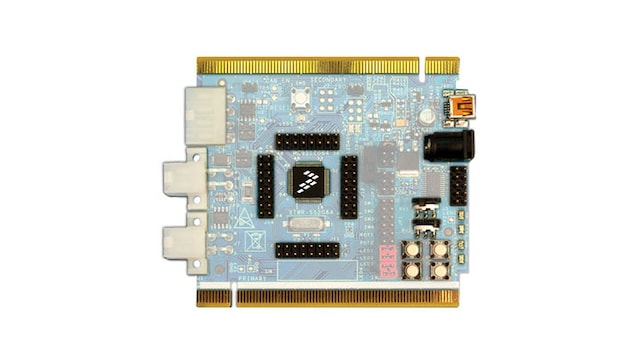

TWR-S12G64-Image

Click to expand

  • TWR-S12G64
    Active

  • Tower System, 16-bit MCU Module, MC9S12G64, 64KB Flash, Automotive.

    • Part Number TWR-S12G64 contains:
      • TWR-S12G64 board with a MC9S12G64 16-bit MCU
      • DVD with IDE software, training materials and collateral
      • USB cable
      • DB9 to IDC 2X5 Socket Header
      • NXP Warranty Card
    • Part Number TWR-S12G64-KIT also contains:
      • TWR-ELEV: Tower System Elevator Module
      • TWR-PROTO: Prototyping Module with perfboard area
  • $315.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
