MC9S12G240 Ultra Reliable 16-bit Tower System Module

TWR-S12G240 Active

Roll over image to zoom in

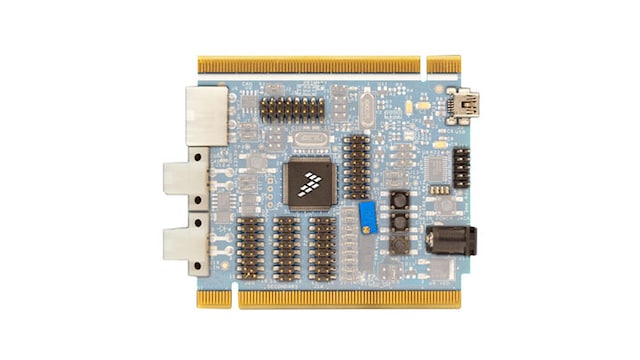

The TWR-S12G240 is a demonstration board for the NXP® MC9S12G240 automotive 16-bit MCUs.

  • An integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy
  • All MCU signals are available on one or both edge connectors
  • The TWR-S12G240 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Microcontroller

  • MC9S12G240, 100 LQFP

Memory

  • 240 KB flash
  • 4096B EEPROM
  • 11298B RAM

Connectivity

  • SCI
  • SPI
  • MSCAN
  • 1 ea. high-speed CAN Physical Layer Transceiver
  • 1 ea, Enhanced LIN Physical Layer Transceiver
  • RS-232 Serial Data Physical Layer Transceiver
  • 5 2x8, 0.1" CTR, to access MCU pin signals

Power Management

  • Power input from OSBDM, Tower System, or External 12 V Barrel Connector
  • 25 MHz Bus Frequency
  • Internal oscillator
  • Integrated open source BDM (OSBDM)

User Components

  • 4 user Push-Button Switches
  • 4 user LED Indicators

Buy Options

TWR-S12G240-Image

Click to expand

  • TWR-S12G240
    Active

  • Tower System, 16-bit MCU Module, MC9S12G240, 240KB Flash, Automotive.

  • For a quantity of 1
Order from distributors
