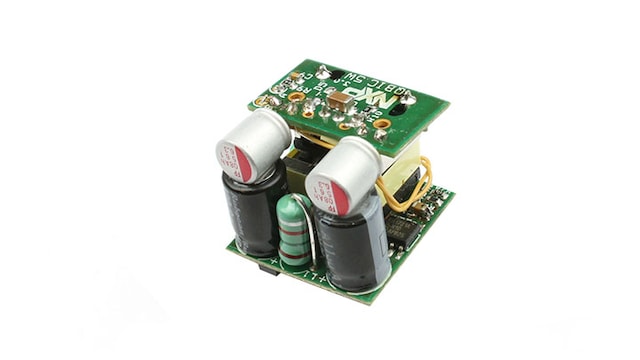

TEA1721 Cubic Charger 5 W Demo Board

TEA1721ADB1102 Active

Roll over image to zoom in

The TEA1721 demo board is a small and low cost solution for a 5 W mobile phone charger or any low power adapter solution. The application is USB1.1 battery charging compliant and operates in constant voltage (CV) or constant current (CC) mode for a proper and controlled charge behaviour of the battery. The switch-mode converter operates in flyback mode at a maximum frequency of around 51 kHz. Overcurrent and short-circuit protection are built in. The power consumption is below 10 mW under no-load conditions.

Product Details

Supported Devices

Power Management

AC-DC Controllers with Integrated Power Switch

  • TEA1723DT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 1270 Hz
  • TEA1723AT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 430 Hz
  • TEA1721FT: HV Start-up Flyback Controller with Integrated MOSFET for 5 W Applications, F~Burst = 1750 Hz
  • TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz
  • TEA1721BT: HV Start-up Flyback Controller with Integrated MOSFET for 5 W Applications, F~Burst = 905 Hz
  • TEA1721DT: HV Start-up Flyback Controller with Integrated MOSFET for 5 W Applications, F~Burst = 1270 Hz
  • TEA1723BT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 905 Hz
  • TEA1723FT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 1750 Hz

Features

Key Features

  • Low component count for a cost effective implementation
  • Primary sensing
  • Integrated MOSFET

IC used

  • TEA1721AT SOP8 fixed frequency controller

Size

  • Small form factor

Components

  • Compensation of cable impedance included

Buy Options

TEA1721ADB1102-Image

Click to expand

  • TEA1721ADB1102
    Active

  • TEA1721 Cubic Charger 5W demo board.

    • Demo board
    • Quick start guide
  • $289.80 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
