OM27160: Development Kits for PN7160 Plug’n Play NFC Controller

PN7160-EVK

Roll over image to zoom in

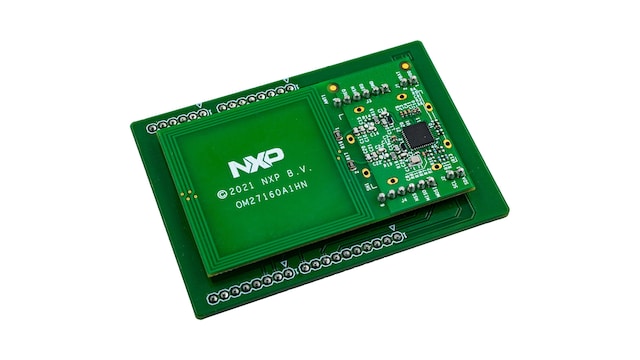

The PN7160 customer development kit, designed to help simplify development and reduce time to market, includes a PN7160 controller board with I²C or SPI interface, Arduino and Raspberry Pi interface boards and a sample card. Standalone controller boards are also available.

Supported Devices

RFID

NFC Readers

  • PN7160: NFC Plug and Play Controller with Integrated Firmware and NCI Interface

Features

Interfaces

  • SPI or I²C

Compatibility

  • Connection header compatible with Raspberry Pi or Arduino

Connectivity

  • NFC

Tools and OS support

  • Linux, Android FreeRTOS and no OS

Buy Options

OM27160A1-Image

Click to expand

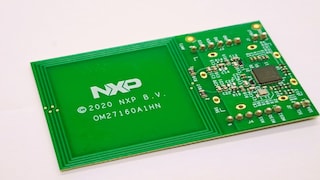

  • OM27160A1
    Active

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

  • Kit Contains:

    • 1 development board with I²C interface
  • $51.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
OM27160A1EVK-Image

Click to expand

  • OM27160A1EVK
    Active

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

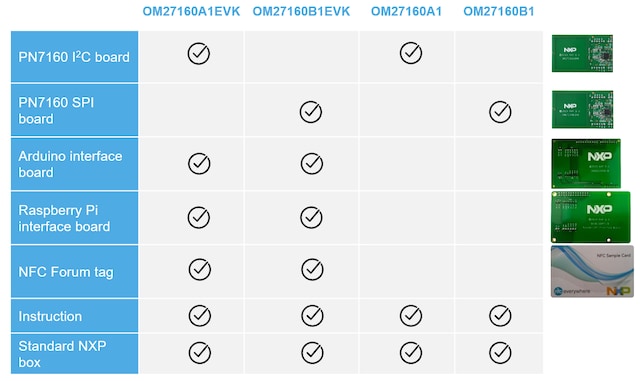

  • Kit Contains:

    • 1 development board with I²C interface
    • 1 Arduino interface board
    • 1 Raspberry Pi interface board
    • 1 NFC Forum compliant NFC tag
  • $89.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
OM27160B1EVK-Image

Click to expand

  • OM27160B1EVK
    Active

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

  • Kit Contains:

    • 1 development board with SPI interface
    • 1 Arduino interface board
    • 1 Raspberry Pi interface board
    • 1 NFC Forum compliant NFC tag
  • $74.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
OM27160B1-Image

Click to expand

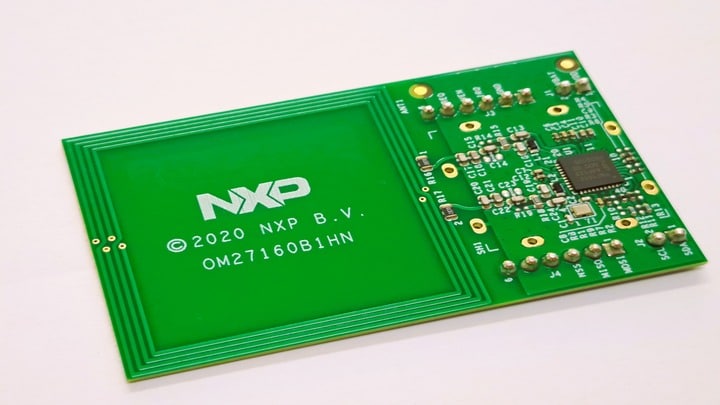

  • OM27160B1
    Active

  • OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

  • Kit Contains:

    • 1 development board with SPI interface
  • $51.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
