CLRC663 plus NFC Frontend Development Kit for Access Management Applications

OM26630FDK

Roll over image to zoom in

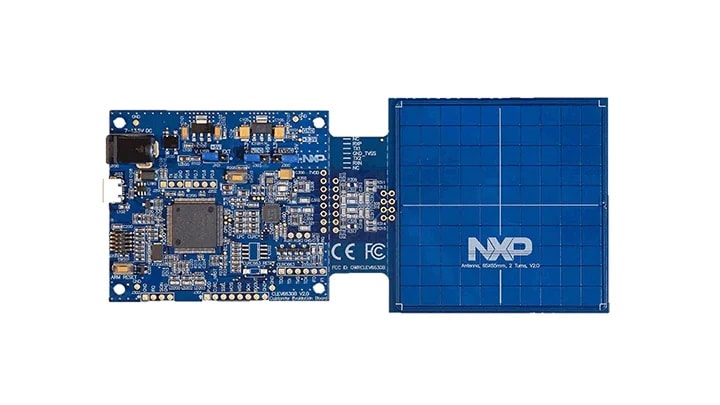

OM26630FDK is a flexible and easy to use frontend development kit for CLRC663 plus. It contains a CLEV6630B board fully supported by the NFC Cockpit and the NFC Reader Library with a 65*65 mm² antenna optimized for EMVCo applications and a 30*50mm² antenna with matching components optimized for Access Management applications. It also includes 3 small antennas matching PCBs for implementation of custom antenna matching circuit, NFC sample cards based on NTAG216 (NFC Forum type 2 tag) and MIFARE DESFire® EV2, and 10 CLRC663 plus samples in wettable flank HVQFN package.

Product Details

Features

Microcontroller

  • LPC1769 MCU on board, SPI interface accessible for connection of other MCU

Power Management

  • Low-power card detection

Wireless

  • Highest RF performance
  • Artificial damping of the RF field in the middle of the antenna simulating the presence of a PCB or display to demonstrate the expected performance
  • Compliance with all standards relevant to contactless NFC reader operation and EMVCo 2.6

Buy Options

OM26630FDK-Image

Click to expand

  • OM26630FDK
    Active

  • CLRC663 plus NFC Frontend Development Kit for Access Management Applications.

  • Kit Cointains

    • Including the CLEV6630B development board
    • 30x50mm² antenna with matching components
    • 3 small antenna matching PCBs for implementation of custom antenna matching circuit
    • NFC sample cards
    • 10 CLRC663 plus samples in HVQFN package
  • $176.64 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 29
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
CLEV6630B-Image

Click to expand

  • CLEV6630B
    Active

  • CLRC663 plus NFC Frontend Development Board for Access Management Applications.

  • $122.82 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 21
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
