Pioneered by NXP® and Embedded Artists, the LPCXpresso™ development platform includes low-cost LPCXpresso target boards to get you up and running quickly. Designed for simple, rapid prototyping and evaluation, LPCXpresso™ development boards work with the LPCXpresso IDE and other common partner toolchains. LPCXpresso™ is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

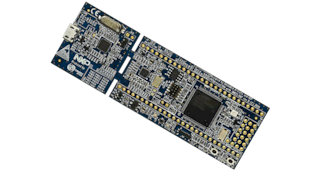

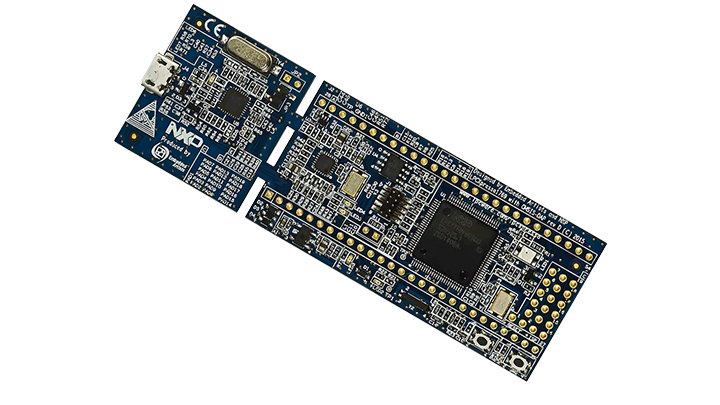

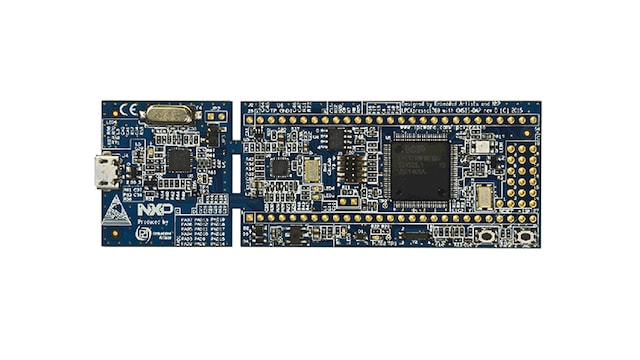

This LPCXpresso™ board is populated with the LPC1769 to demonstrate and enable evaluate of the features of the LPC1700 product series. The board includes an on-board, CMSIS-DAP compatible debug probe as well as a connector for use with 3rd party debug probes.
Note: When using the OM13085 board with the LPCXpresso IDE, version 7.9.0 that tool is required.
Order Number: OM13085
LPCXpresso board for LPC1769 with CMSIS DAP probe.
