Evaluation Kit – Valves Controller SoC

KITVALVECNTLEVM
Active

Roll over image to zoom in

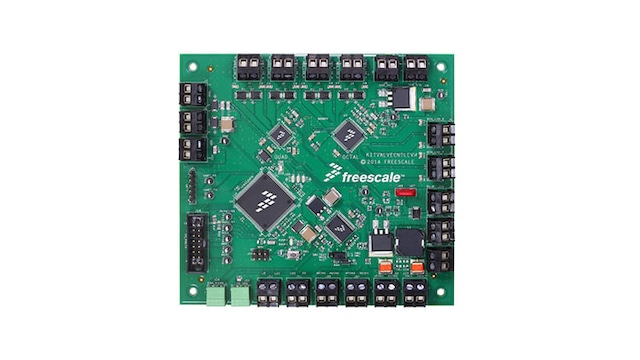

The KITVALVECNTLEVM is a valve controller evaluation kit composed by the Octal valve controller SoC (MC34SB0800) and the Quad valve controller SoC (MC34SB0410), with an MCU (S12- 16 bit) and a system basic chip (MC33903) designed for the industrial hydraulic and pneumatic system.

Thanks to the plug and play evaluation module controlled by a friendly graphical user interface, the user can evaluate quickly and easily the performance of these products and build their own system in a short time.

Product Details

Features

Through this Plug and Play Kit can Control

  • Each device separately or together
  • High Side Safe Switch
  • (x12) Valve Drivers in regulated or PWM mode
  • DC Motor output by SPI or an external pin
  • High side driver for general purpose
  • (x3) Low side drivers for general purpose
  • (x6) ADC input

Also can Monitor

  • Duty-cycle applied on the valve drivers
  • Current value on the valve drivers
  • Overcurrent detection
  • Open Load detection
  • Over temperature detection
  • Valve driver state in real time
  • Die temperature
  • Internal voltage regulator
  • ADC input value

Buy Options

KITVALVECNTLEVM-Image

Click to expand

  • KITVALVECNTLEVM
    Active

  • Evaluation Kit- Anti-lock Braking System (ABS) and Electronic Stability Programme (ESP).

    • KITVALVECNTLEVM Hardware
    • Quick Reference Guide
  • $228.74 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
N true 0 TSPKITVALVECNTLEVMen 5 Data Sheet Data Sheet t520 2 Fact Sheet Fact Sheet t523 2 User Guide User Guide t792 1 en_US 5 1 3.0 English The 34SB0800 device is a valves and pump controller system designed for use in harsh industrial environments. 1415388608311719458411 TSP 1.9 MB None None documents None 1415388608311719458411 /docs/en/data-sheet/MC34SB0800.pdf 1917621 /docs/en/data-sheet/MC34SB0800.pdf MC34SB0800 N N 2014-11-10 MC34SB0800, Fully Integrated Octal Valve Controller System on Chip - Data Sheet /docs/en/data-sheet/MC34SB0800.pdf /docs/en/data-sheet/MC34SB0800.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en May 29, 2015 Data Sheet t520 Data Sheet Data Sheet Y N MC34SB0800, Fully Integrated Octal Valve Controller System on Chip - Data Sheet 2 5 English The Octal Valves and Pump Controller System on Chip (VAPS) consists of four low-side drivers regulated and four low-side drivers digitals, plus a high side to control a DC motor. This simple solution is suitable for loads with high inrush current and allows driving to high frequency (up to 5 kHz). To use the chip, a simple serial peripheral interface (SPI) communication is needed. With this communication, users can perform control and diagnostic functions directly on the chip. 1415652021182725759725 TSP 519.4 KB None None documents None 1415652021182725759725 /docs/en/fact-sheet/SB0800FS.pdf 519366 /docs/en/fact-sheet/SB0800FS.pdf SB0800FS N N 2016-10-31 SB0800FS, Octal Valves and Pump Controller System on Chip - Fact Sheet /docs/en/fact-sheet/SB0800FS.pdf /docs/en/fact-sheet/SB0800FS.pdf Fact Sheet N Y 736675474163315314 2025-02-24 pdf N en May 17, 2016 Fact Sheet t523 Fact Sheet Fact Sheet Y N SB0800FS, Octal Valves and Pump Controller System on Chip - Fact Sheet 3 5 English The quad valves and pump controller system on chip (VAPS) consists of four low side drivers regulated and a high side to control a DC motor. 1415652455577693301621 TSP 375.1 KB None None documents None 1415652455577693301621 /docs/en/fact-sheet/SB0410FS.pdf 375053 /docs/en/fact-sheet/SB0410FS.pdf SB0410FS N N 2016-11-01 SB0410FS, Quad Valves and Pump Controller System on Chip - Fact Sheet /docs/en/fact-sheet/SB0410FS.pdf /docs/en/fact-sheet/SB0410FS.pdf Fact Sheet N Y 736675474163315314 2025-02-24 pdf N en Jun 1, 2016 Fact Sheet t523 Fact Sheet Fact Sheet Y N SB0410FS, Quad Valves and Pump Controller System on Chip - Fact Sheet 4 3.0 English The SB0410 device is a SMARTMOS<sup>&#174;</sup> valve and motor controller system designed for use in harsh industrial environments. 1415912327772711337779 TSP 1.6 MB None None documents None 1415912327772711337779 /docs/en/data-sheet/MC34SB0410.pdf 1615290 /docs/en/data-sheet/MC34SB0410.pdf MC34SB0410 N N 2014-11-13 MC34SB0410, Fully Integrated Quad Valve Controller System on Chip - Data Sheet /docs/en/data-sheet/MC34SB0410.pdf /docs/en/data-sheet/MC34SB0410.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en May 29, 2015 Data Sheet t520 Data Sheet Data Sheet Y N MC34SB0410, Fully Integrated Quad Valve Controller System on Chip - Data Sheet 5 1.0 English The KITVALVECNTLEVM Evaluation Board facilitates the development of hydraulic and pneumatic systems that use either the SB0800 Octal Valves Controller SoC or the SB0410 Quad Valves Controller SoC. 1433259020779726370728 TSP 3.7 MB None None documents Y None 1433259020779726370728 /docs/en/user-guide/KTVALVECNTLEVMUG.pdf 3686845 /docs/en/user-guide/KTVALVECNTLEVMUG.pdf KTVALVECNTLEVMUG N N 2015-06-02 KTVALVECNTLEVMUG, KITVALVECNTLEVM Valve Controller SoC Evaluation Kit - User&#8217;s Guide /docs/en/user-guide/KTVALVECNTLEVMUG.pdf /docs/en/user-guide/KTVALVECNTLEVMUG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Jun 1, 2015 User Guide t792 User Guide User Guide N N KTVALVECNTLEVMUG, KITVALVECNTLEVM Valve Controller SoC Evaluation Kit - User&#8217;s Guide false en_US 0 false en false 0 KITVALVECNTLEVM downloads en true 0 Y TSP Data Sheet 2 /docs/en/data-sheet/MC34SB0800.pdf 2014-11-10 1415388608311719458411 TSP 1 May 29, 2015 Data Sheet Data Sheet The 34SB0800 device is a valves and pump controller system designed for use in harsh industrial environments. None /docs/en/data-sheet/MC34SB0800.pdf English 1917621 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC34SB0800.pdf MC34SB0800, Fully Integrated Octal Valve Controller System on Chip - Data Sheet /docs/en/data-sheet/MC34SB0800.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 3.0 N N MC34SB0800, Fully Integrated Octal Valve Controller System on Chip - Data Sheet 1.9 MB MC34SB0800 N 1415388608311719458411 /docs/en/data-sheet/MC34SB0410.pdf 2014-11-13 1415912327772711337779 TSP 4 May 29, 2015 Data Sheet Data Sheet The SB0410 device is a SMARTMOS<sup>&#174;</sup> valve and motor controller system designed for use in harsh industrial environments. None /docs/en/data-sheet/MC34SB0410.pdf English 1615290 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC34SB0410.pdf MC34SB0410, Fully Integrated Quad Valve Controller System on Chip - Data Sheet /docs/en/data-sheet/MC34SB0410.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 3.0 N N MC34SB0410, Fully Integrated Quad Valve Controller System on Chip - Data Sheet 1.6 MB MC34SB0410 N 1415912327772711337779 Fact Sheet 2 /docs/en/fact-sheet/SB0800FS.pdf 2016-10-31 1415652021182725759725 TSP 2 May 17, 2016 Fact Sheet Fact Sheet The Octal Valves and Pump Controller System on Chip (VAPS) consists of four low-side drivers regulated and four low-side drivers digitals, plus a high side to control a DC motor. This simple solution is suitable for loads with high inrush current and allows driving to high frequency (up to 5 kHz). To use the chip, a simple serial peripheral interface (SPI) communication is needed. With this communication, users can perform control and diagnostic functions directly on the chip. None /docs/en/fact-sheet/SB0800FS.pdf English 519366 None Fact Sheet 2025-02-24 N /docs/en/fact-sheet/SB0800FS.pdf SB0800FS, Octal Valves and Pump Controller System on Chip - Fact Sheet /docs/en/fact-sheet/SB0800FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 5 N N SB0800FS, Octal Valves and Pump Controller System on Chip - Fact Sheet 519.4 KB SB0800FS N 1415652021182725759725 /docs/en/fact-sheet/SB0410FS.pdf 2016-11-01 1415652455577693301621 TSP 3 Jun 1, 2016 Fact Sheet Fact Sheet The quad valves and pump controller system on chip (VAPS) consists of four low side drivers regulated and a high side to control a DC motor. None /docs/en/fact-sheet/SB0410FS.pdf English 375053 None Fact Sheet 2025-02-24 N /docs/en/fact-sheet/SB0410FS.pdf SB0410FS, Quad Valves and Pump Controller System on Chip - Fact Sheet /docs/en/fact-sheet/SB0410FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 5 N N SB0410FS, Quad Valves and Pump Controller System on Chip - Fact Sheet 375.1 KB SB0410FS N 1415652455577693301621 User Guide 1 /docs/en/user-guide/KTVALVECNTLEVMUG.pdf 2015-06-02 1433259020779726370728 TSP 5 Jun 1, 2015 User Guide User Guide The KITVALVECNTLEVM Evaluation Board facilitates the development of hydraulic and pneumatic systems that use either the SB0800 Octal Valves Controller SoC or the SB0410 Quad Valves Controller SoC. Y None /docs/en/user-guide/KTVALVECNTLEVMUG.pdf English 3686845 None User Guide 2023-06-19 N /docs/en/user-guide/KTVALVECNTLEVMUG.pdf KTVALVECNTLEVMUG, KITVALVECNTLEVM Valve Controller SoC Evaluation Kit - User&#8217;s Guide /docs/en/user-guide/KTVALVECNTLEVMUG.pdf documents 132339537837198660 User Guide N Y en None N t792 pdf 1.0 N N KTVALVECNTLEVMUG, KITVALVECNTLEVM Valve Controller SoC Evaluation Kit - User&#8217;s Guide 3.7 MB KTVALVECNTLEVMUG N 1433259020779726370728 true Y Tools
