Flexis JM board with SD Card drivers and USB connectivity

DEMOFLEXISJMSD

Roll over image to zoom in

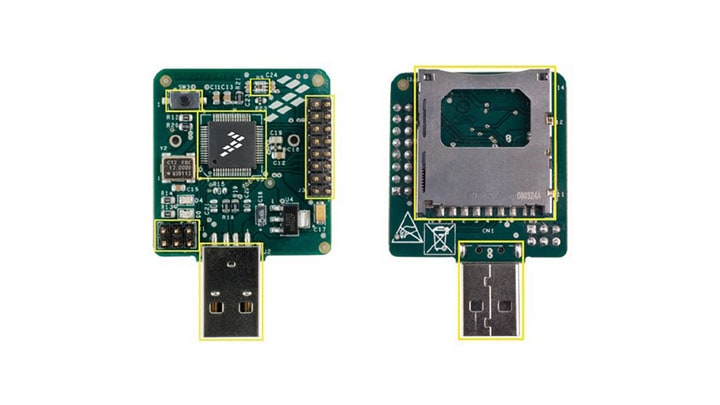

The NXP® SD Card Reader (DEMOFLEXISJMSD) reference design allows you to read and write files stored in a SD Card from a PC or another USB host-enabled system through the full speed USB module included. The SD Card interface is based on SPI protocol. Mass Storage Device class is used to implement the high level communication between the host application and data memory.

This design is an alternative Flexis® JM family development board and you can exchange a MCF51JM128 for a MC9S08JM60 (pin-to-pin compatible). It includes two user LED’s, one button and one expansion header that allows users to access other MCU peripherals like SPI, RGPIO, etc.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V1 Processors

  • MCF51JM: Flexis 32-Bit V1 ColdFire USB Microcontroller

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

Features

Microcontroller

  • MC9S12G240, 100 LQFP

Memory

  • 240 KB flash
  • 4096B EEPROM
  • 11298B RAM

Connectivity

  • SCI
  • SPI
  • MSCAN
  • 1 ea. high-speed CAN Physical Layer Transceiver
  • 1 ea, Enhanced LIN Physical Layer Transceiver
  • RS-232 Serial Data Physical Layer Transceiver
  • 5 2x8, 0.1" CTR, to access MCU pin signals

Power Management

  • Power input from OSBDM, Tower System, or External 12 V Barrel Connector
  • 25 MHz Bus Frequency
  • Internal oscillator
  • Integrated open source BDM (OSBDM)

User Components

  • 4 user Push-Button Switches
  • 4 user LED Indicators
