A highly extensible platform for application development of QN9020

QN9020DK Active

Roll over image to zoom in

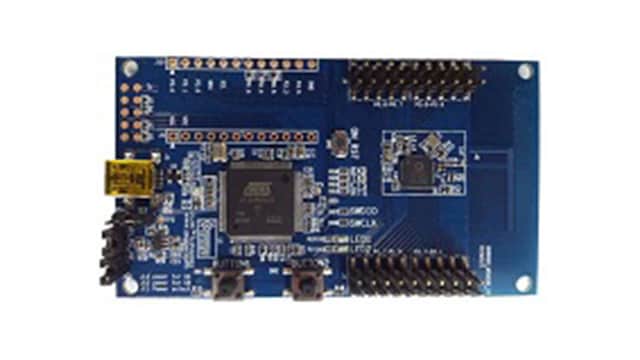

The QN9020DK board is designed to make it as easy as possible to get started with your project based on NXP® QN9020 Bluetooth Low Energy SOC.

The QN9020DK board integrates buttons, Piezo buzzer, LED for easy way to reset chip and indicate chip status. The DK board also provides useful interfaces such as USB port for UART communication and JLink debug, GPIO sensor.

The part number / Ordering code (12NC): QN9020DK / 9353 067 79598

Note: QN9090/30 is preferred for any new Bluetooth LE design.

Product Details

Features

Connectivity

  • Contains Jlink-OB offering SWD and UART interfaces for QN9020 debug and communication
  • Mini USB port for power and communication port
  • Power source select jumper used for power source selection
  • Extended QN9020 GPIO Port used for interface extension
  • UART interface used as communication port for QN9020 device

Power Management

  • Current measurement jumpers used for measuring the QN9020 device power consumption

Components

  • Button1/2 used as input
  • LED1/2 used as output to indicate QN9020 status

Buy Options

QN9020DK-Image

Click to expand

  • QN9020DK
    Active

  • a highly extensible platform for application development of QN9020.

    • QN9020 DK Board
    • QN9020 USB dongle
    • USB cable
  • For a quantity of 1
Order from distributors
