Development Kits for PN7120 Plug’n Play NFC Controller

OM5577 End of Life

Roll over image to zoom in

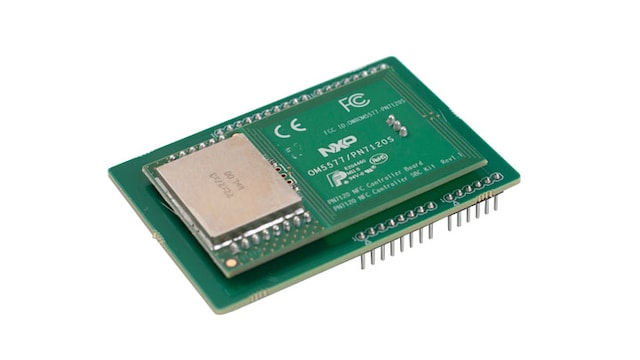

OM5577 is a flexible and easy-to-use Single Board Computer (SBC) Kit for the PN7120 NFC Controller. Three different development kits are available and make the integration of NFC easy to different platforms such as RaspberryPi, BeagleBone Black and any boards featuring Arduino® compatible header, including many LPCXpresso, Kinetis and i.MX boards.

Product Details

Supported Devices

RFID

NFC Readers

  • PN7120: NFC Controller with Integrated Firmware and NCI Interface for Home Appliances

Features

  • Implemented according to device requirements v1.3

Support

  • Integrated communication protocols to support Read/Write, Peer-to-Peer, and Card Emulation mode
  • Supports NFC Forum Type 1/2/3/4/5 Tags
  • Drivers for easy integration into Linux and Android based systems
  • NCI over I²C host interface
  • Ready to use demo examples included for reading and writing tags as well as interfacing other NFC enabled devices via Peer-to-Peer

Buy Options

OM5577-Image

Click to expand

  • OM5577
    End of Life

  • Development Kits for PN7120 Plug’n Play NFC Controller.
