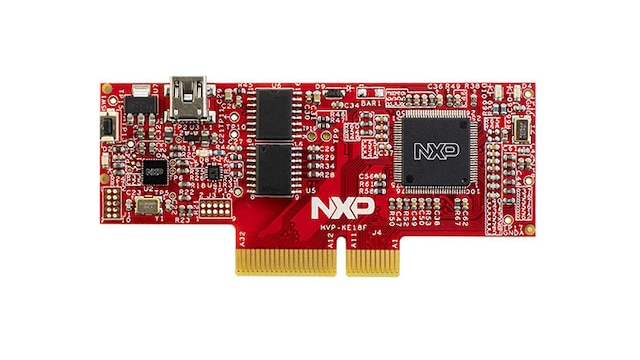

HVP-KE18F Controller Card

HVP-KE18F Active

Roll over image to zoom in

The HVP-KE18F controller card is a development platform for the Kinetis® KE1x family that, in combination with the HVP-MC3PH high-voltage development platform, provides ready-made software and hardware development for high-voltage motor control and power conversion applications.

Product Details

Supported Devices

Processors and Microcontrollers

KE Series Arm Cortex-M4/M0+

  • KE1xF: Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm® Cortex®-M4

Features

Microcontroller

  • Accommodates target MCU MKE18F512VLL16

Debug

  • SWD isolation up to 5 KV
  • Programmable OpenSDA v2 platform preloaded with the CMSIS-DAP interface
  • Onboard serial line isolation, allowing safe debugging and safe user interface
  • Design optimized for low noise

Buy Options

HVP-KE18F-Image

Click to expand

  • For a quantity of 1
Order from distributors
