8-bit 5V Full-featured MCU with EEPROM and TSI
The S08PT MCUs integrate key features like touch sensing interface (TSI), EEPROM, and a motor control flex timer to simplify design and to help reduce system cost. The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.
Product Details
Features
Memory Combination
- Increased flash/RAM ratio (4 KB RAM in PT60)
- On-chip EEPROM with 500K~1M write/erase cycle
Robust GPIO and High Drive Capability
- Up to 57 GPIO with filtering in 64-pin
- Up to eight pins with 20 mA sink drive capability
- Two pins with true open drain
16-ch. Touch-Sensing Interface
- Dedicated hardware module to sense touch input, minimum software intervention
- Functional in all power modes (run, wait and low-powerstop), wake up capable from the stop
- Designed for operation in harsh environments with high sensitivity
- Enhanced watchdog and programmable CRC
- Highly configurable through hardware and software
Feature-Rich Integration
- 6-ch. + 2-ch. + 2-ch. FlexTimer: 2 x MTIM
- Real-time counter
- 3 x SCI, 2 x SPI, I2C
- Enhanced watchdog and programmable CRC
- High accuracy internal clock

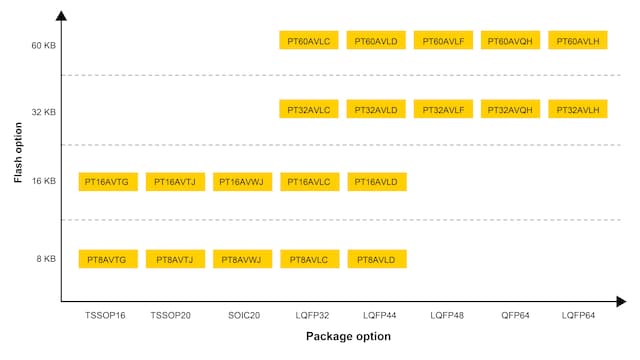

Part numbers include: MC9S08PT16AVLC, MC9S08PT16AVLD, MC9S08PT16AVTG, MC9S08PT16AVTJ, MC9S08PT16AVWJ, MC9S08PT16VLC, MC9S08PT16VLD, MC9S08PT16VTG, MC9S08PT16VTJ, MC9S08PT16VWJ, MC9S08PT32AVLC, MC9S08PT32AVLD, MC9S08PT32AVLF, MC9S08PT32AVLH, MC9S08PT32AVQH, MC9S08PT32VLC, MC9S08PT32VLD, MC9S08PT32VLF, MC9S08PT32VLH, MC9S08PT32VQH, MC9S08PT60AVLC, MC9S08PT60AVLD, MC9S08PT60AVLF, MC9S08PT60AVLH, MC9S08PT60AVQH, MC9S08PT60VLC, MC9S08PT60VLD, MC9S08PT60VLF, MC9S08PT60VLH, MC9S08PT60VQH, MC9S08PT8AVLC, MC9S08PT8AVLD, MC9S08PT8AVTG, MC9S08PT8AVTJ, MC9S08PT8AVWJ, MC9S08PT8VLC, MC9S08PT8VLD, MC9S08PT8VTG, MC9S08PT8VTJ, MC9S08PT8VWJ.
