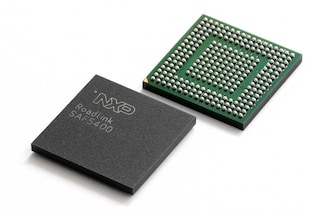

RoadLINK® SAF5400 Single Chip Modem for V2X
Design Files
Quick reference to our
design files types.
Sign in to access authorized secure files. Learn more about secure access rights.
‌
‌
Secure Element IC for V2X Communication
SXF1800 is based on highly secure microcontroller used also to protect mobile payments, providing highest proven assets protection. The hardware architecture is based on Arm SC300 core, along with the latest generation of public crypto hardware coprocessor, 2 MB flash module, and hardware SPI interface.
The device is programmed with NXP's Java Card Operating System (JCOP) allowing for running of Java applets. The V2X functionality is implemented with a combination of two applets - the V2X applet for V2X cryptographic operations and key management, and the GS applet for storage of generic data, e.g. certificates. The functionality comprises, ECC private key management (generation, derivation, deletion), ECDSA signature generation, ECIES encryption and decryption, storage of generic data, as well as getting information about the device. Complete software occupies half of the available flash space, leaving 1MB for user data.
Product Details
Block Diagram
Choose a diagram:
Features
Key Features
- Provides cryptographic services per IEEE 1609.2 and ETSI TS 103 097
- Common Criteria certified hardware platform at EAL5+ level per smart card Protection Profile
- Common Criteria EAL4+ certified with compliance to C2C HSM PP version 1.4.0
- FIPS 140-2 Level 3 certified (Level 4 for physical security)
- Crypto agile, with native support for ECC curves in short Weierstrass form (NIST, Brainpool)
- Secure firmware updates, allowing for fixes and new functionality to be added in the field
- Signature generation performance exceeding single and dual channel requirements, with low latency ensuring freshness of a message
- Secure storage for lifetime of private keys, as well as for CA certificates and other sensitive data
- Qualified in accordance with AEC-Q100
- Ambient operating temperature: -40 °C to +105 °C
- High-speed SPI interface: up to 5 Mbit/sec in mode 0
- Single 1.8 V supply
Flash Memory
- 1 MB for customer data
- 15 years data retention
