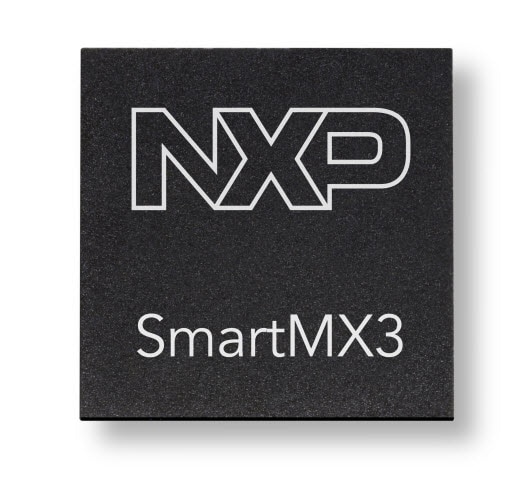

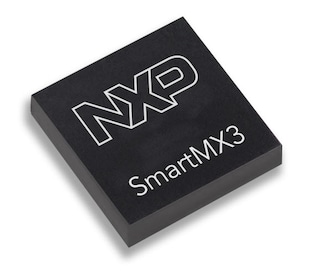

SmartMX3 P71D321: Secure and Flexible Microcontroller
SmartMX3 products build on the proven and reliable IntegralSecurity architecture, which demonstrates worldwide interoperability and standard compliance. The new generation of NXP’s proven and reliable SmartMX microcontroller family delivers the high security and performance across all target applications.
The SmartMX3 P71D321 secure element platform does not only provide a first-choice hardware solution but also offers built-in high-performance libraries for communication, memory control, and cryptography modules to enhance performance and shorten development cycles. Moreover, NXP® is offering a full system solution powered by JCOP operating system. Running JCOP 4 on the P71D321 allows a good match of hardware and software capabilities resulting in excellent performance figures and enabling a fast time to market approach for upcoming security solutions.
As the need for protection and vigilance has become a front-of-mind topic for everyone in technology, and security has become a guiding principle for digital development, NXP’s SmartMX family acts an anchor of hardware trust. The SmartMX3 P71D321 has a multi-faceted architecture providing a multipronged defense that protects data at every point, from the factory to the end user’s hand.
SmartMX products have been used in more than 120 countries, for EMV payment cards and eGovernment solutions, with more than 7 billion SmartMX ICs shipped to date. The SmartMX microcontroller family is one of the leading choices for secure applications, including ePassports, eIDs, eHealth cards, eDriver’s licenses, access management, and payment.
Product Details
Features
Performance
- Best-in-class performance:
- <200ms for an M/Chip transaction
- <2s for ePassport SAC
- Broadest reader interoperability by self-tuned EMD noise reduction
- Fast operating system download to flash memory (100kb/s)
Technology
- First payment and secure identification device implemented in CMOS40 technology
- Full flash memory solution up to 344 KB
- Up to 500 KB non-volatile memory available
- Most advanced RF frontend technology to maximize communication sensitivity
Security
- Advanced IntegralSecurity 3.0 architecture
- EMVCo and CC EAL 6+ (PP 0084 with loader package 2) certification taking latest attacks on security into account
- Available with fully certified symmetric, hash and asymmetric cryptography libraries
Solutions
- Multi-application enabled by MIFARE FleX® with MIFARE® DESFire® EV2 up to 16KB and MIFARE Plus® EV1 up to 4KB (including MIFARE Classic® support)
- Optional implementation of software libraries to fasten up time to market (TTM)
- Full system solution available with JCOP® 4 operating system
- Broad portfolio of payment and secure identification applets
Customer Support Package
- Well established SmartCardComposer development environment
- Soft-mask device to accelerate hardware validation
- Full set of system documentation and customer training
