S12XHY Scalable Cluster Microcontrollers (MCUs) with CAN
The MC9S12XHY family is an optimized, automotive 16-bit MCU product line focused on low cost and high performance.
Targeted for the lower end of automotive instrument cluster applications, the MC9S12XHY family includes support for CAN and LIN/J2602 communication and delivers typical cluster requirements such as stepper motor control with stepper stall detection (SSD) and LCD driver.
Get all the advantages and efficiencies of a 16-bit MCU while retaining the cost-effective, power consumption, electromagnetic compatibility and code-size efficiency advantages currently enjoyed by users of Our 8-bit and 16-bit MCU families.
Product Details

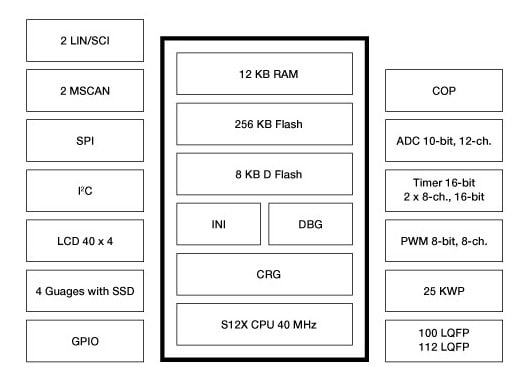

Features
- CPU12XV1 CPU core, with up to 40 MHz bus frequency
- Up to 256 KB on-chip flash with ECC and 8 KB data flash with ECC
- Up to 12 KB on-chip SRAM
- Up to 40 x 4 LCD driver
- Stepper motor controller with up to four drivers, plus four stepper stall detector modules (one for each motor)
- Phase-locked loop (PLL) frequency multiplier with internal filter supporting 4–16 MHz amplitude controlled Pierce oscillator
- Pulse width modulation (PWM) and two timer modules (TIM0 and TIM1)
- Up to 12-channel, 10-bit resolution successive approximation analog-to-digital converter (ADC)
- Serial peripheral interface (SPI) module and inter-IC bus interface (IIC) module
- Two serial communication interface (SCI) modules supporting LIN communications
- Two multi-scalable controller area network (MSCAN) modules (supporting CAN protocol 2.0A/B)
- On-chip voltage regulator (Vreg) for regulation of input supply and all internal voltages
- Autonomous periodic interrupt (API) and up to 25 key wake-up inputs
- This product is included in NXP product longevity program, with assured supply for a minimum of 15 years after launch
Buy/Parametrics
10 results
Include 0 NRND
Part | Order | CAD Model | Status | Package Type | Package Termination Count | Flash (kB) | RAM (kB) | EEPROM (kB) | Operating Frequency [Max] (MHz) | CAN | SPI | Supply Voltage [max] (V) | Supply Voltage [min] (V) | Ambient Operating Temperature (Min to Max) (℃) | GPIO | Budgetary Price excluding tax |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | LQFP100 | 100 | 128 | 8 | — | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 85 | — | 1K @ US$4.38 | |||
Active | LQFP112 | 112 | 128 | 8 | — | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 85 | — | 1K @ US$4.64 | |||
Active | LQFP100 | 100 | 128 | 8 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 105 | 76 | 1K @ US$4.59 | |||
Active | LQFP112 | 112 | 128 | 8 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 105 | 88 | 1K @ US$4.85 | |||
Active | LQFP100 | 100 | 256 | 12 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 85 | 76 | 1K @ US$4.82 | |||
Active | LQFP112 | 112 | 256 | 12 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 85 | 88 | 1K @ US$5.05 | |||
Active | LQFP100 | 100 | 256 | 12 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 125 | 76 | 1K @ US$5.28 | |||
Active | LQFP112 | 112 | 256 | 12 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 125 | 88 | 1K @ US$5.56 | |||
Active | LQFP100 | 100 | 256 | 12 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 105 | 76 | 1K @ US$5.05 | |||
Active | LQFP112 | 112 | 256 | 12 | 8 | 40 | 2 | 1 | 5.5 | 4.5 | -40 to 105 | 88 | 1K @ US$5.31 |
Documentation
Quick reference to our documentation types.
1-10 of 11 documents
Application Note (5)
Application Note Software (1)
Data Sheet (1)
-
MC9S12XHY256 Covers MC9S12XHY Family - Data Sheet[MC9S12XHY256RMV1]Featured
Errata (1)
-
MC9S12XHY256, Mask 0M23Y[MSE9S12XHY256_0M23Y]
Fact Sheet (1)
-
S12XHY Fact Sheet[S12XHYFS]Featured
Technical Notes (1)
1-10 of 11 documents
Compact List
Application Note (5)
Application Note Software (1)
Data Sheet (1)
-
MC9S12XHY256 Covers MC9S12XHY Family - Data Sheet[MC9S12XHY256RMV1]Featured
Errata (1)
-
MC9S12XHY256, Mask 0M23Y[MSE9S12XHY256_0M23Y]
Fact Sheet (1)
-
S12XHY Fact Sheet[S12XHYFS]Featured
Technical Notes (1)
User Guide (1)
-
16-bit MCU: S12XHY256 Automotive Cluster Demo - User’s Guide[S12XHY256ACDUG]
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 6 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
Active -

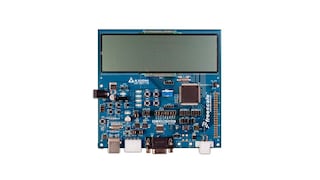

Evaluation and Development Boards9S12XHY256 Demonstration BoardFeatured
