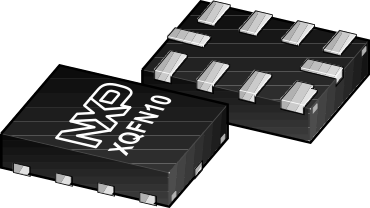

SOT1049-3: XQFN10

Overview

plastic, extremely thin quad flat package; 10 terminals; 0.5 mm pitch; 1.55 mm x 2 mm x 0.5 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT1049-3	XQFN10	surface mount	quad	XQFN	1.55 x 2 x 0.5	10	plastic

Manufacture Code	Reference Codes	Issue Date
SOT1049	MO255(JEDEC	2011-03-30

Products

Part	Description	Quick access
NX3L2267GM	Low-ohmic dual single-pole double-throw analog switch	View parametrics
NX3DV42GM	Dual high-speed USB 2.0 double-pole double-throw analog switch	View parametrics
CBTL01023GM	3.3 V, one differential channel, 2 : 1 multiplexer/demultiplexer switch for PCI Express Gen3	View parametrics
NX3L4357GM	Low-ohmic single-pole triple-throw analog switch with enable input	View parametrics
P3S0200GM	2:1 and 1:2 I3C-bus multiplexer	View parametrics
NX3L4684GM	Low-ohmic dual single-pole double-throw analog switch	View parametrics
NX3DV221GM		View parametrics
