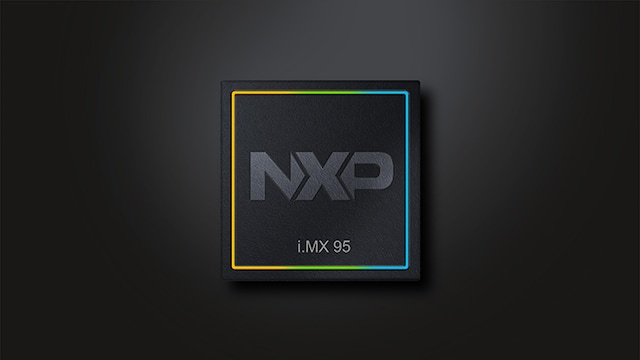

i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU

iMX95 Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

The i.MX 95 applications processor family delivers safe, secure, power efficient edge computing for use in applications that require powerful AI-accelerated vision processing and immersive graphics abilities with functional safety, advanced security, and high-performance data processing in aerospace, automotive edge, commercial IoT, industrial, medical, and network platforms.

This page contains information on a preproduction product. Specifications and information herein are subject to change without notice.

Block Diagram

i.MX 95 Applications Processor

iMX95
Get diagram PDF

Features

Multicore Processing

  • 6x Arm® Cortex-A55 multicore complex
  • 1x Arm Cortex-M7
  • 1x Arm Cortex-M33
  • NXP eIQ® Neutron N3-1024S Neural Processing Unit (2 TOPS dense)

Memory

  • On-Chip Memory
  • 1376kB SRAM (ECC)
  • External Memory
  • Up to 6.4GT/s x32 LPDDR5/LPDDR4X (with Inline ECC & Inline Encrpytion)
  • 3x SD/ SDIO3.0/ eMMC5.1
  • 1x Octal SPI, including support for SPI NOR and SPI NAND memories

Connectivity

  • 1x10GbE + 2x Gb Ethernet w/TSN; AVB and IEEE 1588 for sync and EEE
  • 1x USB 3.0 Type C with PHY + 1x USB 2.0 Type C with PHY
  • 5x CAN FD
  • 8x UART/USART/Profibus, 8x I²C, 8x SPI, 2x I3C
  • 1x 8-ch, 12-bit ADC
  • 2x 32-pin FlexIO interfaces (camera, bus or serial I/O)
  • 2x PCIe Gen 3 1x lane

External Memory

  • Up to 6.4GT/s x32 LPDDR5/LPDDR4x (w/ Inline ECC)
  • 3x SD 3.0/ SDIO3.0/ eMMC5.1
  • 1x Octal SPI, including support for SPI NOR and SPI NAND memories

Graphics

  • 3D GPU: OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0
  • 2D GPU

Display Interfaces

  • 1x 333Mpixel/s MIPI-DSI (4-lane, 2.5 Gbps/lane) supporting 4kp30 or 3840x1440p60
  • Up to 1080p60 LVDS Tx (2x 4-lane or 1x 8-lane)

Camera Interfaces

  • 500 Mpixel/s MIPI-CSI and ISP (2x 4-lane, 2.5 Gbps/lane) with PHY (1 mux with DSI)
  • Up to 2x4kp30, 4x1080p60, or 8x1080p30 cameras with MIPI virtual channels

Audio

  • 17x I²S TDM (32-bit @ 768KHz), SPDIF Tx/Rx
  • 8 channel PDM microphone input
  • MQS: Medium Quality Sound output (sigma-delta modulator)

Operating Systems

  • Linux® OS
  • Android™ OS
  • FreeRTOS

Process

  • 16nm FinFET
  • Commercial OS support including Green Hills Software and QNX

Packaging

  • 19x19mm, 0.7mm pitch; and 15x15mm, 0.5mm pitch

Temp Range (Junction)

  • Automotive/Extended Industrial - 40°C to 105°C Ta to 125°C Tj
  • Industrial -40°C Ta to 105°C Tj
  • Commercial 0°C to 90°C Tj

General

  • Functional Safety: IEC61508 (SIL2) for Industrial and ISO26262 (ASIL-B) for Automotive Security: EdgeLock Secure Enclave (Advanced Profile) with EdgeLock Accelerator (V2X) including Post Quantum Cryptography (PQC)
