14-Cell Battery Pack Emulator to Supply MC33771C BCC EVBs

BATT-14CEMULATOR

Roll over image to zoom in

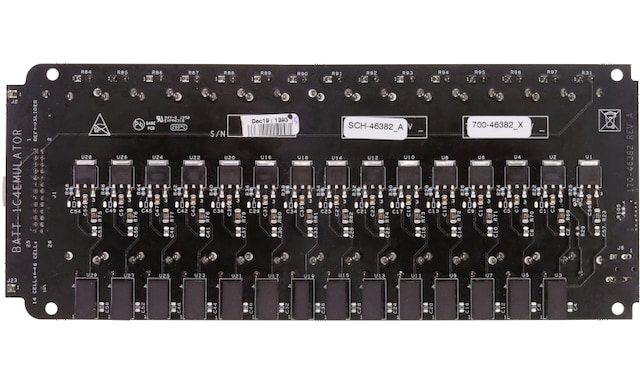

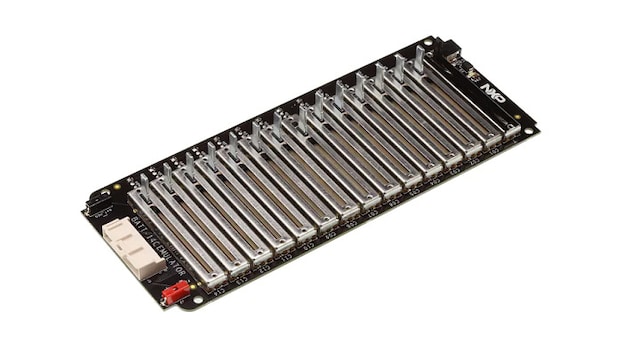

The BATT-14CEMULATOR board can emulate a multi-cell battery pack that can be easily hooked-up to the evaluation boards for MC33771C battery cell controllers (BCC):

  • RD33771CDSTEVB
  • FRDM33771CSPEVB

The user can connect the BATT-14CEMULATOR board for a quick evaluation of NXP BCC ICs, or to help the users in their software development. These boards basically provide a very intuitive way to change the voltage across any of the 14 cells of an emulated battery pack as well as the voltage across some analog inputs of the BCC IC that are typically used as temperature sensors.

Product Details

Supported Devices

Power Management

Battery Cell Controllers

  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC

Features

Power Input

  • 12 V

Cell Voltage Output

  • Adjustable individual cell voltage (1.25 V to 4.9 V)

Temperature Sensor Emulator

  • Adjustable (0 V to 4.9 V)

User Components

  • LED power indicator

Buy Options

BATT-14CEMULATOR-Image

Click to expand

  • BATT-14CEMULATOR

  • 14-Cell Battery Pack Emulator to Supply MC33771C BCC EVBs.

  • BATT-14CEMULATOR, 14-Cell Slider Battery Pack Emulator

  • $393.30 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-14CTCABLE25-Image

Click to expand

  • $34.50 USD
  • For a quantity of 1
Order from distributors
