Smart Access Platform Solution

SMART-ACCESS-PLATFORM

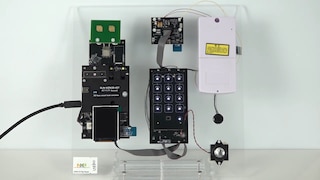

Click over video to play

The Smart Access Platform showcases NXP’s smart access control technologies in a modular fashion to demonstrate multiple use cases. This solution is based on Matter, UWB, face recognition, NFC, fingerprint and password that can all be used either as a standalone or in combination for enabling multi-factor security. The modularity and flexibility of this platform empowers you to select the technologies needed for your product’s security, connectivity and cost requirements

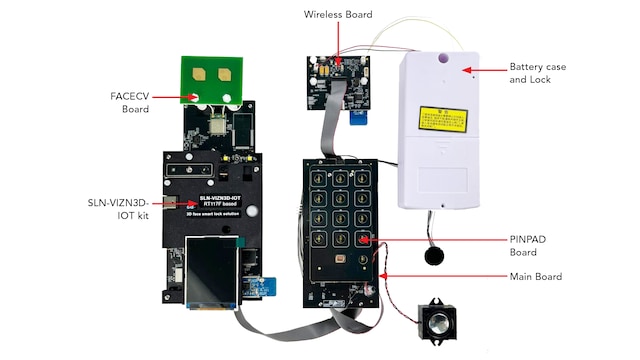

The Smart Access Platform integrates multiple smart lock solutions which include pin pad and fingerprint matching algorithm running on high-efficiency LPC55S69 MCU, NXP’s Edge Ready turnkey face recognition solution based on iMXRT106F/iMXRT117F crossover MCUs and a variety of connectivity options, which include K32W041 Matter over Thread, QN9090 Bluetooth Low Energy solution, SR150 secure UWB solution for IoT devices and CLRC663 low-power NFC solution.

Block Diagram

Choose a diagram:

Hardware

Smart Access Block Diagram

Smart Access Platform Solution Block Diagram

NXP EdgeReady Smart Access Platform Block Diagram
Get diagram PDF

Supported Devices

RFID

NFC Readers

  • CLRC66303HN: CLRC663 plus Family: High-Performance NFC Frontends

Wireless Connectivity

Bluetooth Low Energy

  • QN9090-30: QN9090/30: Bluetooth Low-Energy MCU with Arm®Cortex®-M4 CPU, Energy Efficiency, Analog and Digital Peripherals and NFC Tag Option

Trimension® UWB

  • SR150: Trimension™ SR150: Secure UWB Solution for IoT Devices

Multiprotocol MCUs

  • K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option

Wi-Fi® + Bluetooth® + 802.15.4

  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

LPC5500 Arm Cortex-M33

  • LPC55S6x: High Efficiency Arm® Cortex®-M33-Based Microcontroller Family

i.MX RT Crossover MCUs

  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores

Security and Authentication

Authentication

  • SE051: EdgeLock® SE051: Proven, Easy-to-Use IoT Security Solution with Support for Updatability and Custom Applets

Features

Smart Lock Main System Control

  • Low-power LPC55S69 Arm® Cortex®-M33 smart lock solution with sensor aggregation, HMI interface, voice prompt, fingerprint matching algorithm and NFC
  • User Data Storage

Matter Access Control

  • Matter over Thread network
  • Access control through app via Matter boarder router

UWB Access Control

  • Access Control through UWB Phone
  • Remote Wake-up via BLE

BLE Access Control

  • Access Control though Phone App
  • User Management (ex. Add, Delete and Rename users)

Vision Access Control

  • Offline face detection and recognition
  • 2D and 3D liveness detection and anti-spoofing for security
  • Based on advanced SLN-VIZN3D-IOT turnkey solution

Documentation

Quick reference to our documentation types.

Filters

4 documents

Related Hardware

Quick reference to our board types.
Filters

3 hardware offerings

Design Files

Quick reference to our design files types.
Filters

3 design files

Software

Quick reference to our software types.

Filters

1 software file

  • Configuration Tools

    Smart Access Design Support Files

    URLRev 0Jul 12, 2022 16:54:00SMART-ACCESS-DESIGN-SUPPORT
