FRDMGD3160CSLEVM Half-Bridge Evaluation Board

FRDMGD3160CSLEVM

Roll over image to zoom in

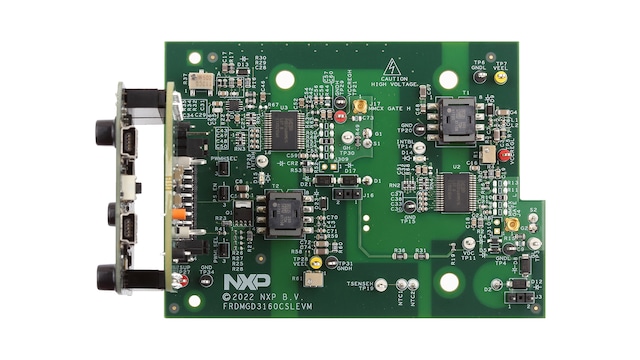

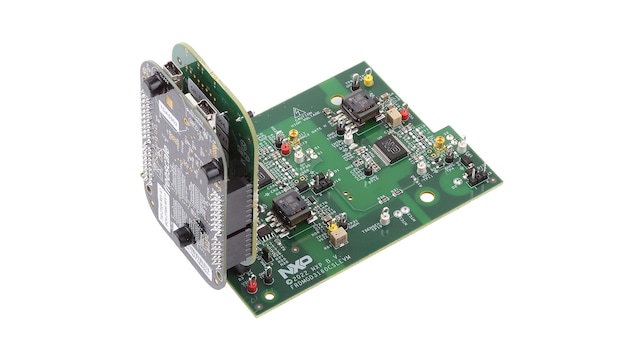

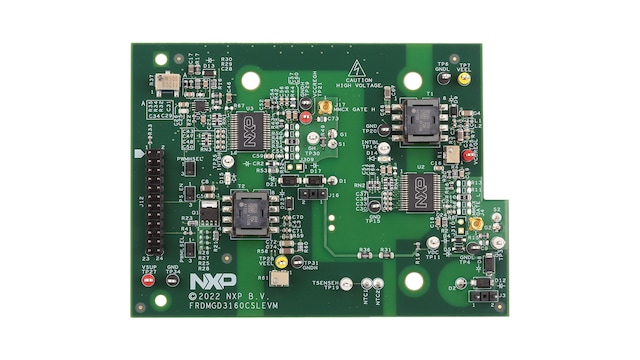

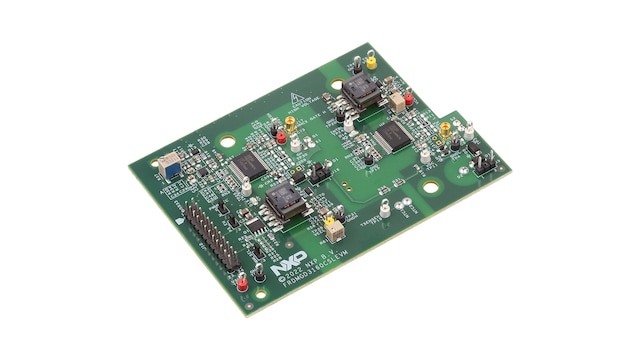

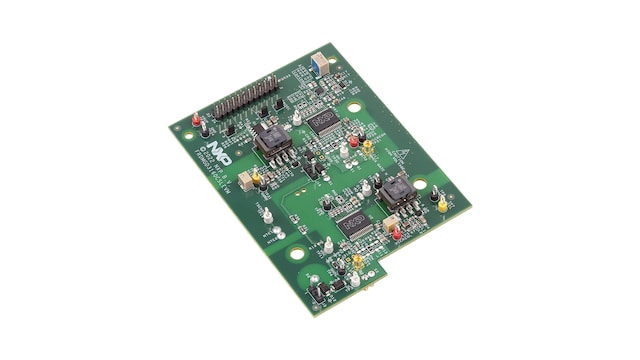

FRDMGD3160CSLEVM is a half-bridge evaluation kit populated with two GD3160 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the GD3160 gate drive devices.

The KITGD316xTREVB translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers. The evaluation kit is designed to connect to a Bosch CSL A-Sample power module for half-bridge evaluations and applications development.

Block Diagram

GD3160 Block Diagram

GD3160 Block Diagram
Get diagram PDF

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3160: Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

Features

Key Features

  • Compatible with Bosch CSL A-Sample power modules
  • Flex GUI available for use with kit
  • SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using Flex GUI
  • Double Pulse and Short Circuit evauations
  • Fiber Optic connections option for external PWM inputs
  • User Guide available

Buy Options

FRDMGD3160CSLEVM-Image

Click to expand

  • FRDMGD3160CSLEVM
    Active

  • FRDMGD3160CSLEVM Half-Bridge Evaluation Board.

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
    • 3.3 V to 5.0 V translator board (KITGD316XTREVB) connected to FRDM-KL25Z
    • USB cable, type A male/type mini B male, 3 ft
    • Quick start guide
  • $433.23 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
FRDM-KL25Z-Image

Click to expand

  • FRDM-KL25Z
    Active

  • Freedom Development Board for Kinetis KL14, KL15, KL24 and KL25 MCUs.

  • Kit Contains

    • FRDM-KL25Z Hardware
    • Quick Reference Card
    • Additional hardware required: USB A-to-MiniB cable (not included)
  • $19.25 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 90
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
