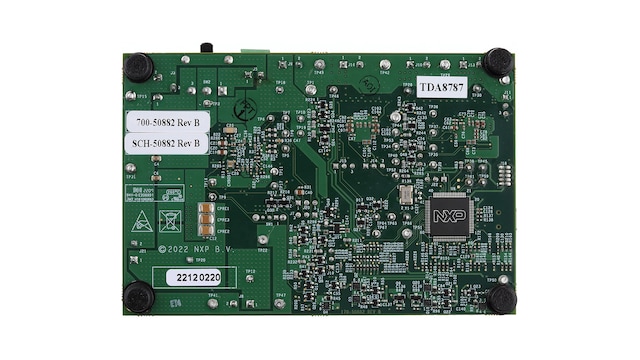

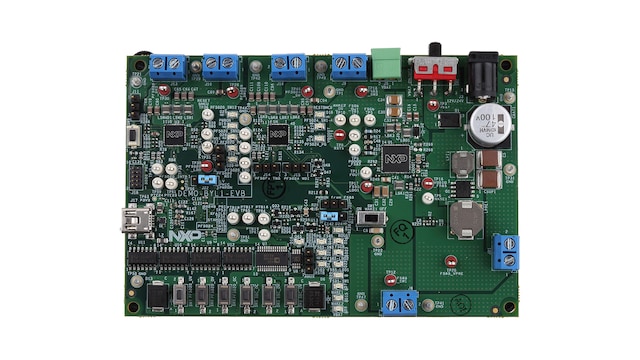

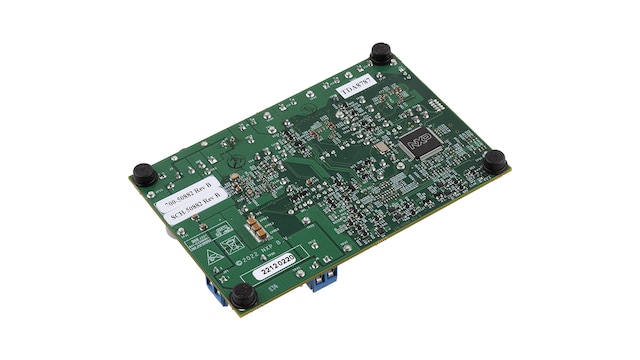

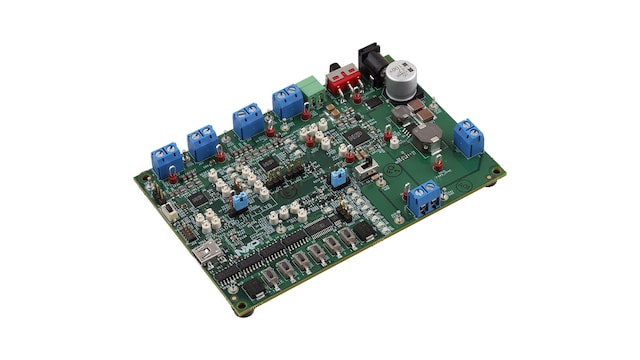

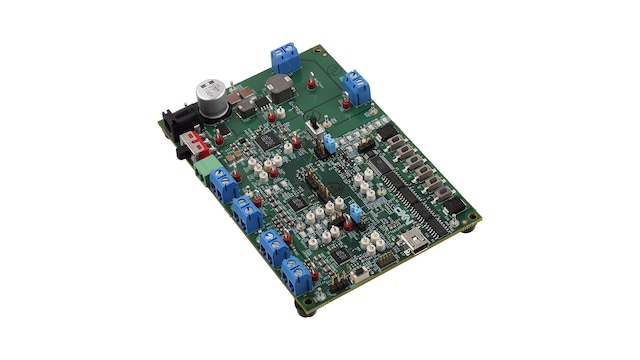

BYLink Multiprocessor Demo Board

DEMO-BYL1-EVB Active

Roll over image to zoom in

The DEMO-BYL1-EVB is a demonstrator design to illustrate the BYLink concept power management solution proposed by NXP for ADAS and multiprocessor automotive applications. The solutions integrates NXP PMIC such as FS8500, PF5024 and PF5020 as a single power solution for a camera application involving a safety MCU and a processing MCU.

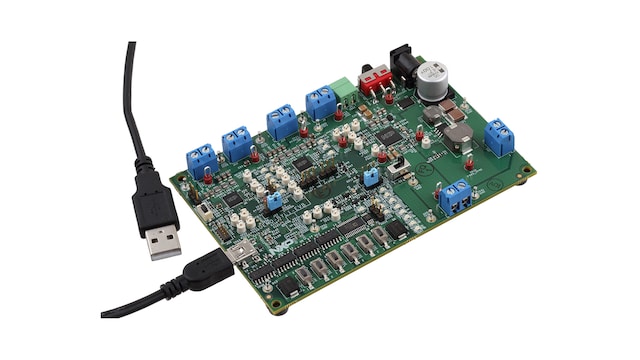

The DEMO-BYL1-EVB kit provides full access to all the features of each PMIC device, such as OTP configuration, power sequencing and safety features. The demonstrator kit comes with a USB cable used as a communication interface between computer and BYLink concept to have control on the full PMIC solution.

Block Diagram

BYLink Tool

BYLink Tool Block Diagram
Get diagram PDF

Supported Devices

Power Management

PMICs

  • PF5020: Multi-Channel (5) PMIC for Automotive Applications – 4 High Power and 1 Low Power, Fit for ASIL B Safety Level
  • PF5024: Multi-Channel (4) PMIC for Automotive Applications – 4 High Power, Fit for ASIL B Safety Level

System Basis Chips

  • FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
  • FS85: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D

Features

Key Features

  • OTP emulation
  • Power sequencing
  • Safety and fault management

Interfaces

  • USB com between PC to demo kit
  • I²C communication to PMIC devices

Topology

  • FS8500 device
  • PF5024 device
  • PF5020 device

Buy Options

DEMO-BYL1-EVB-Image

Click to expand

  • DEMO-BYL1-EVB
    Active

  • BYLink Multiprocessor Demo Board.

  • Kit contains:

    • Assembled and tested evaluation board in an anti-static bag
    • 3.0 ft USB-STD A to USB-B mini cable
    • Jumpers mounted on board
    • Quick start guide
  • $360.24 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
