ColdFire+ MCF51JX Tower® System Module

TWR-MCF51JG Active

Roll over image to zoom in

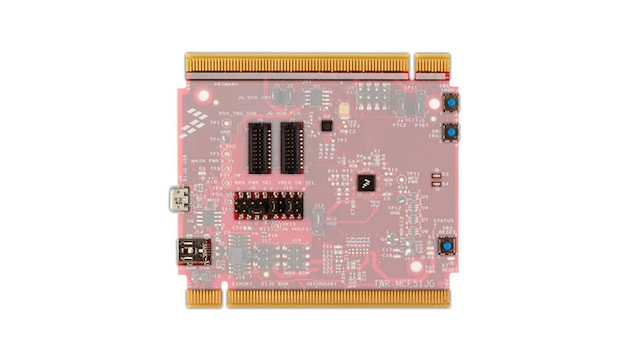

The TWR-MCF51JG is a development module compatible with the Tower® System. It can function as a standalone, low-cost platform for the evaluation of the ColdFire+®+ MCF51JG MCU devices. The TWR-MCF51JG controller module features the MCF51JG, a ColdFire+ 32-bit MCU built on the version 1 (V1) ColdFire® core and enabled by innovative 90nm thin film storage (TFS) flash process technology with FlexMemory. The MCF51Jx families offer a rich combination of additive peripherals including USB, hardware encryption, and more.

The TWR-MCF51JG is available as a standalone product or as a kit (TWR-MCF51JG-KIT) with the Tower System Elevator modules (TWR-ELEV) and a prototyping module (TWR-PROTO). The TWR-MCF51JG module can also be combined with other Tower System peripheral modules to create development platforms for a wide variety of applications.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire+ MCUs

Features

Microcontroller

  • MCF51JG256 ColdFire®+ MCU (50 MHz, 256 KB flash, 64 KB RAM, 5 mm x 5 mm 44-MAPLGA package)

Connectivity

  • Dual role USB interface with Micro-AB USB connector
  • General-purpose Tower® plug-in (TWRPI) socket

Debug

  • On-board debug circuit (OSBDM) with virtual serial port

Audio

  • Serial audio interface (SAI) header

User Components

  • Three-axis accelerometer (MMA8451Q)
  • Two user-controllable LEDs
  • Two user push-button switches and one reset push-button switch

Buy Options

TWR-MCF51JG-Image

Click to expand

  • TWR-MCF51JG
    Active

  • Tower System, ColdFire+ MCU Module, MCF51JG.

    • The TWR-MCF51JG contents include:
      • TWR-MCF51JG board assembly
      • 3ft A to mini-B USB cable for debug interface and power
      • 3ft A to micro-B USB cable for MCF51JG USB interface
      • Micro-A to A adapter for MCF51JG USB host applications
      • Quick start guide
    • The TWR-MCF51JG-KIT contains:
      • TWR-MCF51JG MCU module
      • TWR-ELEV – Primary and Secondary Elevator Modules
      • TWR-PROTO – Prototyping module
  • For a quantity of 1
Order from distributors
TWR-MCF51JG-KIT-Image

Click to expand
