3 Phase Inverter Evaluation Kit for Semikron eMPack Featuring GD3160

RDGD31603PSMKEVM

Roll over image to zoom in

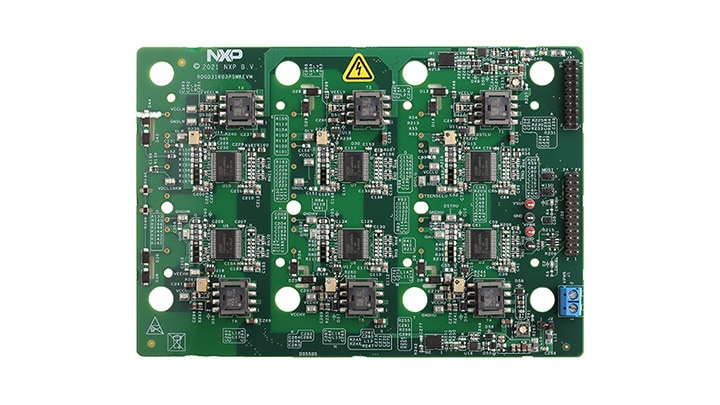

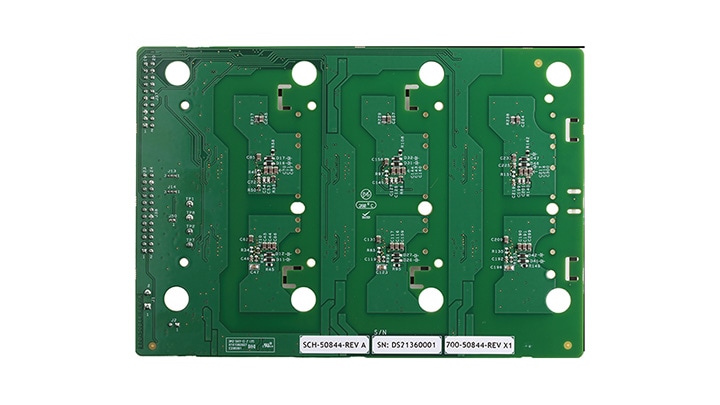

RDGD31603PSMKEVM is a three phase reference design and evaluation kit populated with six GD3160 gate drivers for IGBT/SiC MOSFET devices it is compatible. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with Flex GUI software for communication to the SPI registers on the GD3160 gate drive devices in either daisy chain or standalone configuration.

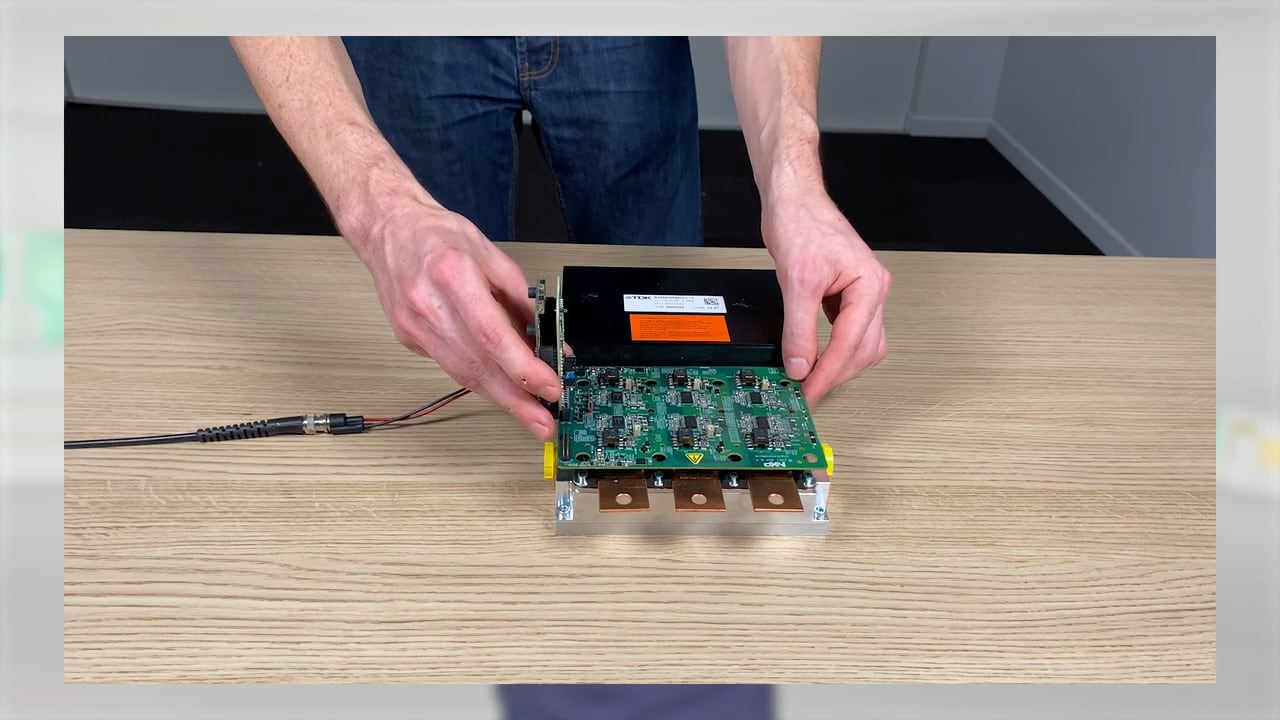

The evaluation kit is designed to be compatible with eMPack power modules, in particular the eMP1300MD12SC2S-APK application kit from Semikron. It can be used for double pulse and short circuit testing on single phase and full three phase applications development.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3160: Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

Features

  • Compatible with Semikron’s eMPack power modules such as eMP1300MD12SC2S-APK application kit (article number 19285392), available on www.semikron.com
  • Flex GUI graphical user interface available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using Flex GUI
  • Double pulse and short circuit evaluations
  • Fiber optic connections for external PWM inputs

Buy Options

RDGD31603PSMKEVM-Image

Click to expand

  • RDGD31603PSMKEVM
    Active

  • 3 Phase Inverter Evaluation Kit for Semikron eMPack Featuring GD3160.

  • Kit contains

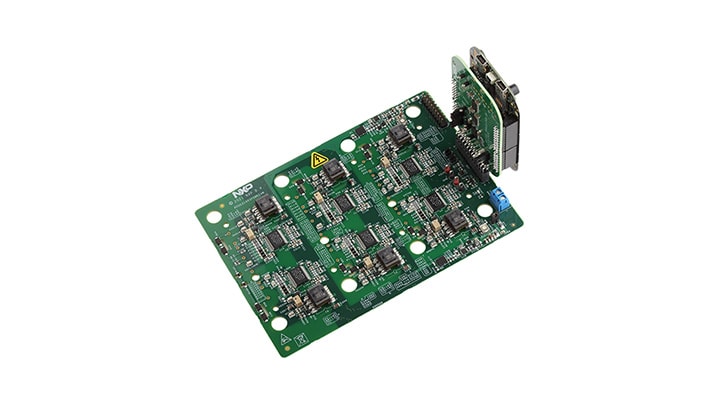

    • KITGD3160TREVB translator with KL25Z MCU
    • Micro USB cable
    • Quick Start Guide
  • $575.46 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 11
    • Shipping: Normally ships 1-2 business days
ADD TO CART
