BESS1500 Battery Junction Box (BJB)

RDBESS772BJBEVB Active

Roll over image to zoom in

The BJB - RDBESS772BJBEVB is a battery junction box (BJB) reference design with electrical transport protocol link (ETPL) communication. This board contains two MC33772 battery sensors for redundant high voltage and current measurements and performs isolation measurements.

The board is equipped with a shunt resistor for current measurements, and it is also prepared for a Hall sensor connection. The programmable gain amplification makes it possible to keep 0.5 % measurement accuracy for a few Ampere to 500 Ampere. This board is part of the RD-BESS1500BUN reference design bundle.

Block Diagram

RDBESS772BJBEVB

RDBESS772BJBEVB Block Diagram
Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

  • MC33772C: 6-Channel Li-Ion Battery Cell Controller IC

Features

Voltage Measurement

  • 6 high-voltage measurements with high accuracy

Current Measurement

  • Fully redundant current measurement up to +/-500 A
  • 0.5% measurement error (IC level only)

Temperature Measurement

  • Shunt temperature measurement for current measurement compensation
  • Pre-charge resistor temperature measurement

Isolation

  • Isolation resistance measurement between high-voltage and low voltage domains

Communication

  • Isolated ETPL communication between BJB and BMU

Buy Options

RDBESS772BJBEVB-Image

Click to expand

  • RDBESS772BJBEVB
    Active

  • BESS1500 Battery Junction Box (BJB).

  • Kit contains:

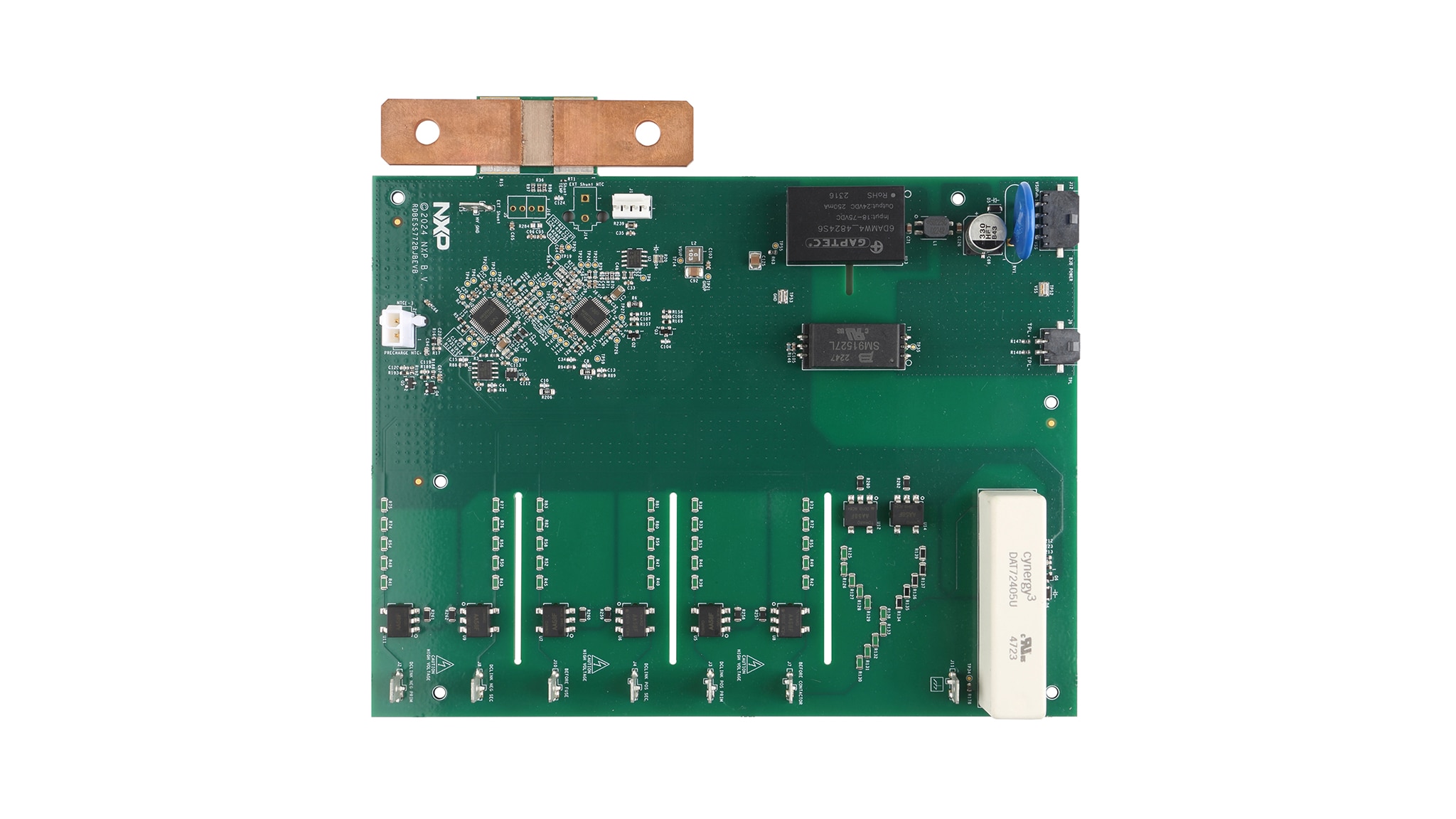

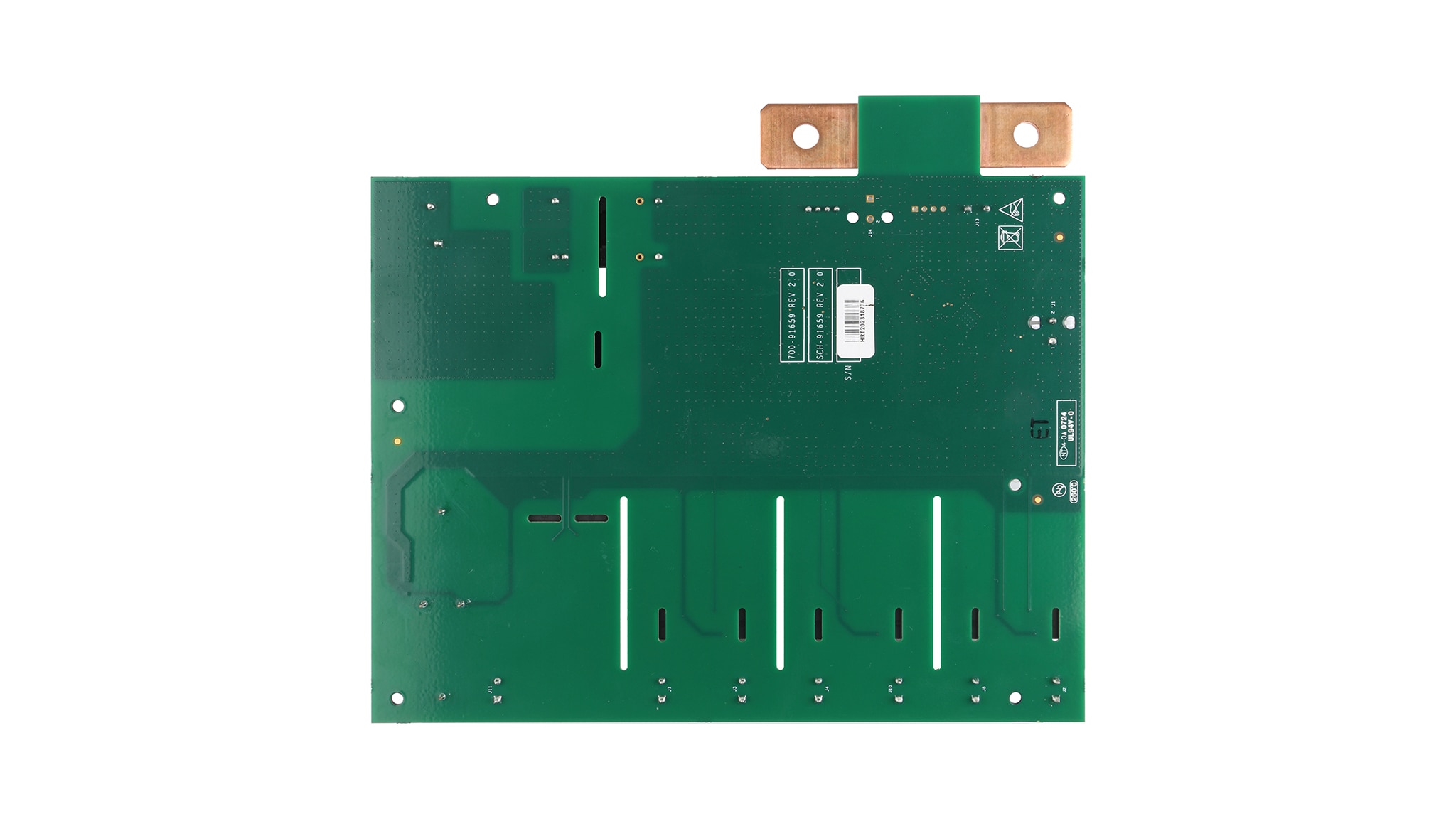

    • One RDBESS772BJBEVB board

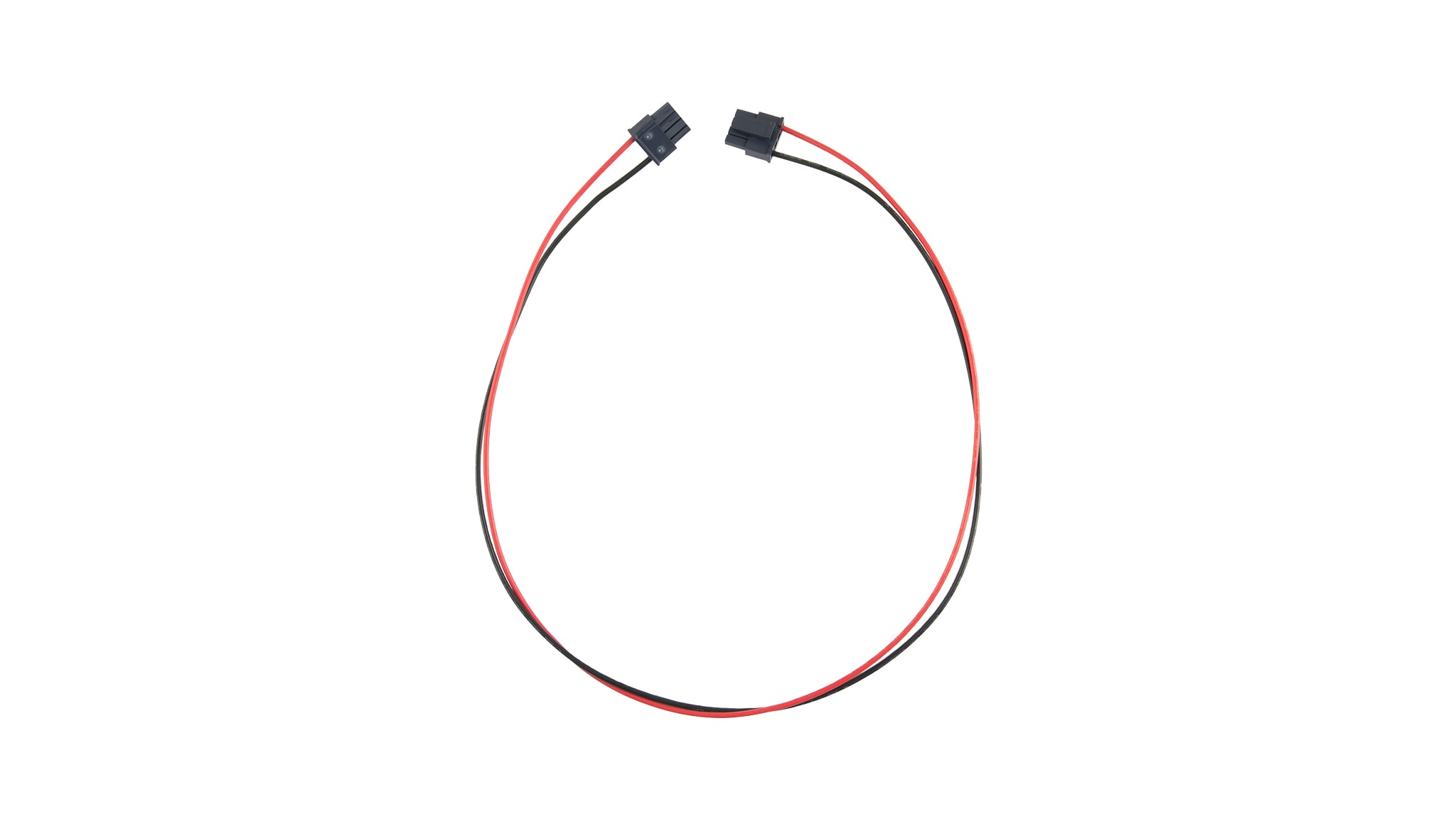

    • One power cord

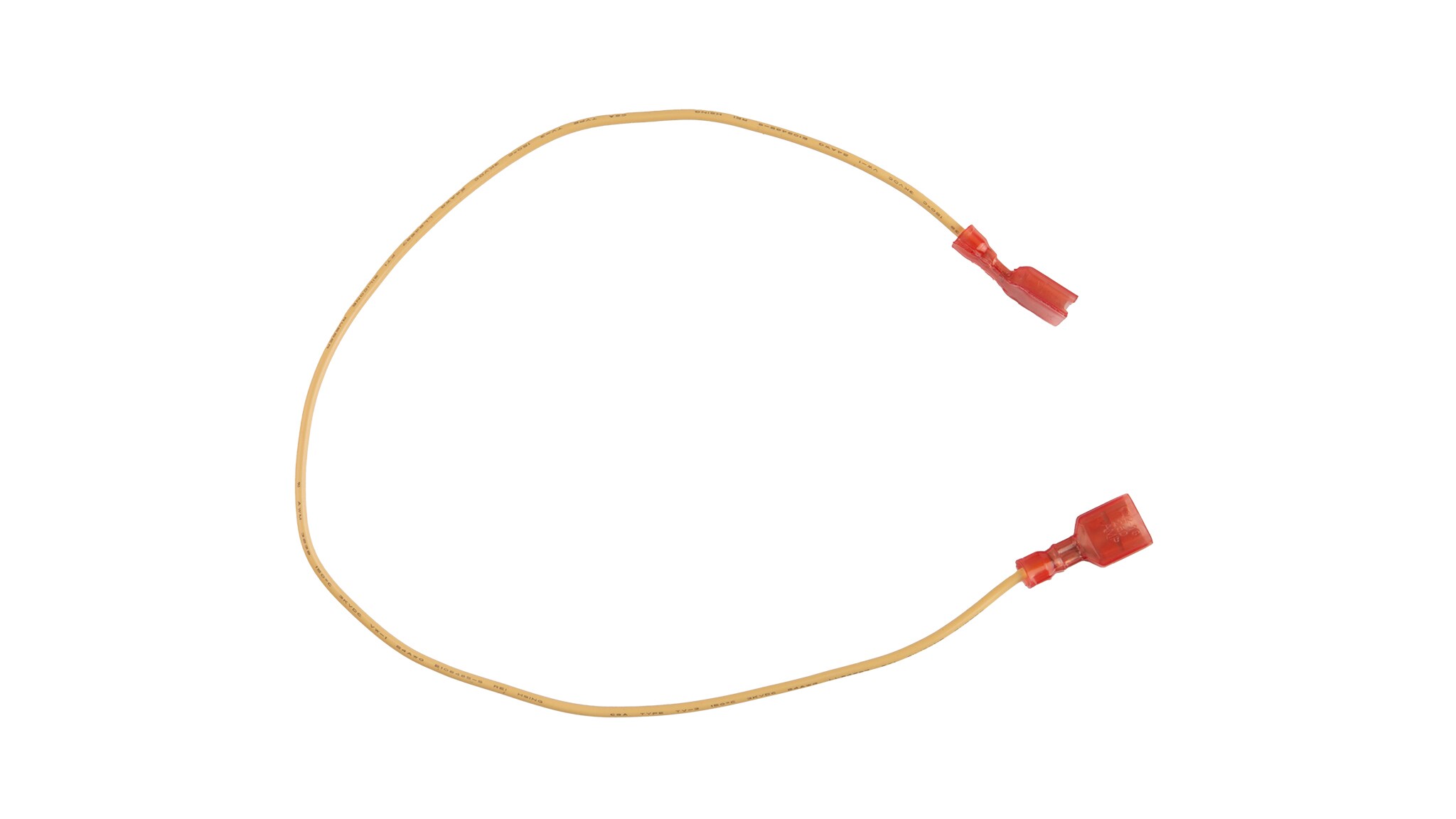

    • Six high-voltage measurement cables

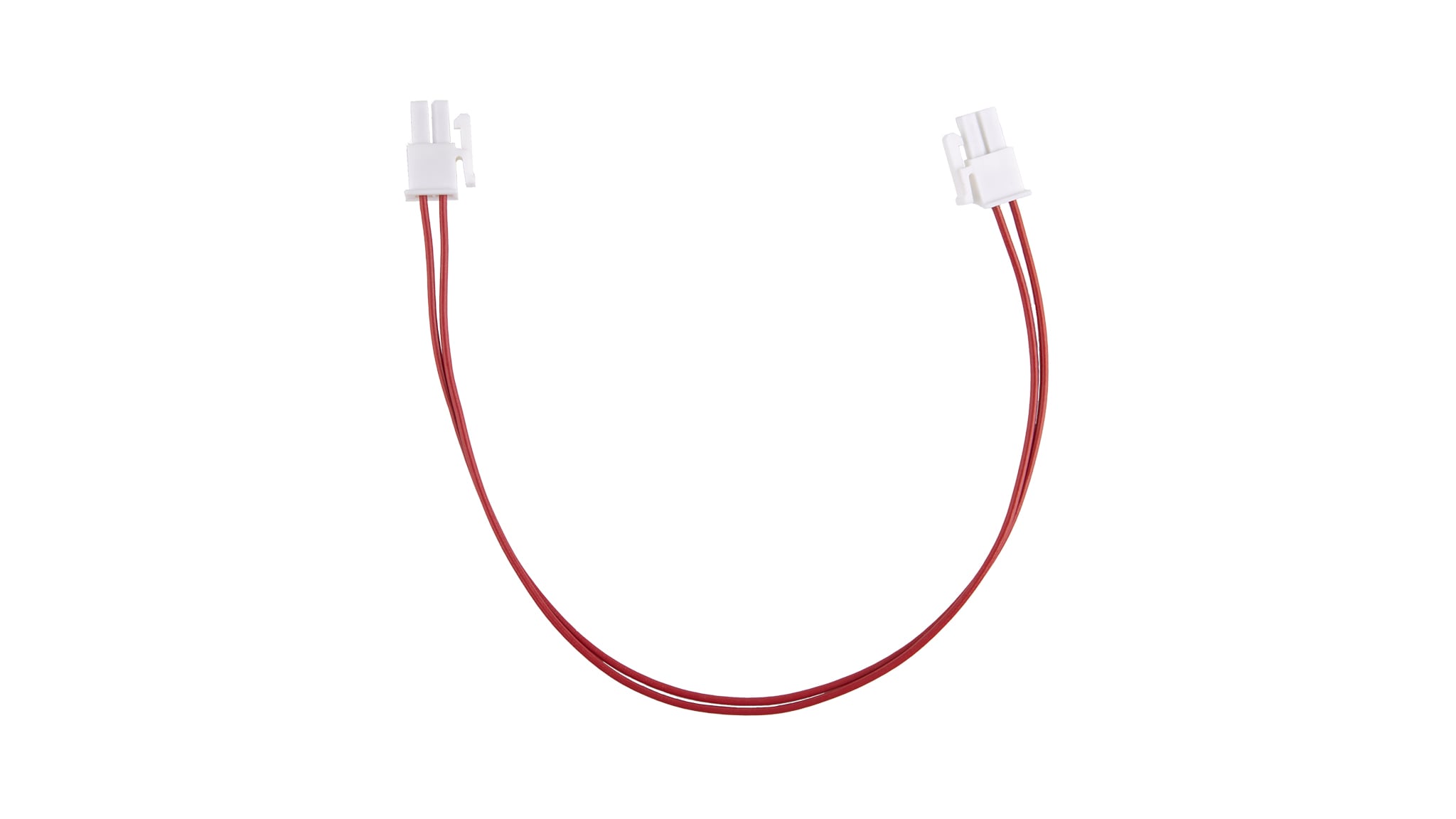

    • Two thermal sensor cables

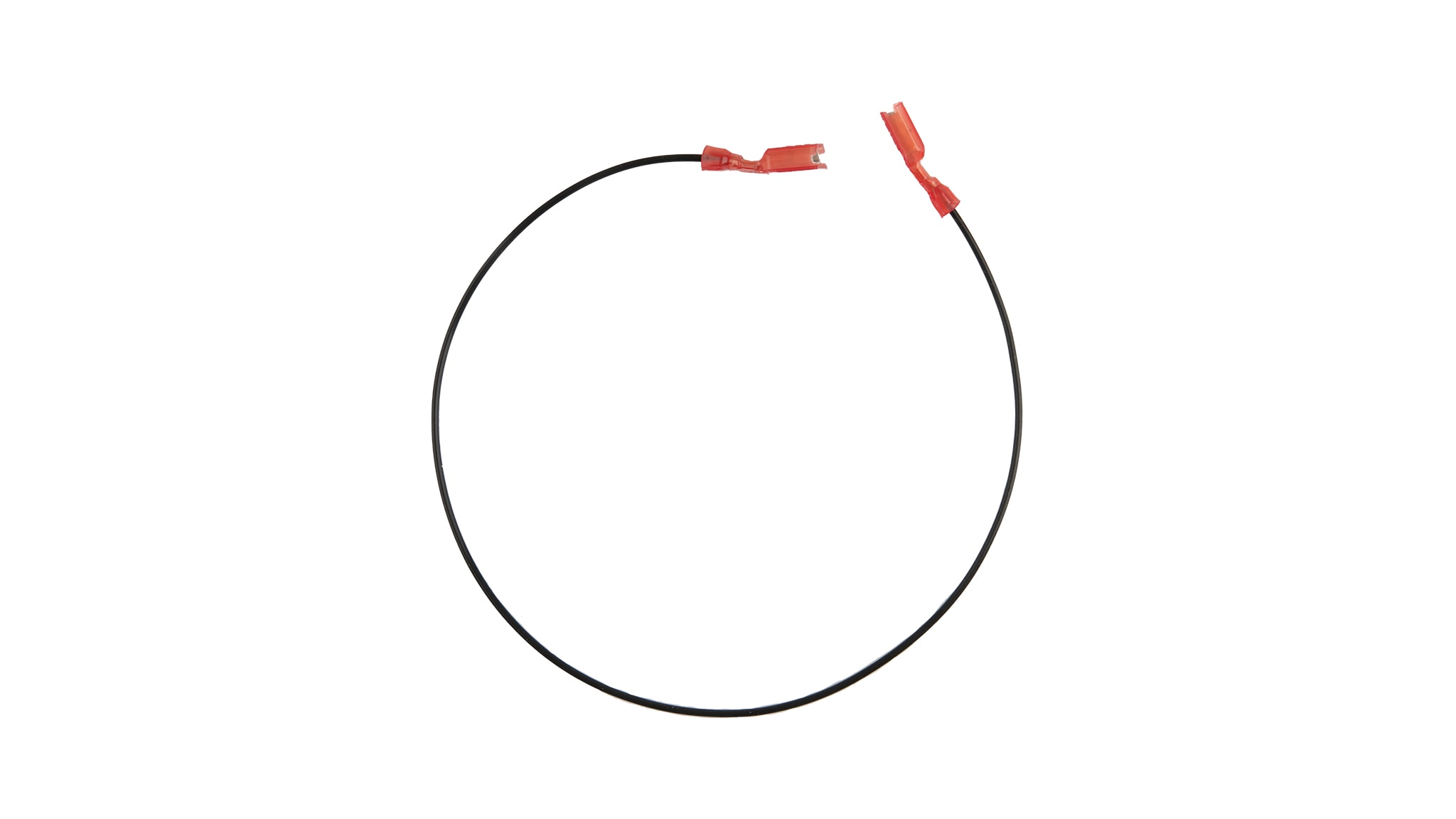

    • One chassis cable
    • One GND cable

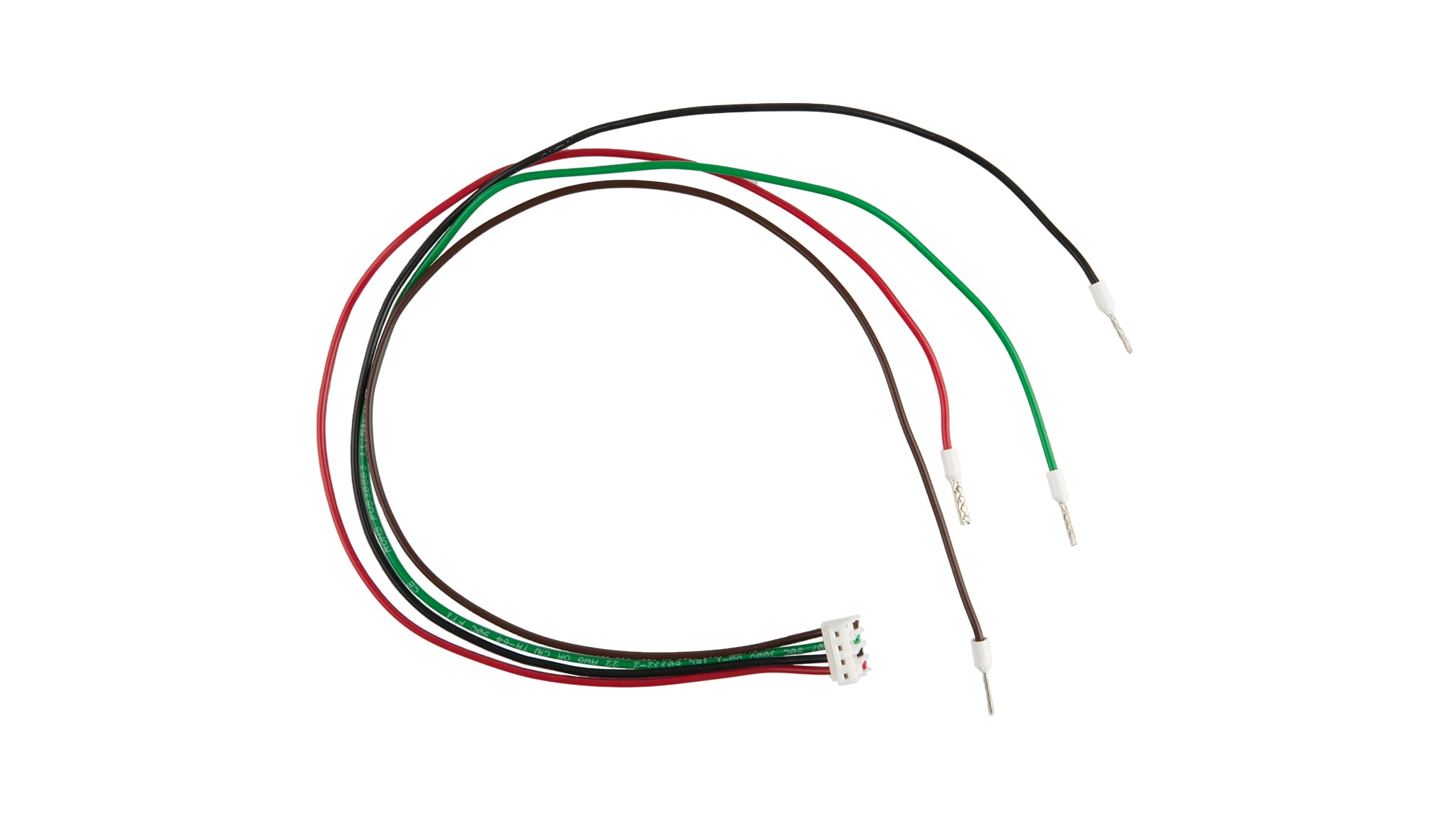

    • Two Hall sensor cables
    • One electrical transport protocol link (ETPL) cable
    • One plexiglass cover
  • $1060.21 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
