KW45 Localization Board Reference Design

RD-KW45-LOCALIZATION

Roll over image to zoom in

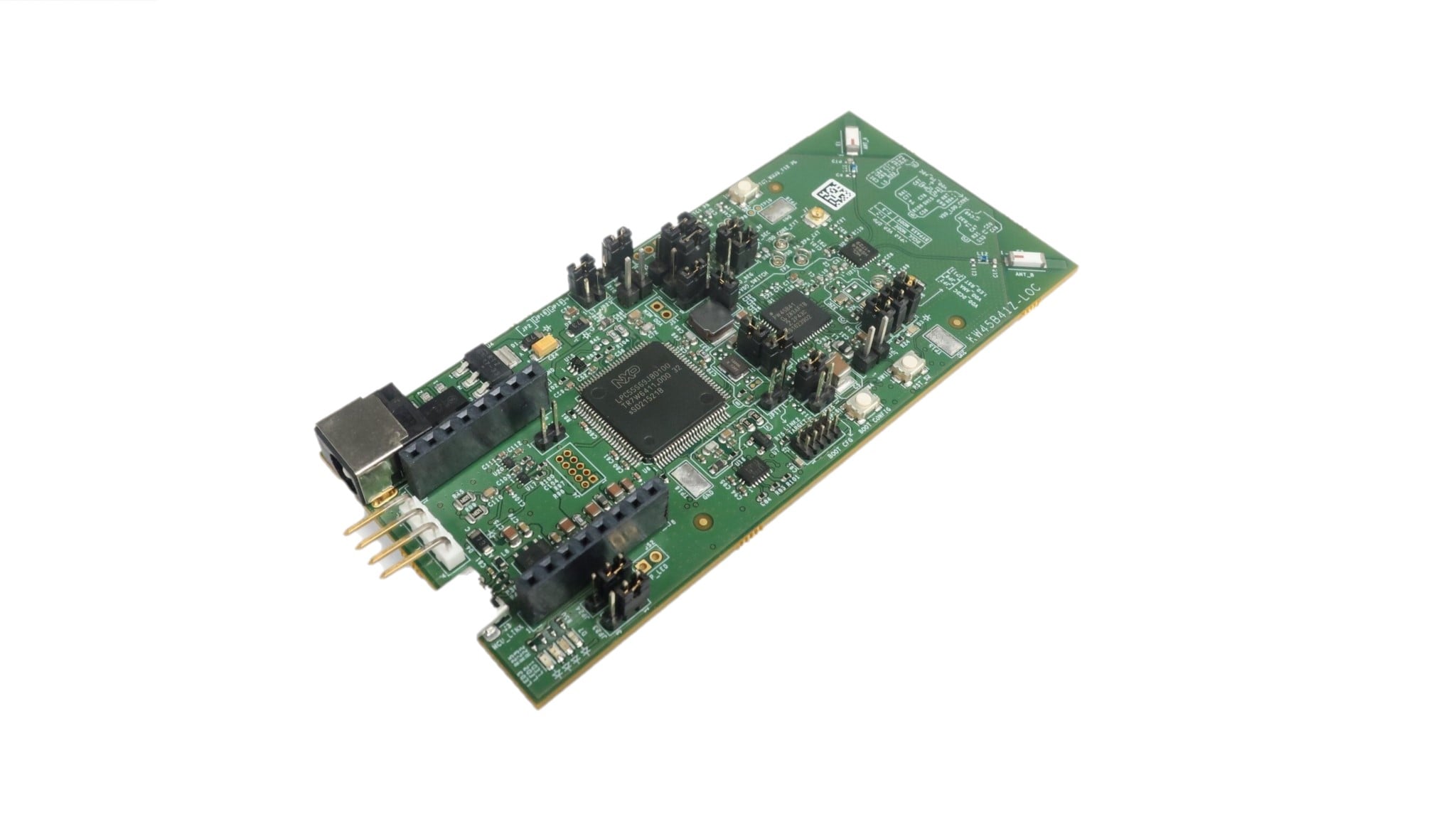

The KW45B41Z LOC is an evaluation kit for KW45 Automotive MCU with 2.4 GHz Bluetooth Low Energy and generic FSK wireless connectivity and CAN/LIN connectivity. This platform is dedicated to Narrow band Wireless Ranging and it will help you to prepare the implementation of your Bluetooth Channel Sounding solution. The KW45's highly sensitive, optimized 2.4 GHz radio features is featured with antenna diversity via RF switch.

Block Diagram

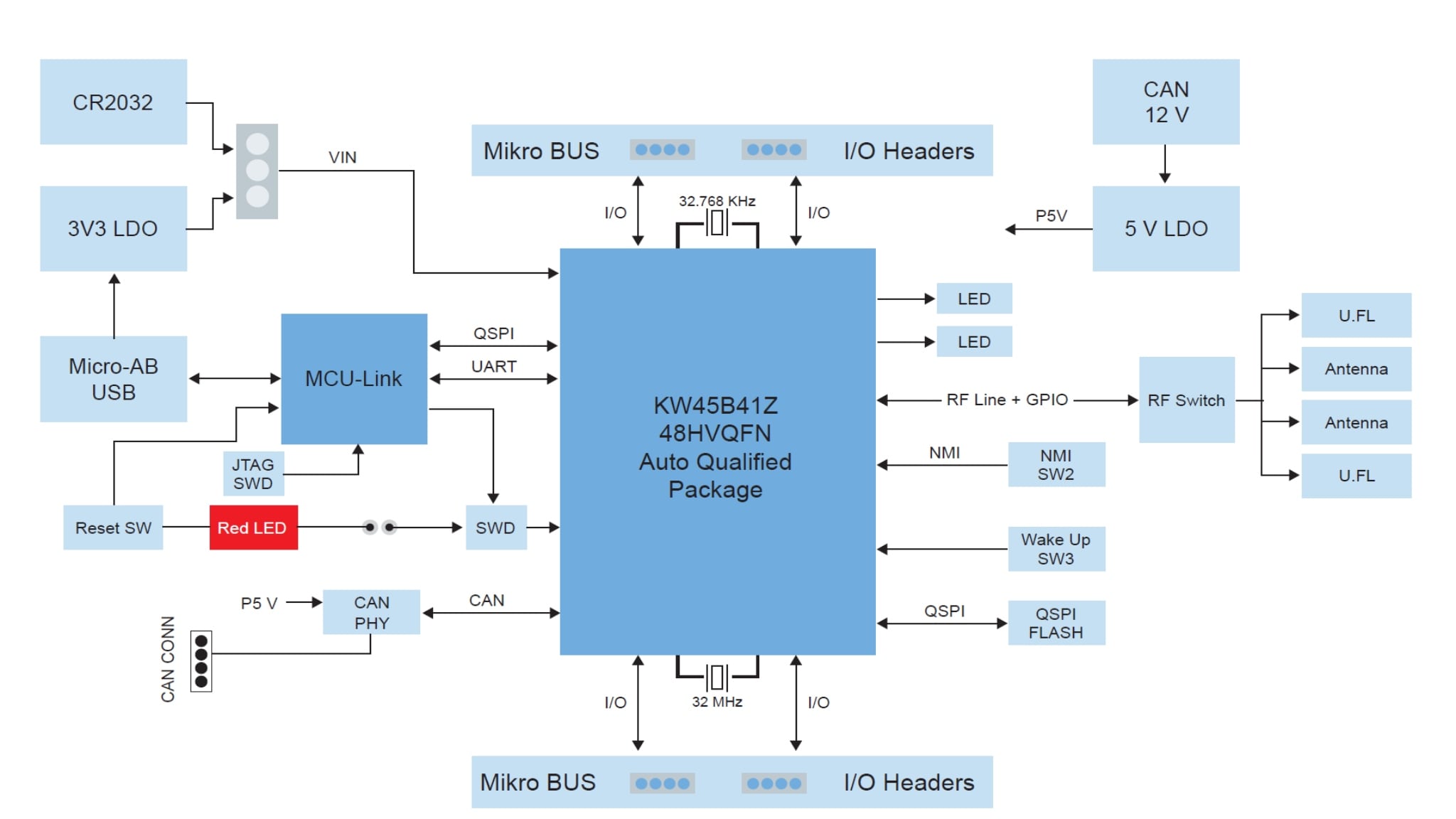

KW45B41Z-LOC Block Diagram

KW45B41Z-LOC Block Diagram
Get diagram PDF

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • KW45: KW45: 32-Bit Bluetooth® 5.3 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M33 Core

Features

Processor

  • KW45B41Z evaluation board includes KW45B41Z83AFTB, which can be configured as host or shield for connection to host processor

Connectivity

  • CAN connectivity support
  • LIN connectivity support
  • Arduino shield socket
  • mikroBUS socket

Debug

  • JTAG

Power Management

  • Supports all DC-DC configurations

Sensor

  • NXP FXLS8964AF 3D accelerometer (±2g/±4g/±8g)

Wireless

  • PCB inverted F-type antenna and SMA RF connector

Buy Options

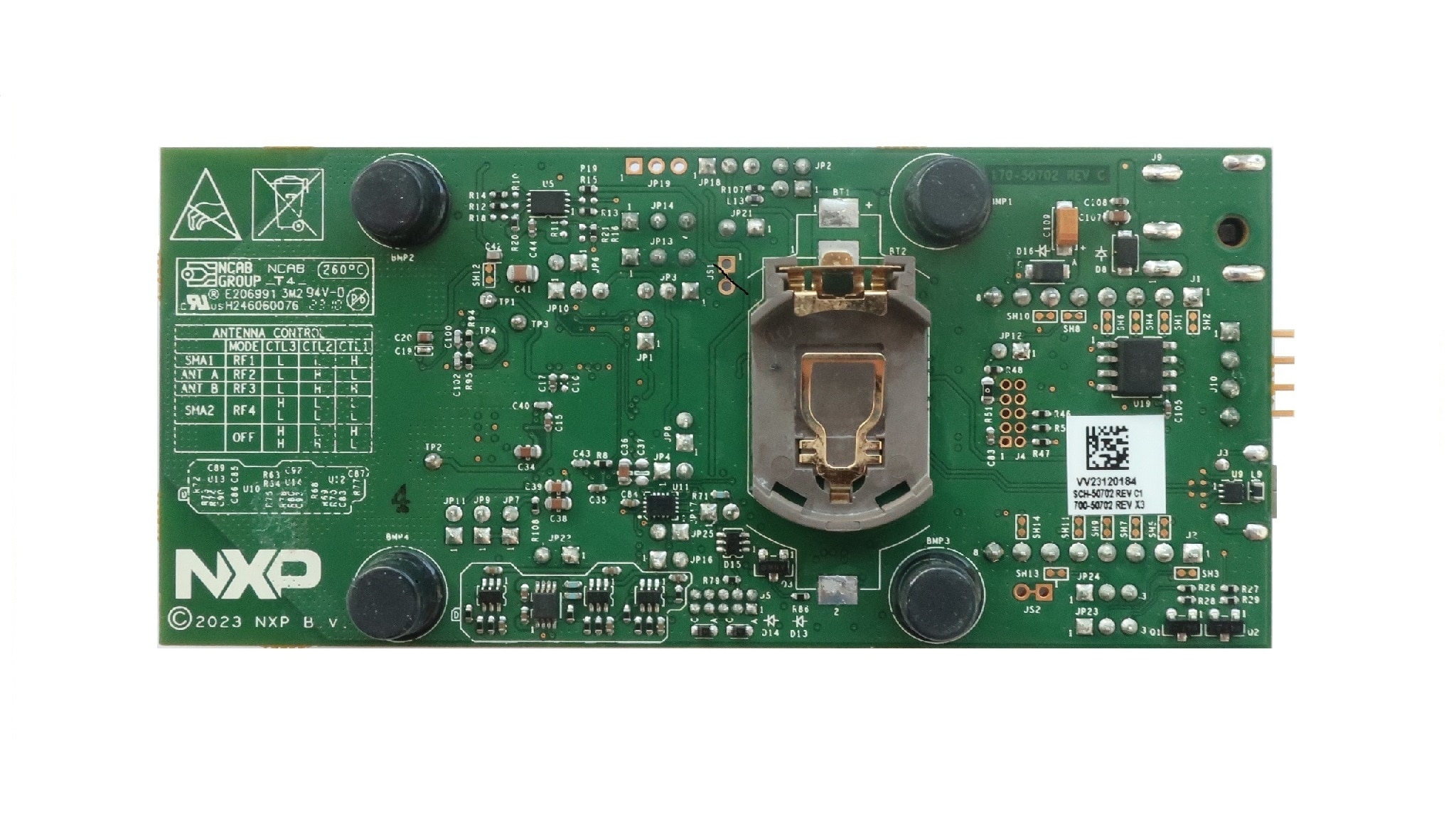

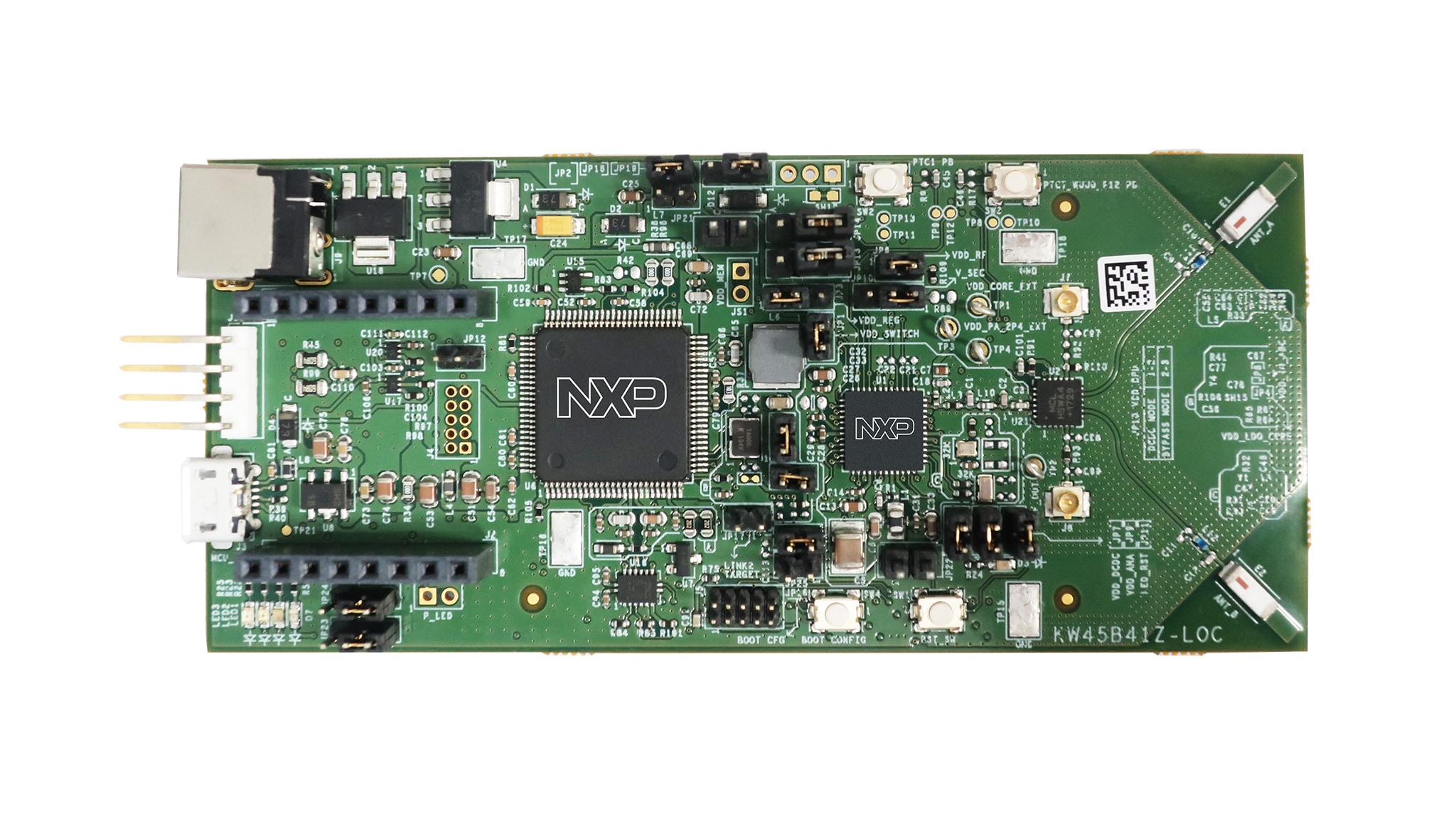

KW45B41Z-LOC-Image

Click to expand

  • KW45B41Z-LOC
    Active

  • KW45 Localization Board Reference Design.

  • $185.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 22
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
