Pioneered by NXP and Embedded Artists, the low-cost LPCXpresso target boards to get you up and running quickly with LPC microcontrollers. Designed for simple, rapid prototyping and evaluation, LPCXpresso development boards work with Eclipse/GNU-based tools from NXP and other common partner toolchains.

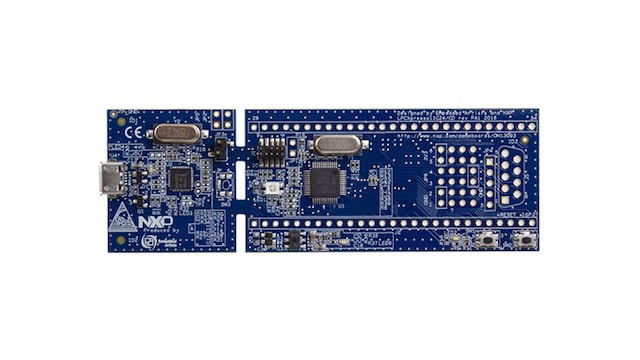

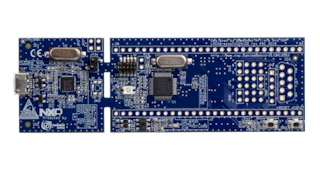

This LPCXpresso board is populated with the LPC11C24 to demonstrate and enable features of the LPC11Cxx devices that feature an on-board CAN transceiver. The LPCXpresso LPC11C24 combines the highly flexible peripheral set of the LPC11C24 and the low price point of the LPCXpresso board.

The board also includes an on-board, CMSIS-DAP compatible debug probe, as well as a connector for use with 3rd party debug probes.

The order code for this board is: OM13093

Design Files

Software

Product Details

Supported Devices

Processors and Microcontrollers

LPC1100 Arm Cortex-M0+/M0

LPC11C00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm^® Cortex^®-M0 Cores

Features

Microcontroller

LPC11C24 Cortex-M0-based microcontroller

Connectivity

10-pin SWD connector for use with an external debug probe
9-pin D-type connector pads for addition of CAN connector
LPCXpresso debug expansion connectors

Debug

Integrated CMSIS-DAP debug probe
Debug probe section of the board can be snapped off to reduce board size

Components

Reset and ISP boot mode buttons
Tricolor LED

Buy Options

Click to expand

OM13093
Active
LPCXpresso board for LPC11C24 with CMSIS DAP probe.
- LPCXpresso^™ LPC11C24 with CMSIS probe Development Board
- Card insert with links to installation information

$70.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 1
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
