LPCXpresso board for LPC11U24

OM13066 End of Life

Roll over image to zoom in

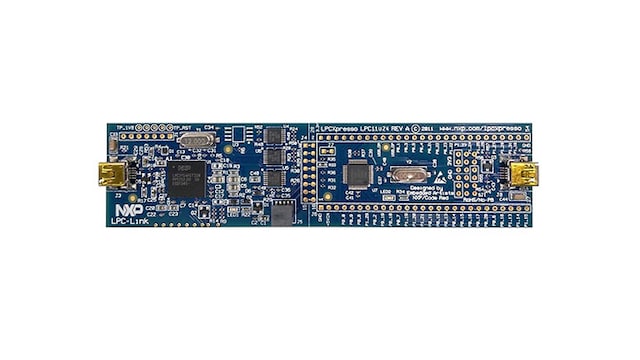

The LPCXpresso LPC11U24 board is an extended variant of the standard LPCXpresso V1 board, designed to allow evaluation of the LPC11U24FBD64 and make it as easy as possible to get started with your project.

LPCXpresso is a low-cost development platform available from NXP®, supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

Product Details

Features

Microcontroller

  • LPC3154 MCU

Debug

  • Can be configured to act as a standalone probe to allow debugging of an external board
  • LPC-Link

Support

  • LPCXpresso IDE out-of-the-box
  • Arm CMSIS-DAP
  • SEGGER J-Link firmware
  • LED, ISP and WAKE buttons

Buy Options

OM13066-Image

Click to expand

  • OM13066
    End of Life

  • LPCXpresso board for LPC11U24.

    • LPCXpresso LPC11U24 board
  • $21.85 USD
  • For a quantity of 1
Order from distributors

Design Files

Quick reference to our design files types.
Filters

2 design files

Software

Quick reference to our software types.

Filters

1 software file

Note: For better experience, software downloads are recommended on desktop.
