Evaluation Kit Hardware / Software Example for MC68HC908JW32

KITUSBSPIEVME
Active

Roll over image to zoom in

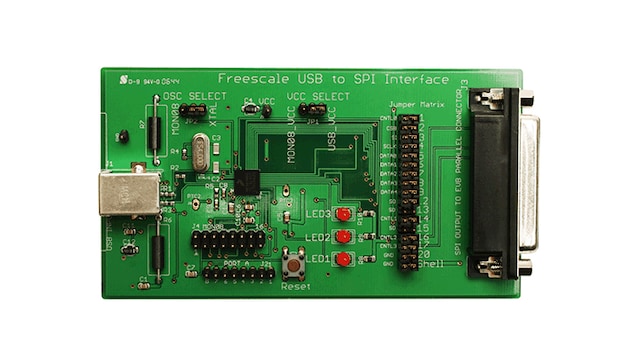

The KITUSBSPIEVME  EVALUATION KIT is a working hardware/software example that allows a user to become familiar with the MC68HC908JW32 by means of an actual useful application, a USB to SPI and USB to parallel converter. The main function provided by this Demo Board is to allow a PC, that may not have a parallel port, to communicate with other NXP® Evaluation Boards, via a USB port. The USB port is a standard feature on almost every new PC. This kit makes use of the MC68HC908JW32’s built-in USB, SPI and parallel ports.

Product Details

Supported Devices

Processors and Microcontrollers

8-bit Legacy MCUs

Features

Microcontroller

  • MC68HC908JW32 MCU is available with a variety of memory sizes and types, modules, and package types

Connectivity

  • USB to SPI converter
  • USB to parallel converter
  • PCB contains a USB type B connector (female)

Key Features

  • Reprogramming capability for the MC68HC908JW32, through the USB port, using SPIGen v7.0 or later or through the onboard MON08 connector port

Tools and OS Support

  • Uses Our PC-based SPIGen software

Buy Options

KITUSBSPIEVME-Image

Click to expand

  • KITUSBSPIEVME
    Active

  • Evaluation Kit - USB to SPI Interface BD featuring the MC68HC908JW32.

    • KITUSBSPIEVME Hardware
    • Cable, USB A-M to B-M
    • Quick Reference Guide
  • $103.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
